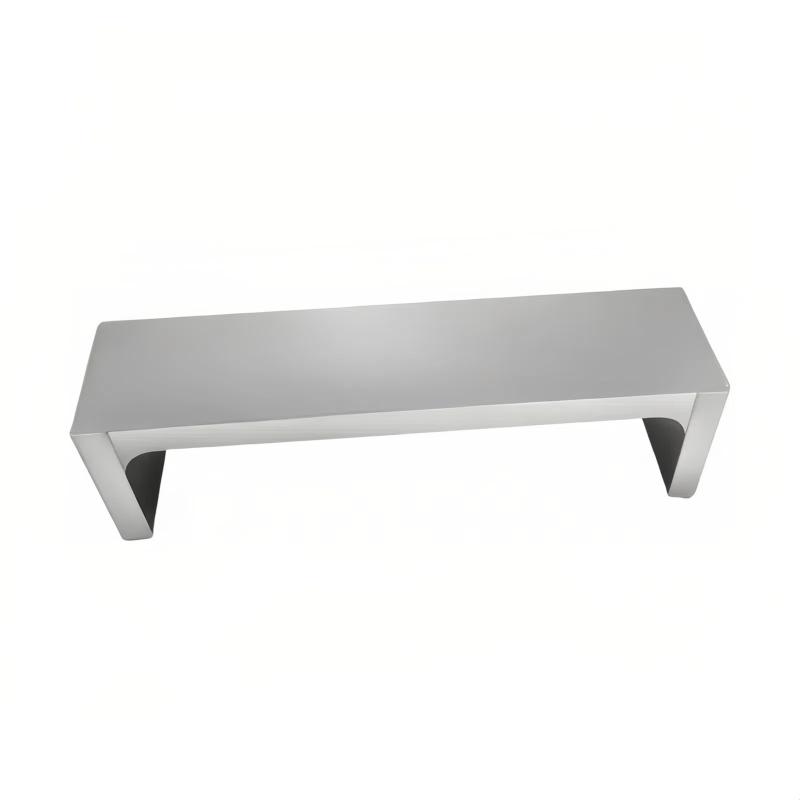

HuiNuo QTG 100/150μm Double Sided Applicator film accuracy +/- 2μm Spreader width 160mm
QTG 100/150μm
HuiNuo QTG 100/150μm Double Sided ApplicatorSPEC
HuiNuo QTG 100/150μm Double Sided ApplicatorDetails
HuiNuo QTG 100/150μm Double Sided ApplicatorPacking list
- SKU
- NB050658
- type
- double sided
- wet film thickness
- 100/150μm
- Spreader Width
- 160mm
- accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
Product Introduction
The QTG 100/150μm double-sided paint film preparer has a coating thickness of 100μm、150μm, 2 coating surfaces, coating width of 80mm, coating accuracy ± 2μm.
Wet film preparer is alaboratoryManual applicator, available in different coating widths, made of high carbon chromium wear-resistant and anti-corrosion stainless steel, this modelThe preparer uses imported coordinates to detect the dimensional accuracy before leaving the factory to ensure the accuracy of the coating film. SZQ series preparers have:I-shape, frame, square and other shapes are available, and can be divided into single-sided, double-sided, four-sided, and eight-sided different preparers according to the thickness of the coating film. Wet film preparer is suitable for glue, coatingpaintInk, polymer materials and other films can be equipped with coating machines for automatic film scraping. Beibeichao provides customized services for preparer specifications.
Product features:
1. 9Cr18Mo high-hardness stainless steel, with good wear resistance and corrosion resistance, hardness value up to 50~55HRC.
2. The coating accuracy is ±2μm
3. The surface is smooth, the style is diverse, the application range is wide, and customized specifications are supported
4. Adopt imported three-coordinate testing accuracy, bring factory test report, and stand up to measurement
Real shot of the detection accuracy process
Every wet film preparer uses this millionImported three-coordinate testing equipment for accuracy testing, and generate a test report from the test result data to be attached to the corresponding product, can withstand measurement,Let users buy with confidence.
Preparer series parameter table
| name | Specification mm | Wet film thickness μm |
| Single-sided prep | The total length is 80, and the coating width is 50 and 75 | 50、75、100、125、150、175、200 |
| Duplex prep | Total length 100, coating width 80 | 25、50、75、100、150、175、200、300、400 |
| Frame preparer | Total length 90, coating width 80 | 30、50、60、90、120、150、200 |
| Eight-sided preparer | Total length 90, coating width 68 | 50、75、100、125、150、175、200 |
| Eight-sided preparer | Total length 100, coating width 80 | |
| Square preparer | 25x25, coating width 16 | 37、50、75、100 |
| Square preparer | 50x50, coating width 41 | 50、100 |
| Standard four-sided preparer | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided preparer | Total length 190, coating width 160 |
