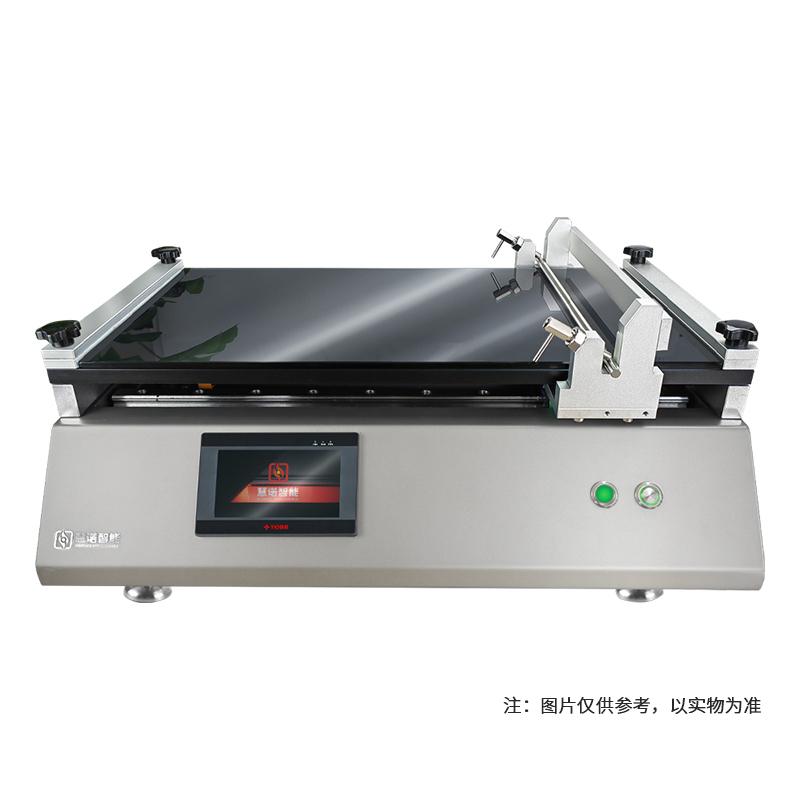

HuiNuo TM1000Pro/500g Automatic Film Applicator bar Coater High Accuracy film applicator
TM1000pro/500g
HuiNuo TM1000pro/500g Automatic Film ApplicatorSPEC
HuiNuo TM1000pro/500g Automatic Film ApplicatorDetails
HuiNuo TM1000pro/500g Automatic Film ApplicatorPacking list
- SKU
- NB050661
- coating method
- Rod
- coating method
- Rod
- coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Substrate clamping method
- fixture
- Coating table material
- Aluminum alloy/Glass table (if the specified material is confirmed with customer service)
- Coating table material
- Aluminum alloy/Glass table (if the specified material is confirmed with customer service)
- Coating table size
- 600*300mm
- Coating table size
- 600*300mm
- effective coating area
- 400 * 300Mm (can be customized)
- effective coating area
- 400 * 300Mm (can be customized)
- Film Film thickness
- Controlled by bar with High Accuracy import bar
- Film Film thickness
- Controlled by bar with High Accuracy import bar
- meyer rod coating accuracy
- ±0.001mm
- meyer rod coating accuracy
- ±0.001mm
- Load at both ends of the bar
- Each 500g weight
- Load at both ends of the bar
- Each 500g weight
- Drive motor
- Servo motor
- Drive motor
- Servo motor
- power
- 600w
- power
- 600w
- operating language
- Chinese (can be customized in English)
- operating language
- Chinese (can be customized in English)
- display screen
- Color LCD Touchscreen
- display screen
- Color LCD Touchscreen
- Host power supply
- 220V/50HZ (can be customized 110V/60HZ)
- Host power supply
- 220V/50HZ (can be customized 110V/60HZ)
- dimensions
- 658*438*205mm
- dimensions
- 658*438*205mm
- weight
- 39.7kg
- weight
- 39.7kg
- optional feature
- Drawdown blade, heating, Vacuum chuck
- optional feature
- Drawdown blade, heating, Vacuum chuck
product description
The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a basic wire bar coating machine. It adopts a new wire bar installation method and has speed control and coating length adjustment functions. It is suitable for high-precision automatic coating in laboratories, and in university research institutes and new materials. , lithium battery and other laboratories for film production and proofing.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.
Features
1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
3) Aluminum alloy hard oxidation surface treated coated base plate, wear-resistant and flat, comes with flatness accuracy calibration certificate
4) Touch screen control panel, easy to operate
5) Coating length and coating speed can be adjusted freely
