Specifications
| coating method | Bar + drawdown blade |
| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 1240*630mm |
| effective coating area | 1000 * 600Mm (can be customized) |
| meyer rod coating thickness range | Film thickness is different, with High Accuracy bar |
| meyer rod coating accuracy | ±0.003mm |
| Blade Coating Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Blade Coating Width | 600mm |
| Blade Coating accuracy | ±0.003mm |
| Vacuum Area | 1080 * 560Mm (can be customized) |
| Vacuum aperture diameter | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuumpump pumping rate | 5.4m3/h |
| Ultimate vacuum degree | 50KPa |
| Vacuumpump power | 180W |
| Vacuumpump weight | 7.1kg |
| Drive motor | Servo motor |
| power | 600w |
| operating language | Chinese (can be customized in English) |
| display screen | Color LCD Touchscreen |
| Host power supply | 220V/50HZ (can be customized 110V/60HZ) |
| dimensions | 1260*740*430mm |
Packing list

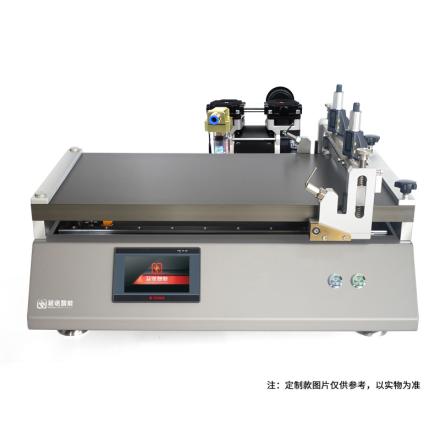

Automatic Film Applicator x1, bar x1, drawdown blade x1, Vacuumpump x1, manual x1, certificate x1
After-sales instructions
Warranty days: 760 days
