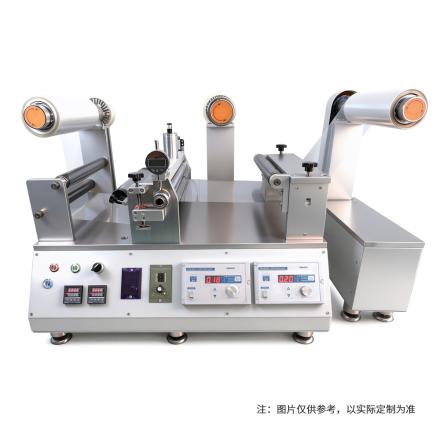

HuiNuo JTM-02/300dh Small continuous coater (comma drawdown blade + heat curing) Specifications
Search
Brand：HuiNuo
Model：JTM-02/300dh
Name：Small continuous coater (comma drawdown blade + heat curing)
Specifications
| coating method | continuous scratch coating |
| Effective application width | ≤ 300mm, adjustable through baffle |
| coating method | scraping |
| Drawdown blade type | Comma drawdown blade |
| Spreader roller diameter | Ф50mm |
| Spreader thickness range | 0.01mm~2mm |
| Minimum gluing thickness | 0.01Mm (Depending on Stock, Reference Material Requirements) |
| Coating surface density | ≤ +/- 1.5% (including substrate, excluding edge anomalies) |
| coating speed | 2~ 4.5M/min forward and reverse stepless transmission |
| Film accuracy | +/- 0.003Mm (Depending on Stock, Reference Material Requirements) |
| Regulator resolution | 0.001mm |
| Indication Display mode | digital display |
| Heating device | trough heating |
| Heating mode | Heating rod |
| Temperature range | RT+~200℃ |
| box volume | About 0.5L |
| Drying area | Length 2000mm * Width 300mm |
| Drying Temperature range | RT+~200℃ |
| Width of guide roller | 300mm |
| substrate width | Max.300mm |
| Back roller diameter | Ф150mm |
| Reel diameter | 3 inches. |
| rewinding diameter | Max.Ф450mm |
| Applicable materials | Lithium battery, glue, silicone oil, UV, inks, cataplasm, hot-melt adhesive, gel, plaster, Stock, etc |
| Applicable substrate | Paper, film, aluminum foil, plastic, non-woven fabric, etc |
| Machine Power | 1050W |
| Host power supply | AC220V (single phase) 50Hz |
| Machine size | 1051 * 635 * 600mm (subject to actual customization) |
| Machine weight | About 120kg (subject to actual customization) |
Packing list
Equipment machine × 1, dial meter x2, power cord × 1, heating module x1, warranty card & manual x1, certificate of conformity x1
After-sales instructions
Warranty days: 730 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50674/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
