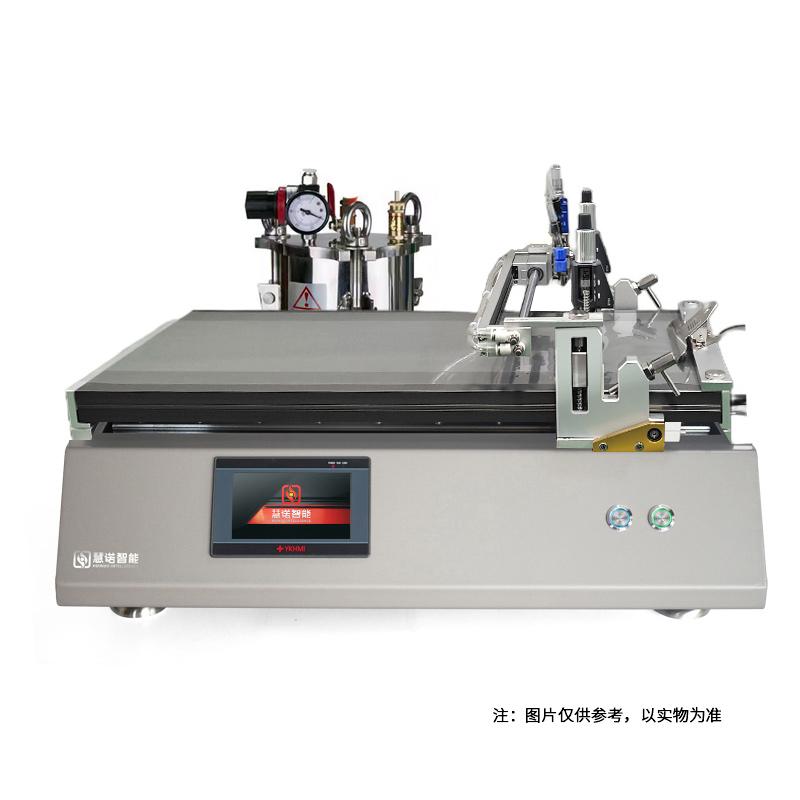

HuiNuo TM3200proAF/02 Automatic Film Applicator bar drawdown blade coater effective area 60 * 40cm
TM3200proAF/02
HuiNuo TM3200proAF/02 Automatic Film Applicator (with automatic feeding)SPEC
HuiNuo TM3200proAF/02 Automatic Film Applicator (with automatic feeding)Details
HuiNuo TM3200proAF/02 Automatic Film Applicator (with automatic feeding)Packing list
- SKU
- NB050680
- coating method
- Bar + drawdown blade
- coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 840*430mm
- effective coating area
- 600 * 400Mm (can be customized)
- meyer rod coating thickness range
- Film thickness is different, with High Accuracy bar
- meyer rod coating accuracy
- ±0.003mm
- Blade Coating Film thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Blade Coating Width
- 400mm
- Blade Coating accuracy
- ±0.003mm
- Vacuum Area
- 680 * 360Mm (can be customized)
- Vacuum aperture diameter
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Vacuumpump pumping rate
- 5.4m3/h
- Ultimate vacuum degree
- 50KPa
- Vacuumpump power
- 180W
- Vacuumpump weight
- 7.1kg
- Drive motor
- Servo motor
- customization function
- Automatic feeding system
- Feeding principle
- Pneumatic pressure feeding
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2-150mm/s
- spit volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Feeding system air source
- Customer-provided compressed air, 0.6Mpa
- power
- 600w
- operating language
- Chinese (can be customized in English)
- display screen
- Color LCD Touchscreen
- Host power supply
- 220V/50HZ (can be customized 110V/60HZ)
- dimensions
- 860 * 540 * 430Mm (subject to actual customization.)

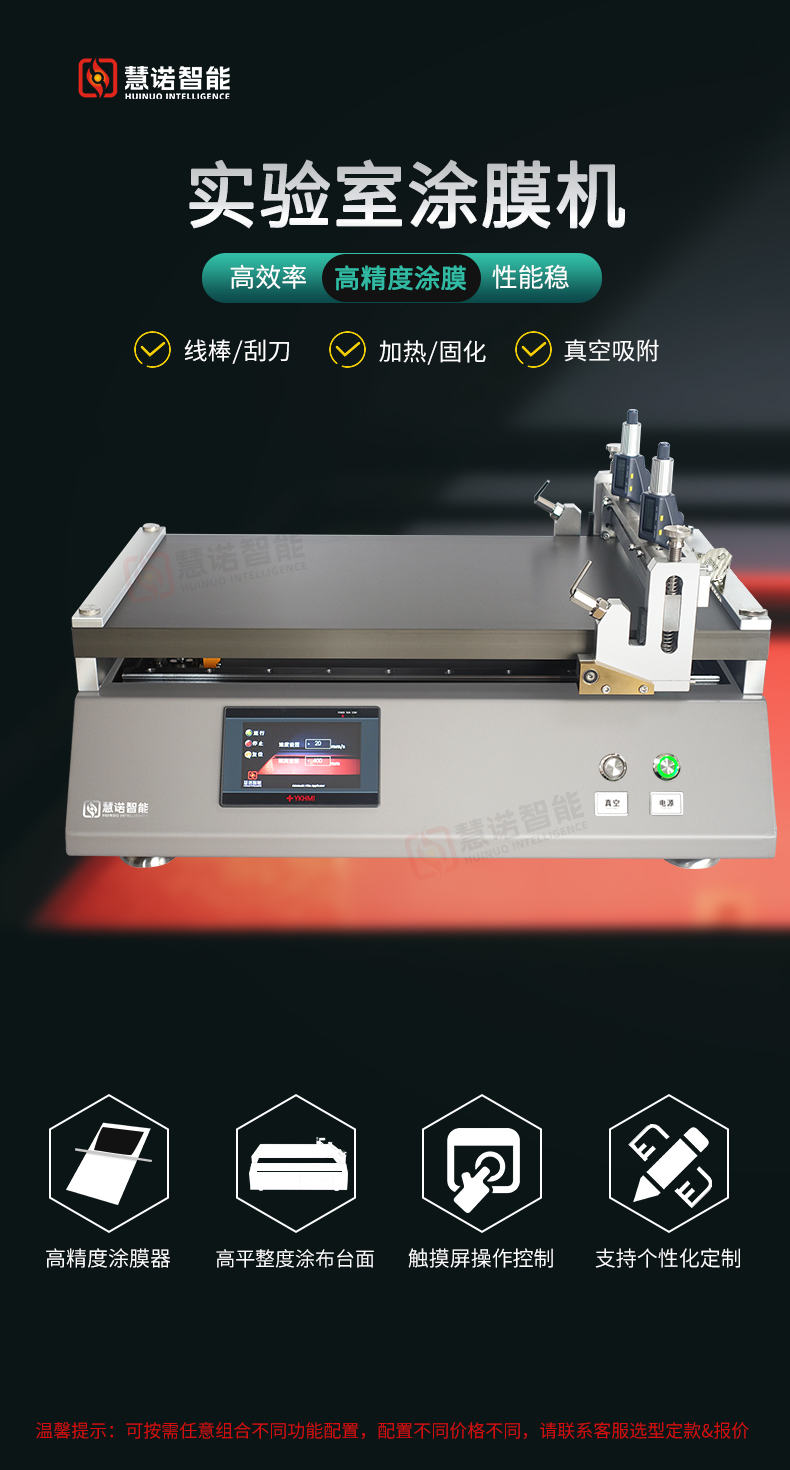

Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new line rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, hot melt glue and other laboratories for film proofing.
Product Use:

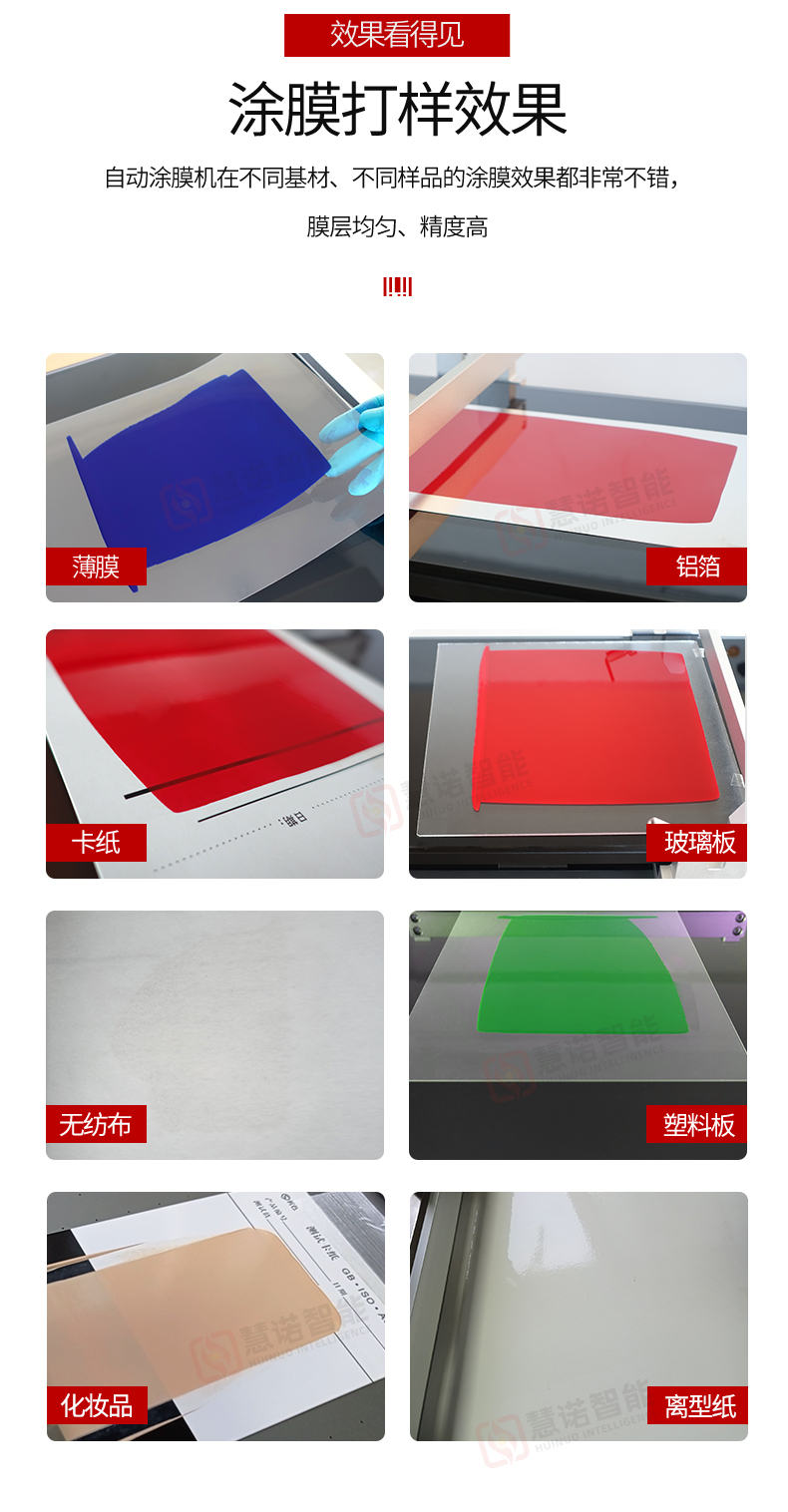

The coating machine is suitable for coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboard, aluminum foil and copper foil.

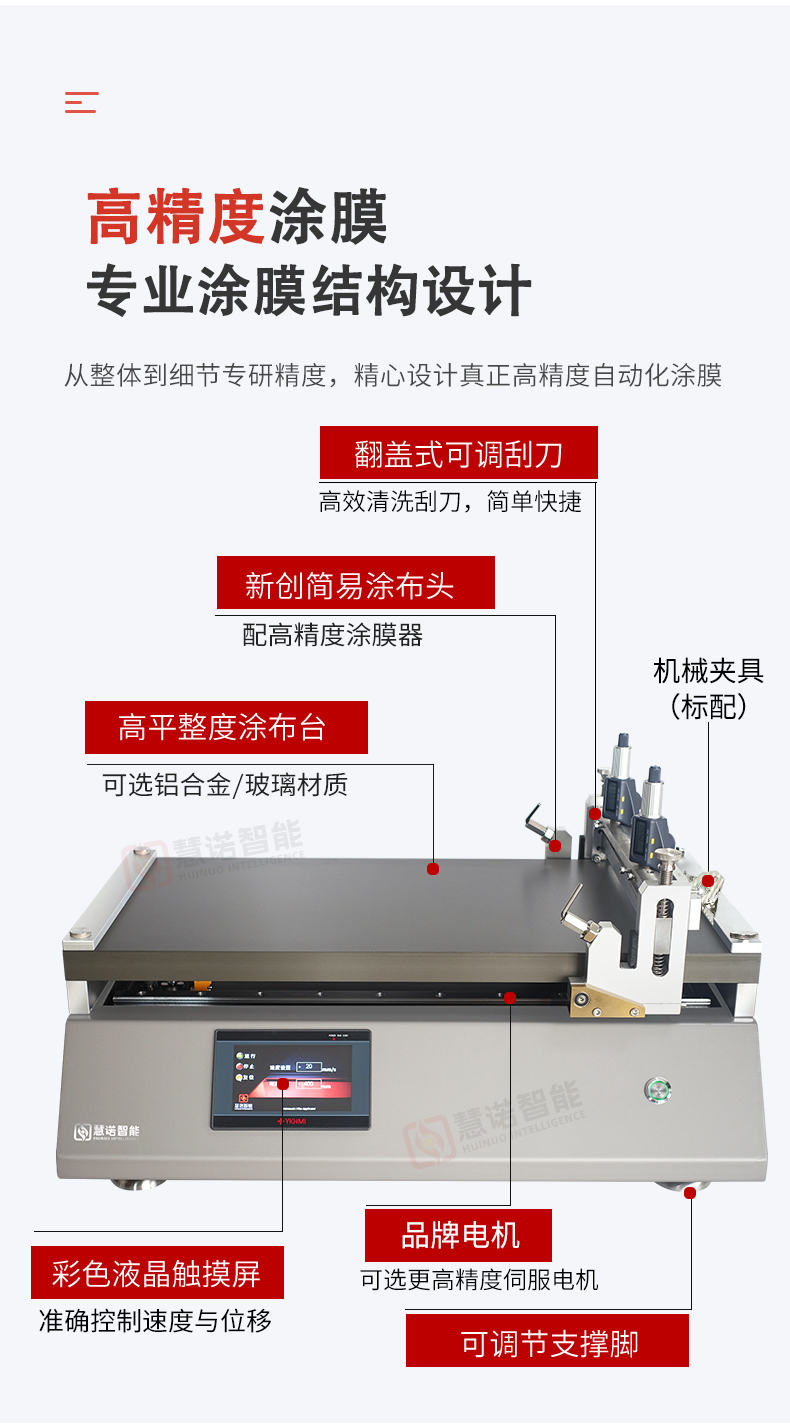

Product features:

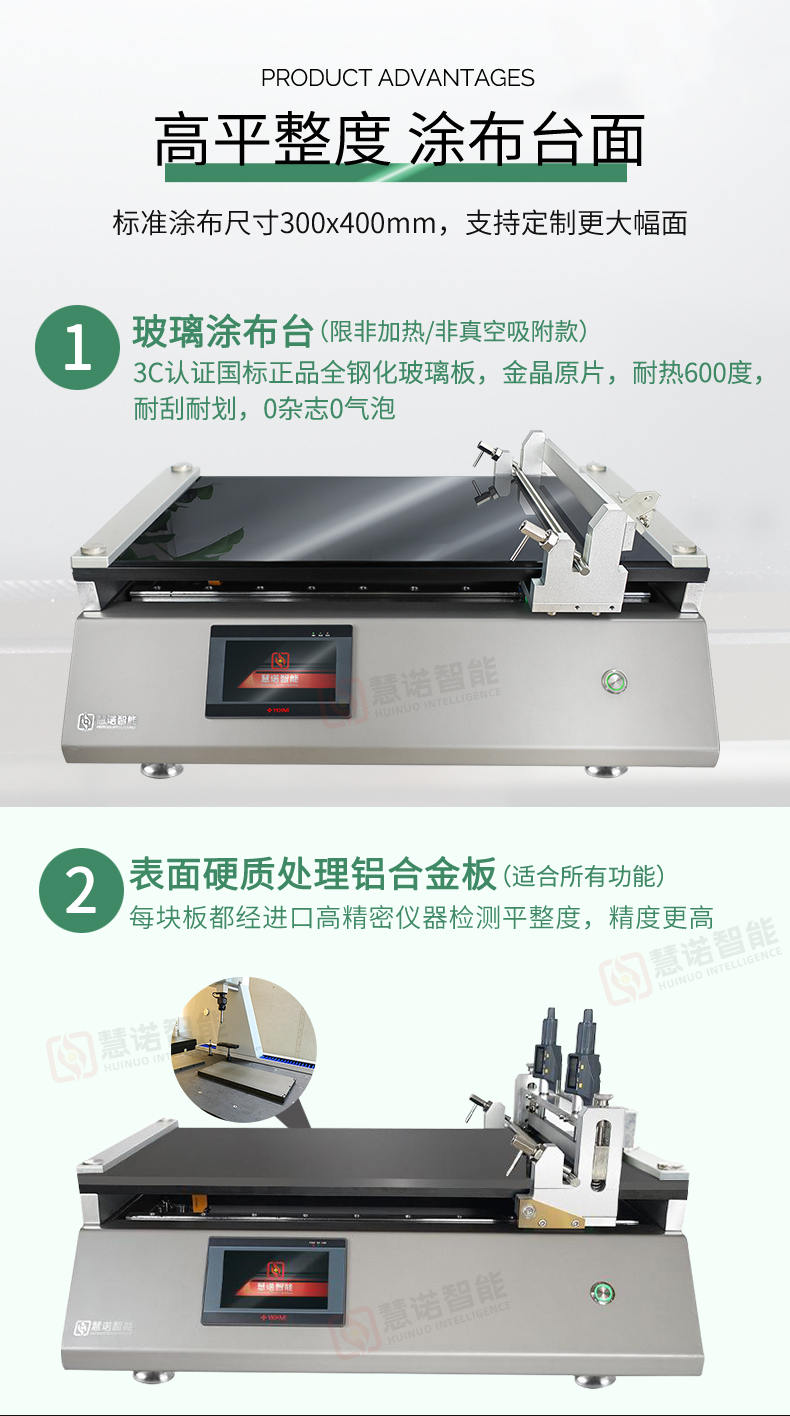

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments
2) Big brand differential adjuster, high film thickness control accuracy

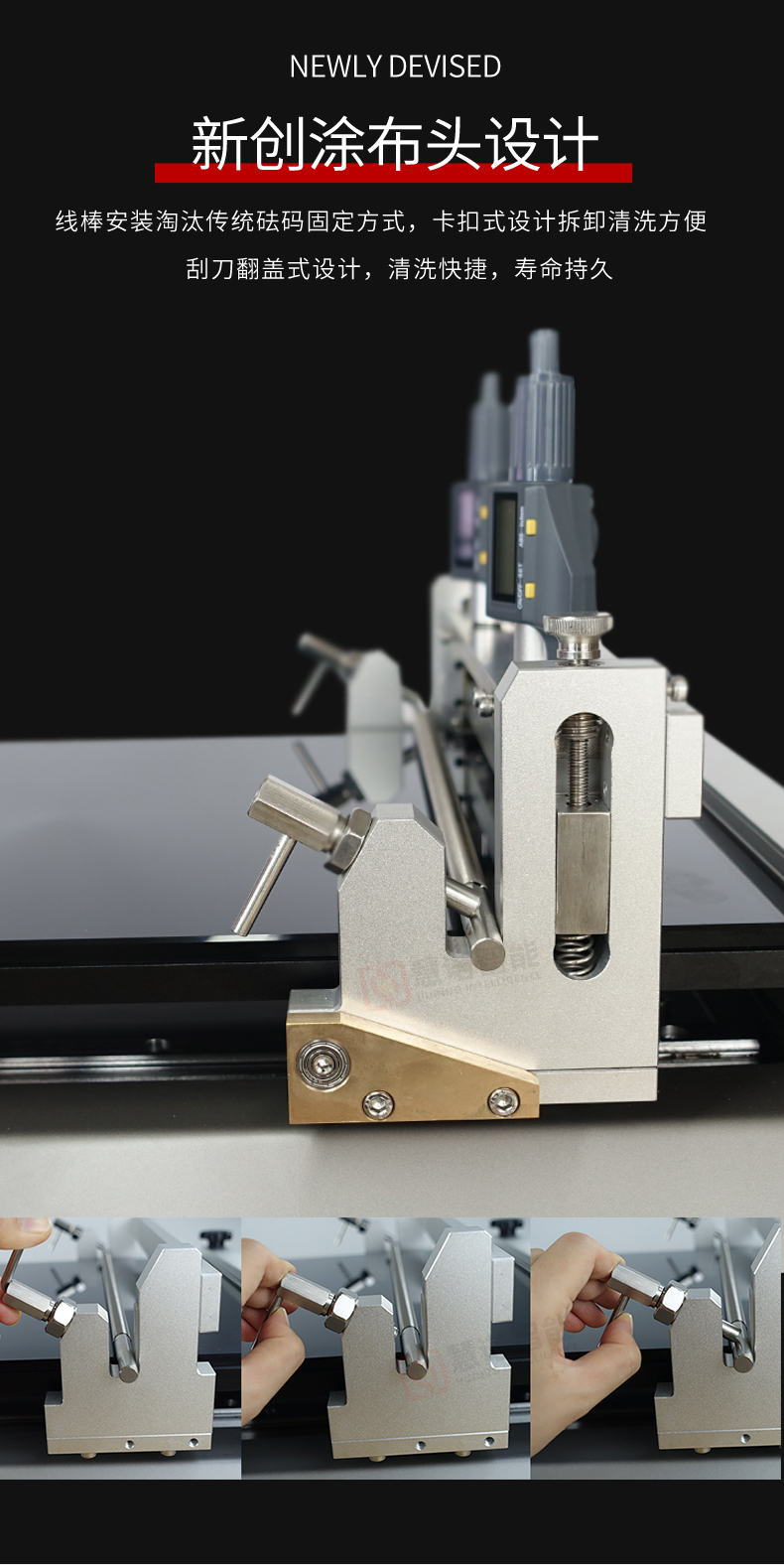

3) Clamshell scraper coating head, easy to clean

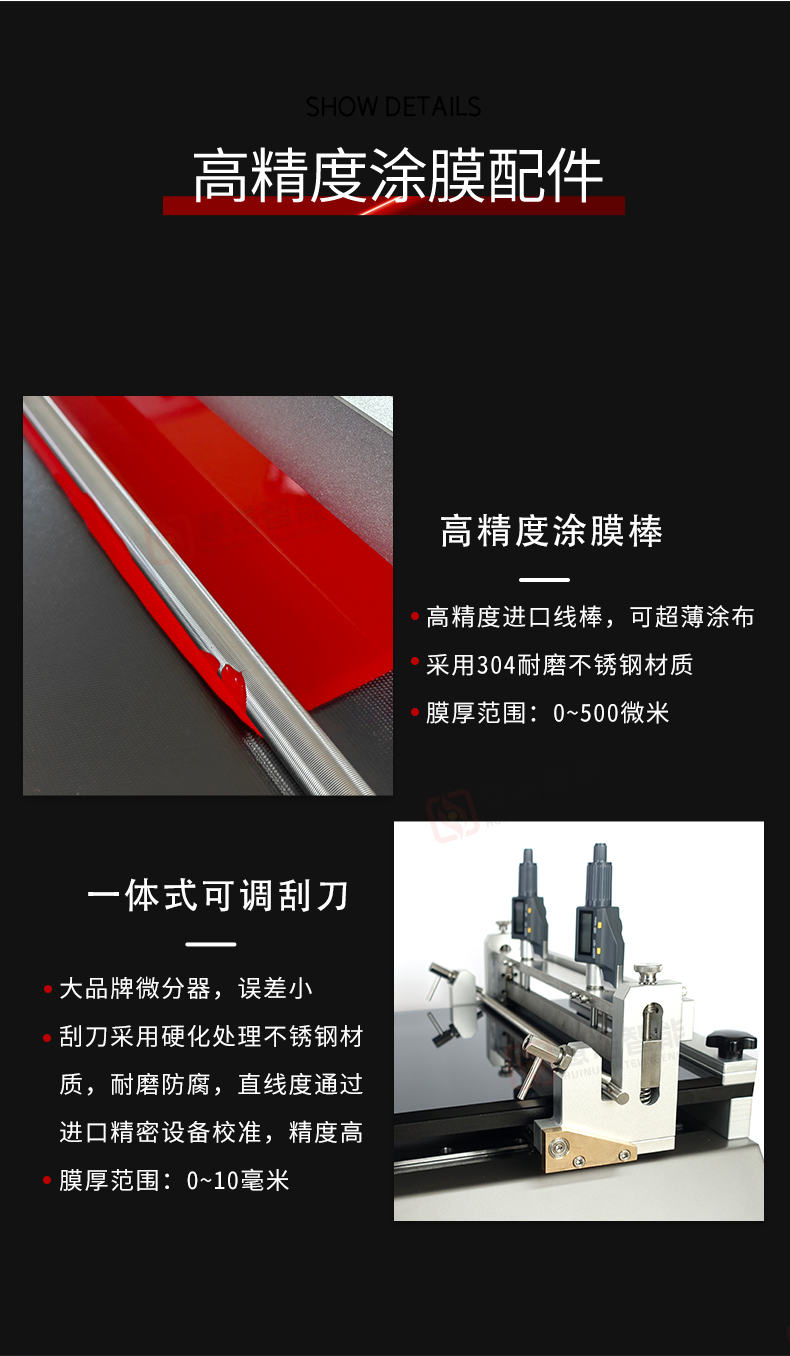

4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate

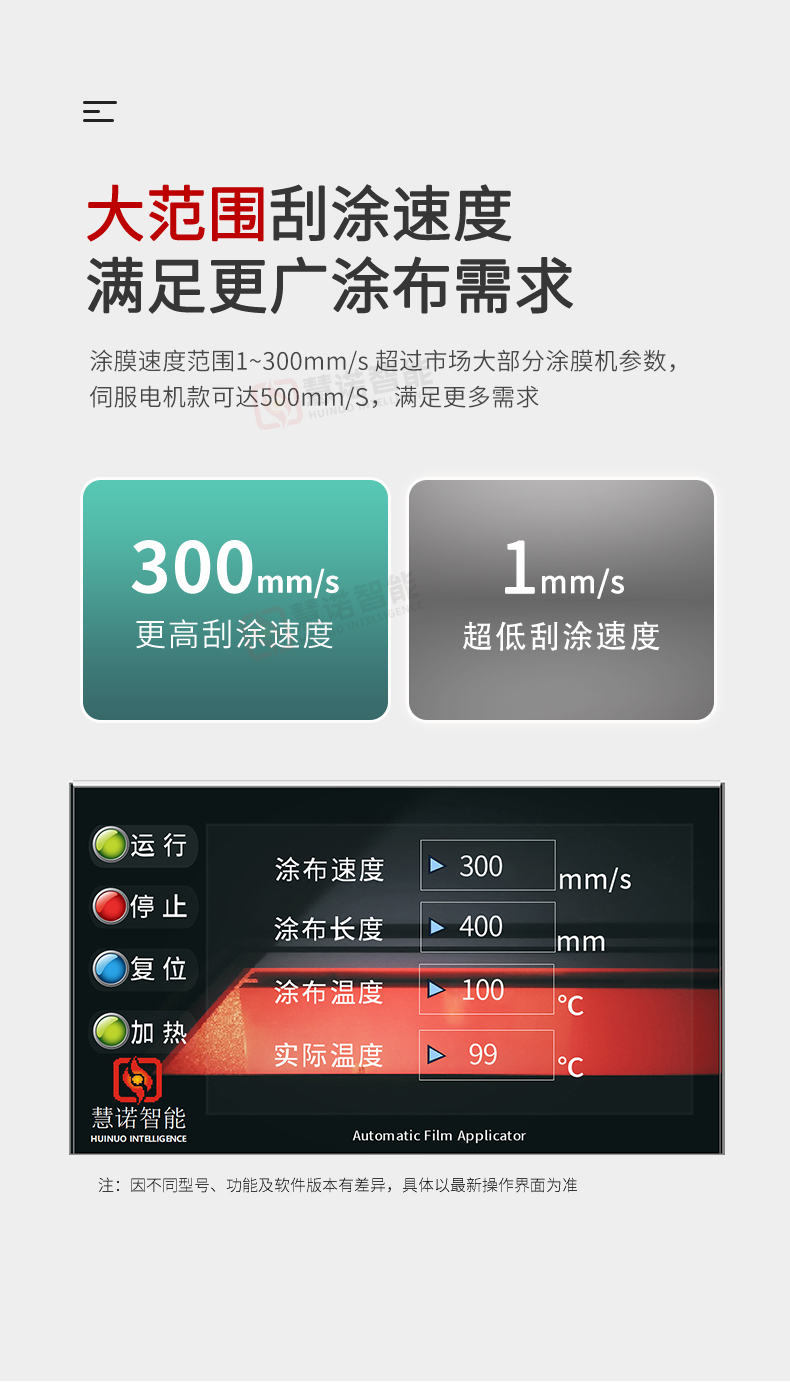

6) The coating length and coating speed can be adjusted freely

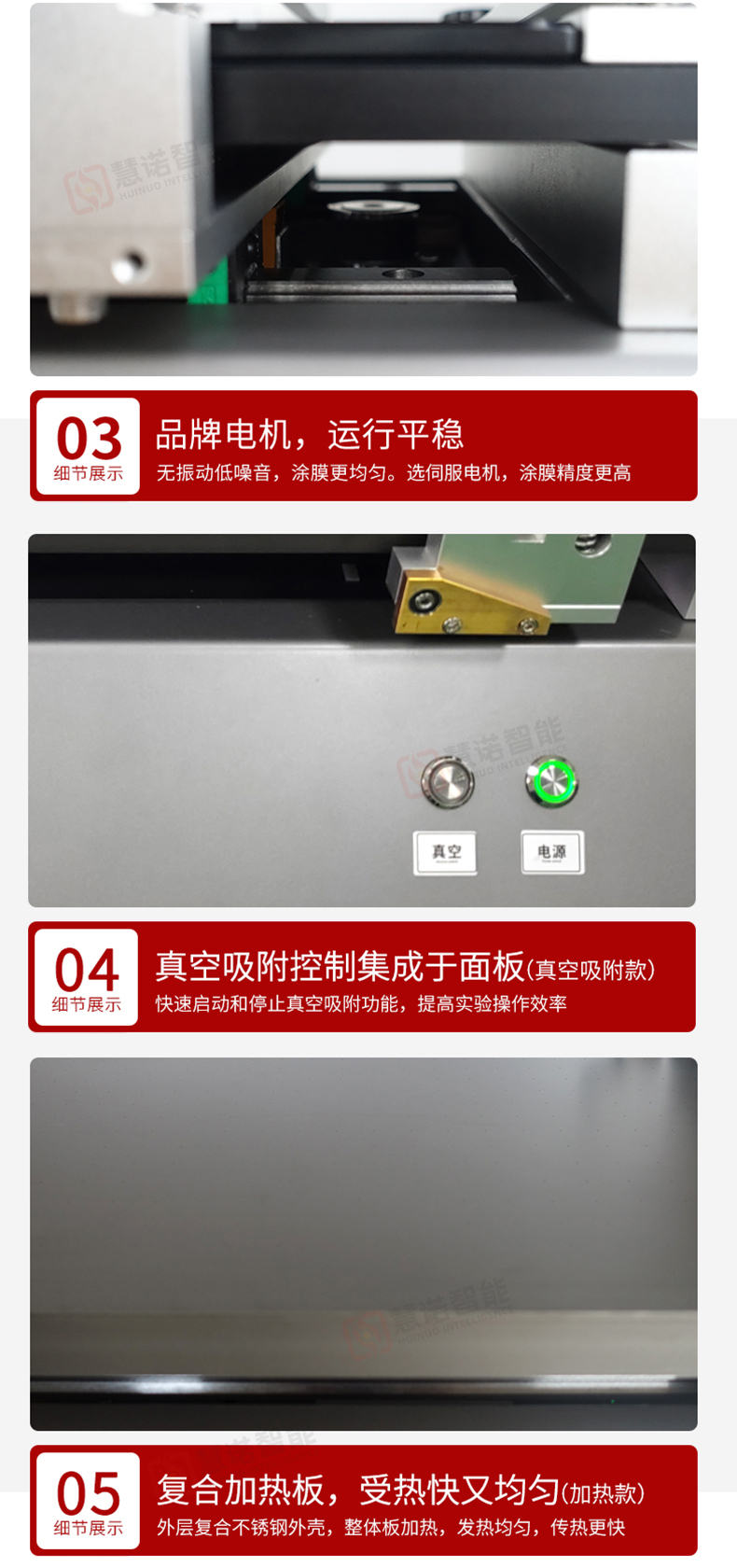

7) With vacuum adsorption function, it is suitable for coating soft substrates such as films
