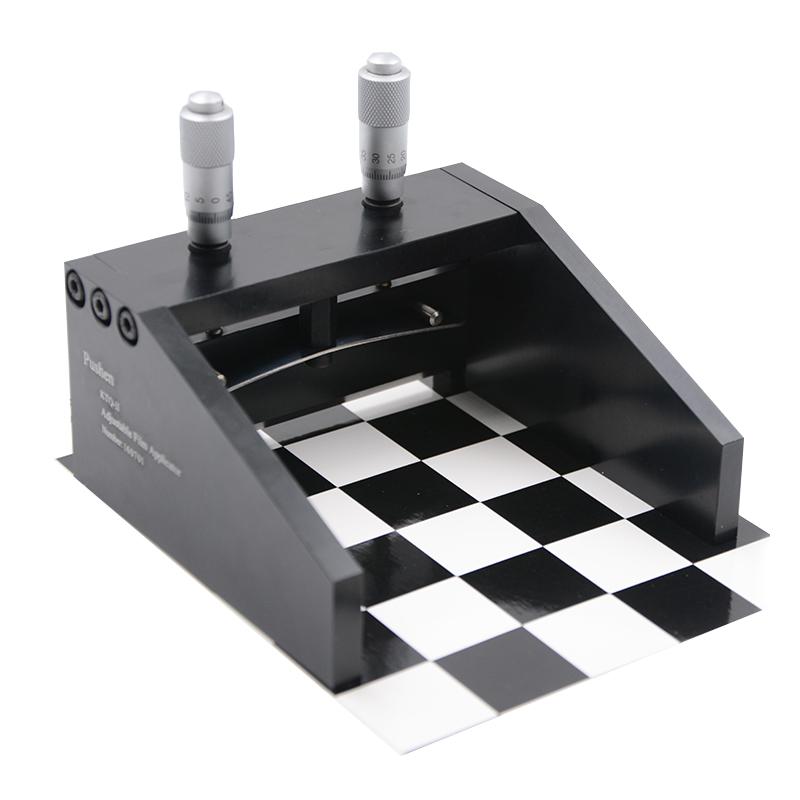

Factory Direct KTQ-100mm Micrometer Film Applicator Wet Ink Applicator 100mm

KTQ-100mm

Micrometer Film Applicator

Aluminum alloy material, adjustable film Film thickness range of 0~ 3500 μ m, Graduation 10 μ m, suitable for completely flat plane Spreader.

Product Introduction

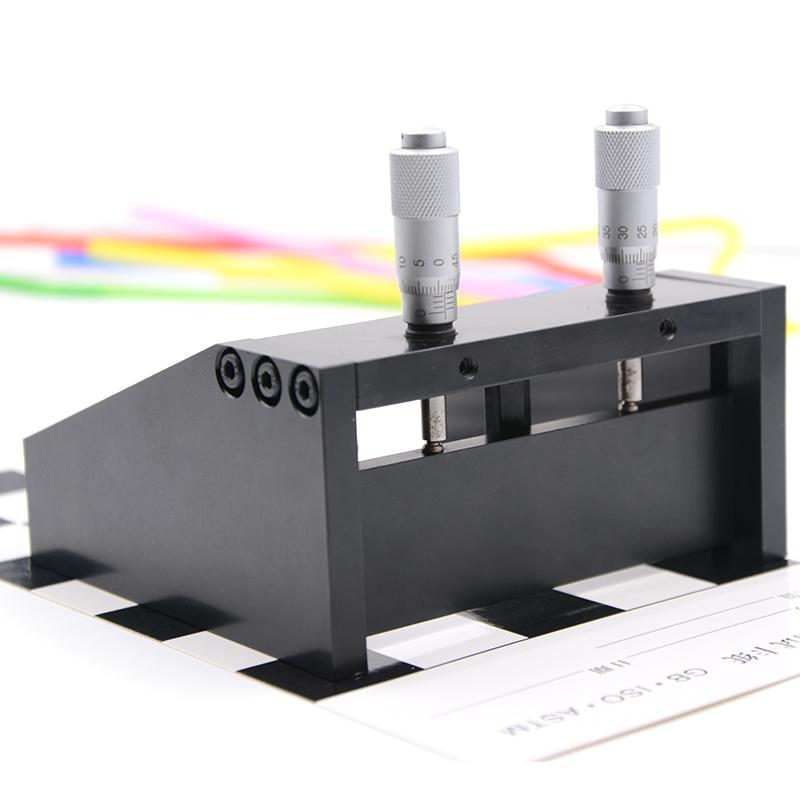

KTQ-II/25202 Adjustable ApplicatorIt is to adjust the scraper control gap, i.e. the thickness of the coating film, by adjusting the differentiator on the applicator. The adjustable applicator is suitable for completely flat flat coating, with a coating range of 0~3500 microns, a coating width of 100mm, and an accuracy of ±2μm in adjusting the gap of the scraper.

Product features:

1、KTQ-II/25202 Adjustable ApplicatorWith extended edges to retract paint during the coating process.

2. The film applicator can be used to manually apply high-concentration or high-viscosity coating inks on solid and flat substrates.

3. The coating range of the Pushen adjustable film applicator is 0~3500 microns, and there are a variety of film widths to choose from.

4. By adjusting the gap, the need for various fixed gap applicators can be reduced.

How to do it

1) Place the KTQ-II/25202 adjustable applicator on a completely flat test substrate surface. Adjust the squeegee to the desired clearance (should be twice the thickness of the wet film)

2) In the front section of the coating knife, pour a small amount of test sample between the end plates. At a slow and uniform speed, about 1~2cm/s.

3) Move the applicator over the substrate surface until the liquid is fully coated and any remaining liquid has been removed from the end of the coating path.

4) When coating, the wet film thickness gauge can be used to measure and adjust the gap until the desired wet film thickness is reached.

Note: The exact ratio of wet film thickness to any coating knife gap depends on the material used, the viscosity and texture of the liquid, the force applied on the coating knife, the coating speed, and the geometry of the coating edges.

Maintenance and servicing of the applicator

1）KTQ-II/25202 Adjustable ApplicatorImmediately after use, wash with an appropriate solvent.

2) The two ends of the scraper move in the groove, and the slot needs to be kept without testing the sample material at any time.

3) Differentiators occasionally need to be repositioned to correct for wear or misalignment. The correction differentiator can be adjusted by loosening (rather than removing) the hidden set screw on each differentiator to lower or raise the component.

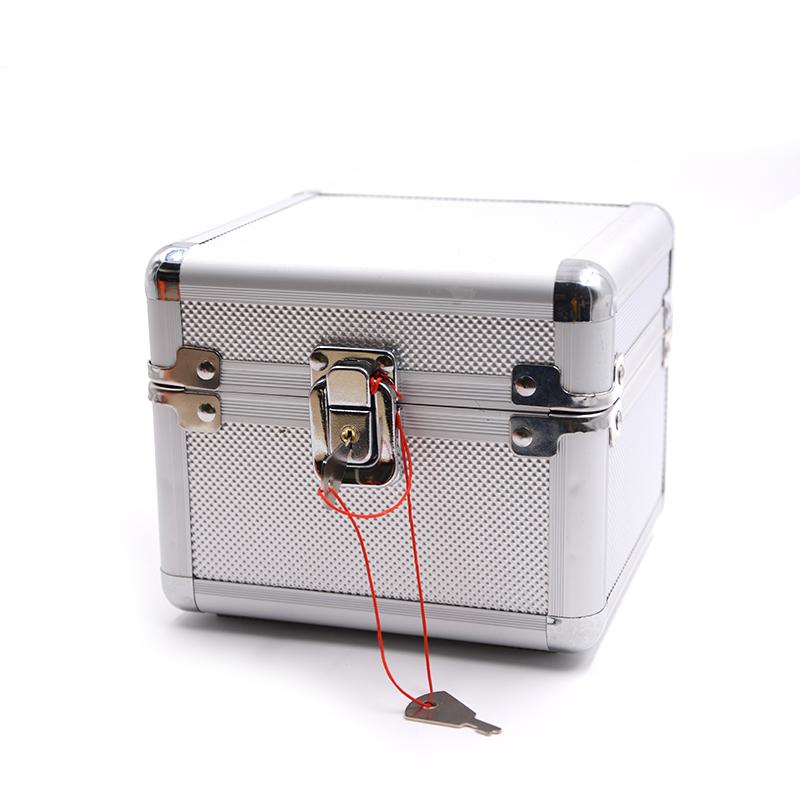

Packing list：Film applicator X1, instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
