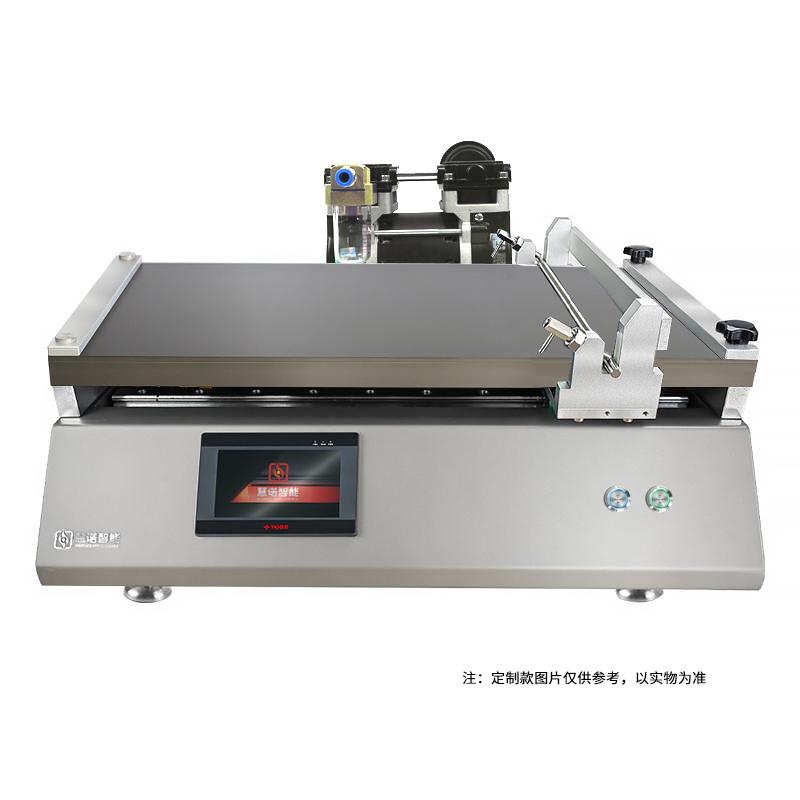

HuiNuo TM1200Pro/02 Automatic Film Applicator bar coater Effective area 60 * 50cm
TM1200pro/02
HuiNuo TM1200pro/02 Automatic Film ApplicatorSPEC
HuiNuo TM1200pro/02 Automatic Film ApplicatorDetails
HuiNuo TM1200pro/02 Automatic Film ApplicatorPacking list
- SKU
- NB050686
- coating method
- Bar Spreader
- coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 840*530mm
- effective coating area
- 600 * 500Mm (can be customized)
- meyer rod coating thickness range
- Film thickness is different, with High Accuracy bar
- meyer rod coating accuracy
- ±0.001mm
- Vacuum Area
- 680 * 460Mm (can be customized)
- Vacuum aperture diameter
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Vacuumpump pumping rate
- 5.4m3/h
- Ultimate vacuum degree
- 50KPa
- Vacuumpump power
- 180W
- Vacuumpump weight
- 7.1kg
- Drive motor
- Servo motor
- operating language
- Chinese (can be customized in English)
- display screen
- Color LCD Touchscreen
- Host power supply
- 220V/50HZ (can be customized 110V/60HZ)
- power
- 600w
- dimensions
- 860 * 640 * 430Mm (subject to actual customization)
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod type automatic coating machine,With vacuum adsorption function,The installation method of the new wire rod greatly improves the coating efficiency, is easy to clean, supports speed control and coating length adjustment, and is suitable for high-precision automatic coating of film in laboratories, and is used for film proofing in university research institutes, new materials, lithium batteries, glues, resins and other laboratories.
Product Use:
The film coating machine is suitable for coatings, inks, paints, pastes, lithium batteries, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on films, release papers, aluminum foil and copper foils.
Product features:
1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential adjuster, high film thickness control accuracy
3) With heating and vacuum adsorption functions
4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
