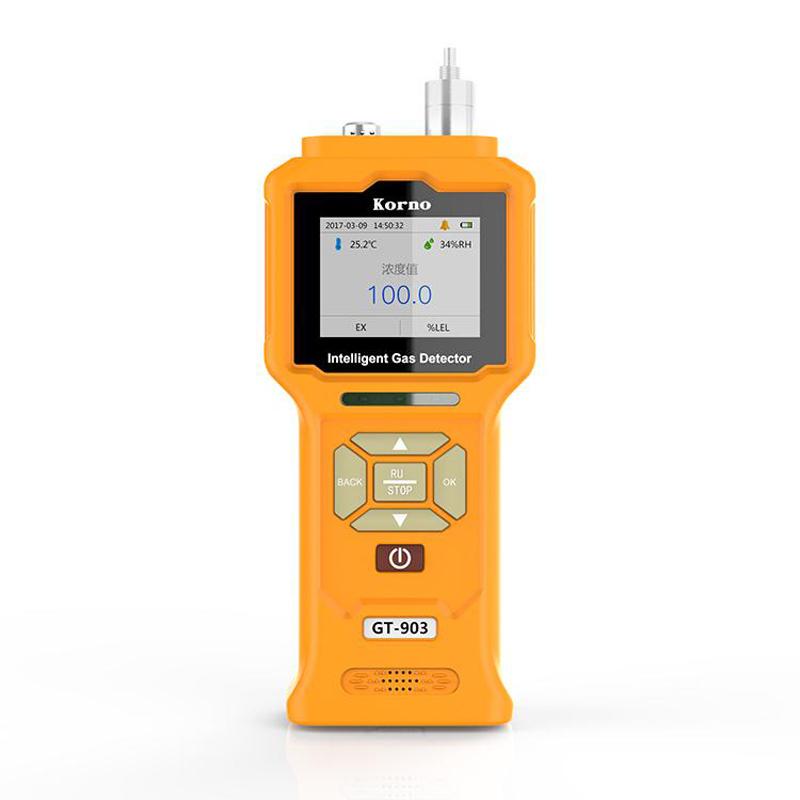

KORNO GT903-ETO-B Portable ethylene oxide detector 0-100PPM pump suction
GT903-ETO-B
KORNO GT903-ETO-B Portable ethylene oxide detectorSPEC
KORNO GT903-ETO-B Portable ethylene oxide detectorDetails
KORNO GT903-ETO-B Portable ethylene oxide detectorPacking list
- SKU
- NB050693
- Temperature and humidity:
- Optional accessories, Temperature detection range: -40~ 120 ℃, Humidity detection range: 0-100% RH
- Detect gas
- Ethylene oxide (ETO)
- detection range
- 0-100PPM
- Detection principle
- electrochemistry
- resolution
- 0.01PPM
- Detection method
- Pump suction type, air pump Flow velocity: 500-1000mL/min adjustable (30 level fine adjustment), can work in a micro negative pressure environment
- detection accuracy
- ≤±3%F.S
- Response Time
- ≤ 30 seconds (T90)
- recovery time
- ≤ 20 seconds
- detection mode
- Real-time detection, timing detection can be set
- Linearity
- ≤±1%
- Zero drift
- ≤ +/- 1% (F. S/year)
- repeatability
- ≤±1%
- Alarm mode
- High and low alarm adjustable
- storage mode
- Real-time storage, timed storage can be set; 100000 groups of data can be stored, and historical data can be viewed on the screen
- Explosion-proof sign
- ExiaIICT4Ga (intrinsically safe type)
- Protection Rating
- IP66
- Power Supply
- 4000mA rechargeable polymer battery
- Size weight
- 180 * 85 * 60 mm (L × W × H), 500g (Net weight)
- shell material
- ABS+PC
- Operating temperature
- -30 ～ 50℃
- Operating humidity
- ≤ 95% RH, non-condensing
- Operating Pressure
- -30Kpa ～ 100Kpa
- standard accessories
- Dust Filter, Instrument Aluminum Case, Manual, Certificate of Conformity, USB Charger + Data Cable, Calibration Cover
Product Description:
GT903 portable ethylene oxide gas detector, suitable for ethylene oxide gas concentration detection in various industrial environments and special environments, adopts imported electrochemical sensor and microcontroller technology, fast response speed, high measurement accuracy, good stability and repeatability, various parameters can be customized by users, simple operation. Built-in 4000mA large-capacity polymer rechargeable battery, ultra-long standby; It adopts a 2.4-inch industrial-grade high-definition color screen to display various technical indicators and gas concentration values, and can view historical data on the screen, with functions such as storage and data export.
Instrument features
It adopts a new 32-bit microprocessor and a 24-bit ADC data acquisition chip, and the detection accuracy is high enough
It adopts a 2.4-inch industrial-grade high-definition color screen with a resolution of 320x480
PPM, %VOL, and mg/m3 concentration units can be switched freely
Various types of sensors are supported, optional: temperature and humidity sensor
It has a data storage function, which can store 100,000 sets of data, and can view and export data
Various modes can be adjusted: detection mode, storage mode, display mode, air pump mode
Built-in pumping pump, the flow rate can be precisely adjusted (30 levels of adjustment), and can work in a micro-negative pressure environment
It has functions such as overvoltage protection, overcharge protection, anti-static interference, and anti-magnetic field interference
Full software automatic calibration, sensor up to 6 levels of target point calibration function to ensure measurement accuracy and linearity, and data recovery function
Full Chinese/English operation menu, simple and practical
With temperature compensation, the instrument is designed to be dustproof and waterproof, equipped with a dust filter, and can be used in various harsh situations
