Brand：HuiNuo
Model：TM3200proAF

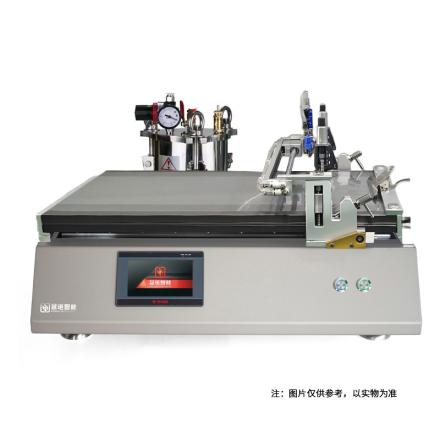

Name：Automatic Film Applicator (with automatic feeding)
Specifications
| coating method | Bar + drawdown blade |
| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 640*330mm |
| effective coating area | 400 * 300Mm (can be customized) |
| meyer rod coating thickness range | Different bar sizes have different thicknesses, with High Accuracy imported bars |
| meyer rod coating accuracy | ±0.003mm |
| Blade Coating Thickness Range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Blade Coating Width | 300mm |
| Blade Coating accuracy | ±0.003mm |
| Vacuum Area | 480 * 260Mm (can be customized) |
| Vacuum aperture diameter | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuum pump pumping rate | 5.4m3/h |
| Ultimate vacuum degree | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump weight | 7.1kg |
| Drive motor | Servo motor |
| customization function | Automatic feeding system |
| Feeding principle | Pneumatic pressure feeding |
| Feed Sport Mode | Reciprocating linear motion |
| Feeding back and forth traverse speed | 2-150mm/s |
| spit volume | Adjustable (by adjusting the air pressure and the running speed of the discharge port) |
| Feeding system air source | Customer-provided compressed air, 0.6Mpa |
| Power | 600w |
| Operating language | Chinese (can be customized in English) |
| display screen | Color LCD Touchscreen |
| Host power supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimension | 660 * 440 * 430Mm (subject to actual customization.) |
Packing list
Host X1, manual X1, drawdown blade x1, imported bar X1, automatic feeding system x1, barrel x1, certificate X1, vacuum pump X1
After-sales instructions
Warranty days: 730 days
1.仪器设备非人为造成的产品质量问题，在质保期内厂家提供免费质保服务；
2.易损易耗配件不存在质保期，收到货发现产品质量问题，请在7天内申请退换货，逾期不候；
