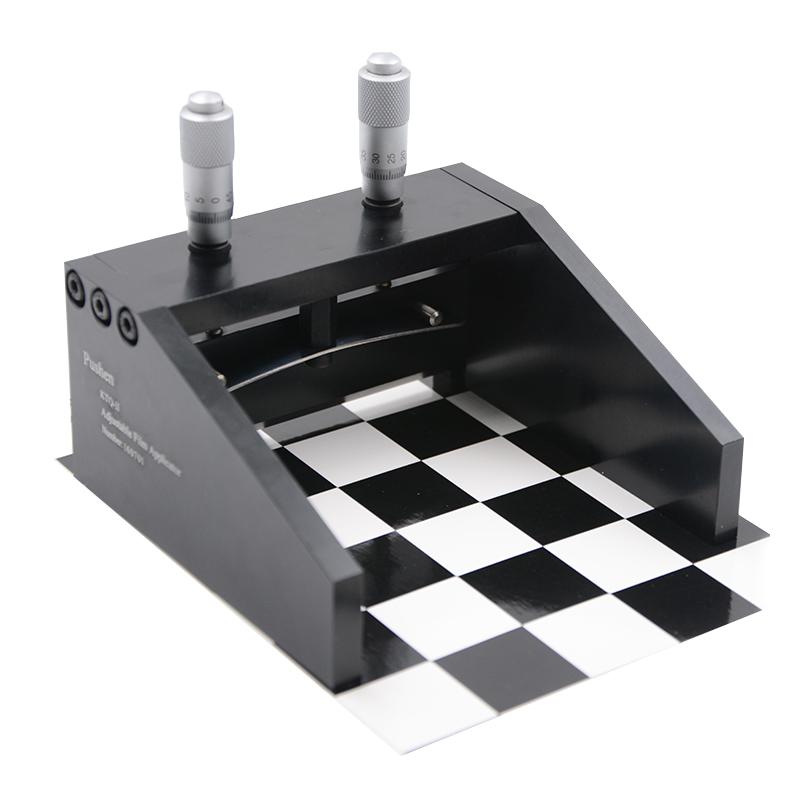

KTQ-200mm Micrometer Film Applicator adjustable film instrument 200mm

KTQ-200mm

Micrometer Film Applicator

Adjustable, wet film thickness 0~ 3500 μ m, application width 200mm, accuracy +/- 2 μ m, material aluminum oxide, Graduation 10 μ m.

Product Introduction

KTQ-II/25204 Adjustable ApplicatorThere are two differentiators on the upper end that can be rotated to adjust the scraper to control the gap to apply a wet film of a specific thickness. The KTQ-II/25204 adjustable applicator is suitable for flat substrate coating, as well as for high viscosity and high concentration coatings, with uniform coating.KTQ-II/25204 Adjustable ApplicatorThe coating width is 200mm, and the accuracy is ±2μm.

Product features:

1、KTQ-II/25204 Adjustable ApplicatorCan be used to apply uniform wet film thickness on flat substrates.

2. The coating thickness of the adjustable applicator is 0~3500μm, and the index value is 10μm.

3. The Pushen adjustable applicator has an extension edge, which can retract the paint during the coating process, and is suitable for coating coatings with high viscosity and high concentration.

How to do it

First, willKTQ-II/25204 Adjustable ApplicatorPlace on a flat test substrate surface and adjust the scraper to the required clearance (approximately twice the required wet film thickness)

Second, pour a small amount of test sample between the end plates at a slow and uniform speed (1~2cm/s) in the front section of the coating knife of the adjustable applicator.

Third, move the KTQ-II/25203 adjustable applicator until the paint is fully applied and any remaining paint has been removed from the end of the coating path.

Fourth, the actual coated wet film should be measured using a wet film thickness gauge and the gap should be adjusted until the desired wet film thickness is reached.

Concentrate:The exact ratio of wet film thickness to any coating knife gap depends on the material used, the viscosity of the liquid, and the texture The force applied to the coating knife, the coating speed, and the geometry of the coating edge.

Maintenance measures

1、KTQ-II/25204 Adjustable ApplicatorClean and dry with an appropriate solvent immediately after use.

2. The two ends of the scraper move in the groove, and the slot needs to be kept without testing the sample material at any time.

3. The differentiator needs to be repositioned occasionally to correct for wear or misalignment. The assembly can be lowered or raised by loosening the two hidden set screws on each differentiator rather than removing them.

Packing list：Film applicator X1, instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
