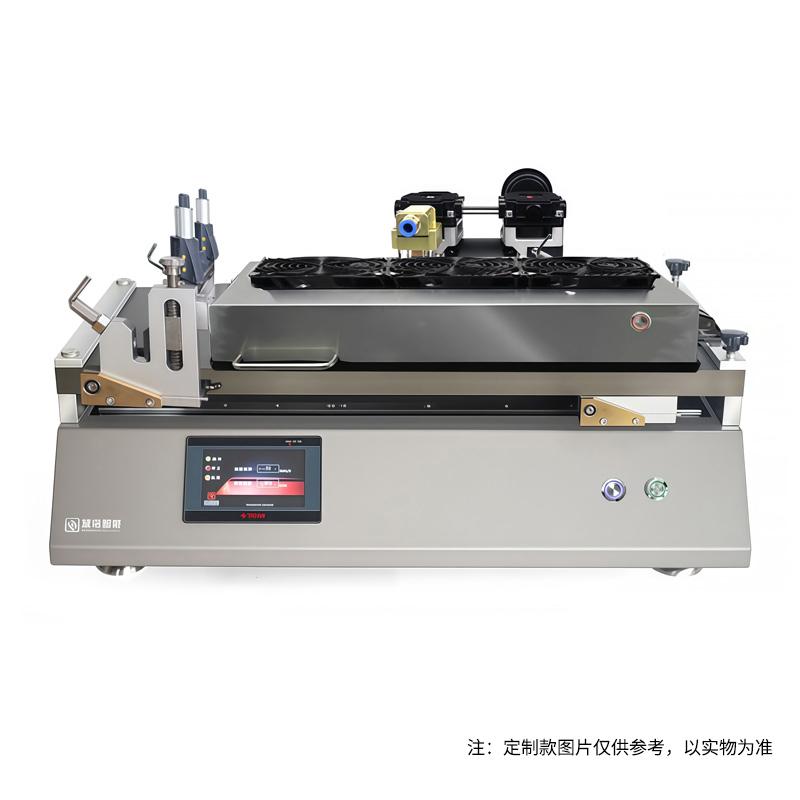

HuiNuo TM3100Pro/07 Infrared drying flat coating machine bar drawdown blade coater (upper infrared heating) effective area 40 * 30cm
TM3100pro/07
HuiNuo TM3100pro/07 Automatic Film ApplicatorSPEC
HuiNuo TM3100pro/07 Automatic Film ApplicatorDetails
HuiNuo TM3100pro/07 Automatic Film ApplicatorPacking list
- SKU
- NB050709
- coating method
- Bar + drawdown blade
- coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 600*300mm
- effective coating area
- 400 * 300Mm (can be customized)
- meyer rod coating thickness range
- Different bar sizes have different thicknesses, with High Accuracy imported bars
- meyer rod coating accuracy
- ±0.001mm
- Blade Coating Thickness Range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Blade Coating Width
- 300mm
- Blade Coating accuracy
- ±0.003mm
- heating area
- Upper infrared heating (with ventilation)
- Heating mode
- Infrared heating
- Temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±3℃
- Drive motor
- Servo motor
- Power
- 2000w
- Operating language
- Chinese (can be customized in English)
- display screen
- Color LCD Touchscreen
- Host power supply
- 220V/50HZ (can be customized 110V/60HZ)
- Dimension
- 658*438*400mm
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new line rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, hot melt glue and other laboratories for film proofing.
Product Use:
The coating machine is suitable for coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboard, aluminum foil and copper foil.
Product features:
1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments
2) Big brand differential adjuster, high film thickness control accuracy
3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With vacuum adsorption function, it is suitable for coating soft substrates such as films
