DongRu DR15A Large-range anti-corrosion layer thickness gauge (iron-based single-use type) Specifications

Search

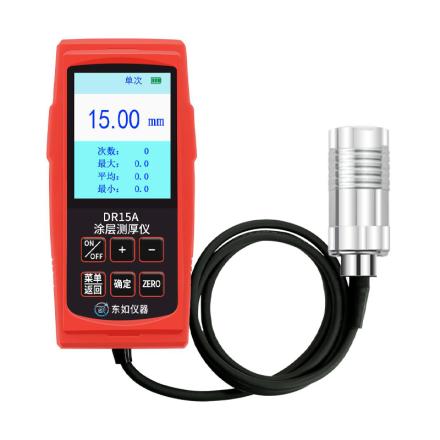

DONGRU DR15A Large Range Anticorrosive Layer Thickness Gauge, Iron Based Single Use Type 0.1-15 mm Coating Inspection

Brand：DongRu

Model：DR15A

Name：Large-range anti-corrosion layer thickness gauge (iron-based single-use type)

DetailsContact
Specifications
Measurement range 100-15000μm（0.1-15mm）
thinnest matrix 0.8mm
Measurement accuracy ±3%H＋2μm
resolution 0.1 μm /1 μm /0.01 μm (0.1 μm below 100 μm, 1 μm for 100-9999, 0.01 μm above 9999)
Minimum matrix area Φ30.5mm
minimum curvature Convex 20mm; Concave 100mm
Dimension 141（L）×69（W）×27（H）mm
weight 242g
power supply 3.7V lithium battery (2000mAH)
Operating Environment Temperature: 0 ℃ -60 ℃, Humidity: 20% RH - 90% RH, no strong magnetic field environment
optional USB communication or Bluetooth function
Packing list
After-sales instructions

None

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50714/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
