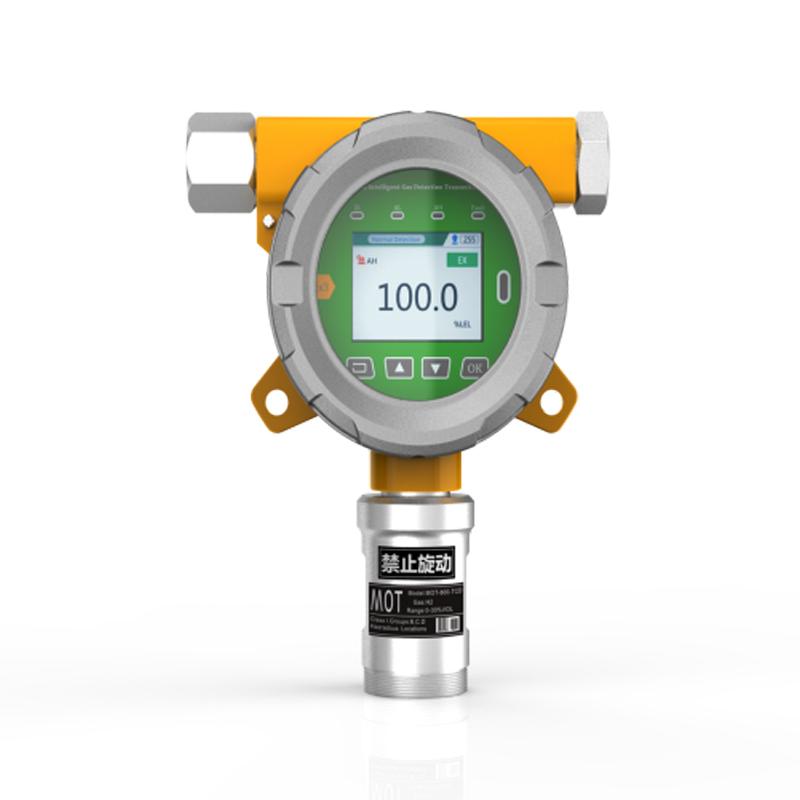

KORNO MOT500-C02-BH-IR Stationary Carbon Dioxide Detector, Infrared Sensor
MOT500-C02-BH-IR
KORNO MOT500-C02-BH-IR Stationary carbon dioxide detectorSPEC
KORNO MOT500-C02-BH-IR Stationary carbon dioxide detectorDetails
KORNO MOT500-C02-BH-IR Stationary carbon dioxide detectorPacking list
- SKU
- NB050736
- Detection of gas:
- carbon dioxide
- Detection range:
- 0-10/20/50/100% VOL can be calibrated on demand
- Resolution:
- 0.01%VOL
- Detection principle:
- Non-dispersed infrared principle (NDIR)
- Detection method:
- Diffusion, flow, pump suction optional
- Installation method:
- Wall-Mounted, Pipeline Type (Thread Size: M40X1.5mm)
- Detection accuracy:
- ≤ +/- 1% F. S /≤ +/- 3% F. S Depending on Sensor
- Response Time:
- ≤ 15 seconds (T90)
- Recovery time:
- ≤ 20 seconds
- Linearity:
- ≤±1%
- Zero drift:
- ≤ +/- 2% (F. S)/year
- Repeatability:
- ≤±1%
- Signal output:
- ① 4-20mA signal: standard 16-bit accuracy 4-20mA output chip, transmission distance 1Km ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 2Km ③ Voltage signal: 0-5V, 0-10V output, can be set by yourself ④ Pulse signal: also known as Frequency signal, Frequency range adjustable (optional) ⑤ Switching signal: standard 2 sets of relays, optional third set of relays, relay passive touch point, capacity 220VAC 3A/24VDC 3A
- Transmission method:
- ① Cable transmission: 3-core, 4-core cable, long-distance transmission (1-2 kilometers) ② TCP/IP transmission: support TCP/IP protocol, use optical fiber, network cable, long-distance real-time transmission through intranet, extranet (optional) ③ GPRS transmission: can be built-in GPRS module, real-time remote transmission of data, without distance restrictions (optional) ④ Wireless transmission: support 433Mhz, radio transmission mode, transmission distance 2-10Km, depending on different Power (optional) ⑤ Video transmission: can support security surveillance cameras, when the device alarm for on-site capture, forensics (optional)
- Receiving device:
- User computer, control alarm, PLC, DCS, user mobile phone, Ipad, etc
- Alarm mode:
- On-site sound and light alarm, external alarm, SMS alarm, remote controller alarm, computer data collection software alarm, mobile app notification
- Alarm settings:
- Standard configuration two-level alarm, optional three-level alarm; Alarm mode can be set: conventional high and low alarm, interval control alarm
- Explosion-proof signs:
- ExdII CT6 (flameproof)
- Protection Ratings:
- IP66
- Power Supply:
- 24VDC（12～30VDC）
- Size and weight:
- 200 * 149 * 79Mm (L × W × H) 1.5Kg (Net weight of instrument)
- Shell material:
- Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
- Operating temperature:
- -20 ～ 50℃
- Operating humidity:
- ≤ 95% RH, non-condensing
- Operating Pressure:
- 0 ～ 100Kpa
- Standard accessories:
- manual, certificate of conformity
1. Product description
MOT500 stationary carbon dioxide gas detector, suitable for carbon dioxide gas concentration detection in various environments, adopts imported infrared gas sensor and microcontroller technology, fast response speed, high measurement accuracy, good stability and repeatability. The instrument adopts a 2.4-inch industrial-grade color screen to display various technical indicators and gas concentration values. At the same time, it has a variety of extremely strong circuit protection functions to effectively prevent the damage of the instrument caused by various human factors and uncontrollable factors. You can choose to use the online environmental detection platform developed by our company, through 3-4 core cables, optical fibers, network cables, Wiff, Bluetooth, GPRS, mobile APP, and other transmission methods to access the Municipal Environmental Protection Bureau, enterprise server, central control alarm, user mobile phone, Baidu Cloud, Alibaba Cloud, etc., and with powerful data analysis software, it can realize remote monitoring, remote control, remote alarm, and can be used on user computers, mobile phones, Ipads and other devices for real-time data query, historical data query, data export, Data printing and other operations
2. Instrument characteristics
(1) Ultra-low power 32-bit microprocessor using new semiconductor nanoprocess
(2) It adopts a 2.4-inch industrial-grade color screen with a resolution of 320x240, and the three concentration units of PPM, %VOL, and mg/m3 can be switched freely
(3) A variety of signal outputs are optional: 4-20mA, RS485, 0-5V, 0-10V, frequency signal, switching signal
A variety of transmission methods are available: 3-4 core cables, optical fibers, network cables, GPRS transmission, wireless transmission, and video transmission
Multiple data reception methods: user computer, control alarm, PLC, DCS, mobile phone, tablet, etc
(4) It has a status indicator function and comes with 4 sets of LED status indicators
(5) It has the functions of overvoltage protection, lightning protection, short circuit protection, reverse connection protection, anti-static interference, anti-magnetic field interference, etc., and has the automatic recovery function to prevent any external reasons, human causes, natural disasters, etc. caused by instrument damage
(6) With temperature and humidity detection function, it can detect the temperature and humidity value of gas in the site or pipeline (optional)
(7) Full software automatic calibration, sensor up to 6 levels of target point calibration function, to ensure the accuracy and linearity of measurement, and with data recovery function
(8) Full Chinese/English operation menu, simple and practical, with temperature compensation function
(9) Optional infrared remote control for lid-free remote control operation
