SHIBO QFS-III Washing resistance tester Coating washing resistance performance tester

SE
The instrument adopts Touchscreen operation, the brush reciprocates 300mm, runs Frequency 37 +/- 2 times/min, has automatic counting and stopping functions, and is suitable for performance evaluation of various film surfaces.
$817.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

SHIBO QFS-III Wash resistance testerSPEC

SHIBO QFS-III Wash resistance testerDetails

SHIBO QFS-III Wash resistance testerPacking list

SKU
NB050757
Brush Specifications
38 × 90mm baseplate evenly distributed 60 + 3 mouths, wearing bristles length 19mm
Brush weight (including brush)
450±2g
Travel Brush
300mm
Brush Running Frequency
37 +/- 2 times/min
Set the number of times
1～99999
Motor Power
100w
power supply
220V   50Hz.
QFS-III
Wash resistance tester
The instrument adopts Touchscreen operation, the brush reciprocates 300mm, runs Frequency 37 +/- 2 times/min, has automatic counting and stopping functions, and is suitable for performance evaluation of various film surfaces.

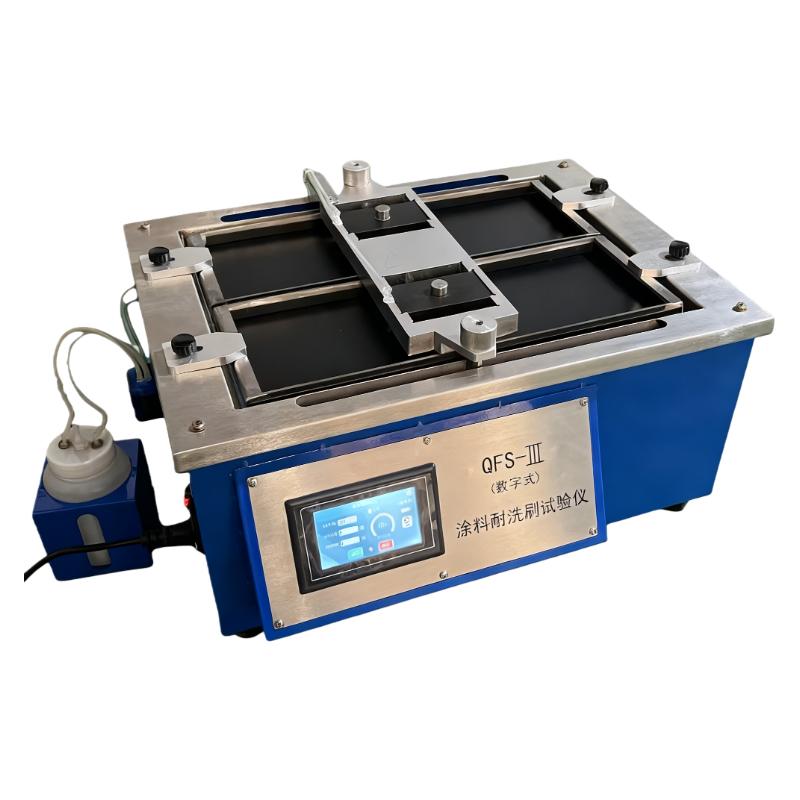

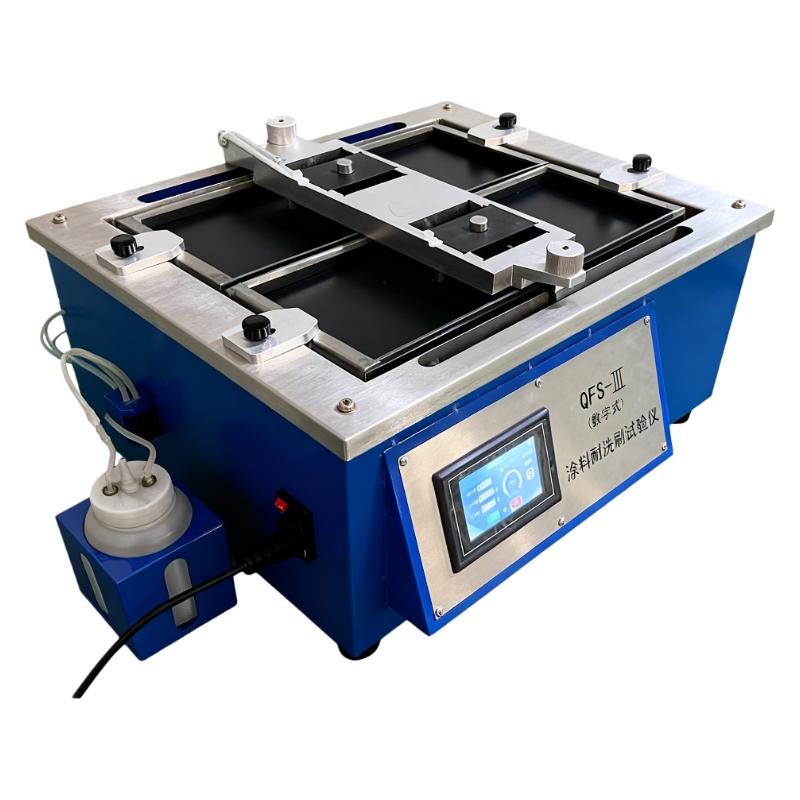

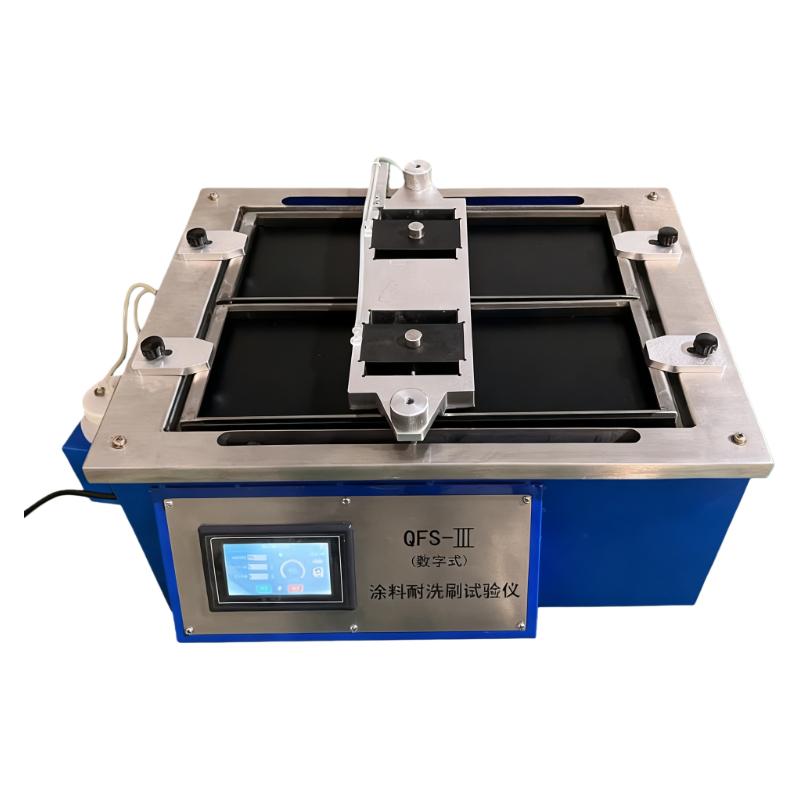

SHIBO QFS-III Washing resistance tester Coating washing resistance performance tester Picture

Overview

The instrument features a touchscreen operation interface, providing clear display and user-friendly controls. It includes functions such as cycle setting, digital display, automatic stop, and supports both Chinese and English language display.


The liquid storage cylinder located at the top of the instrument is used to hold the washing medium for testing. During experiments, the drip speed should be adjusted according to the requirements of the national standard.


Application

The Washability Tester is an instrument designed to evaluate the washability performance of coatings. It can also be used to assess the performance of any film-coated or treated surfaces, such as those with paint, electroplating, flooring, topcoats, wood density finishes, and similar treatments. The device performs wash cycles on coatings applied to standard test panels, with the number of wash cycles directly readable from the touchscreen. Based on the wash cycle count, the instrument helps determine the importance and necessity of evaluating coating washability. Compatible with the National Standard GB/T9755-2014, this instrument is an essential testing tool for coating manufacturers and research departments.



FAQ
QI want to test the washing performance of the paint, which instrument should I choose?
A SHIBO's QFS-III scrubbing resistance tester is recommended. This instrument is specially designed for coating scrubbing resistance testing. It is easy to operate and uses Touchscreen control. It can directly set and display the number of scrubbing times and automatically stop. It meets the requirements of the national standard GB/T9755-2014. It is a standard equipment in the field of coating production and research.
QIn addition to coatings, can this instrument measure the surface performance of Miscellaneous materials?
A Yes, the QFS-III scrubbing meter is not only used for coatings, but also to evaluate various films or treated surfaces, such as paints, platings, floor coatings, wood finishes, etc. It helps to understand the durability of materials by simulating the scrubbing process and testing the resistance of these surfaces to repeated friction.
QWhat are the advantages of the core functions of this instrument when selecting a model?
A QFS-III was chosen mainly because of its precise function and ease of use. Its brush specifications and operating parameters (such as 300mm Travel, 37 times/minute Frequency) are strictly designed according to the standard to ensure reliable test results. Touchscreen displays in both Chinese and English, with a wide range of frequency settings (1-99999), and can automatically control the flow velocity of the washing medium, making your testing both professional and worry-free.
QI want to test the washing performance of the paint, which instrument should I choose?
A SHIBO's QFS-III scrubbing resistance tester is recommended. This instrument is specially used to evaluate the scrubbing resistance performance of coatings and other coatings. The operation adopts Touchscreen, the setting number and display data are very convenient, and it meets the requirements of the national standard GB/T9755-2014. It is a commonly used testing equipment in the field of coating production and research.
