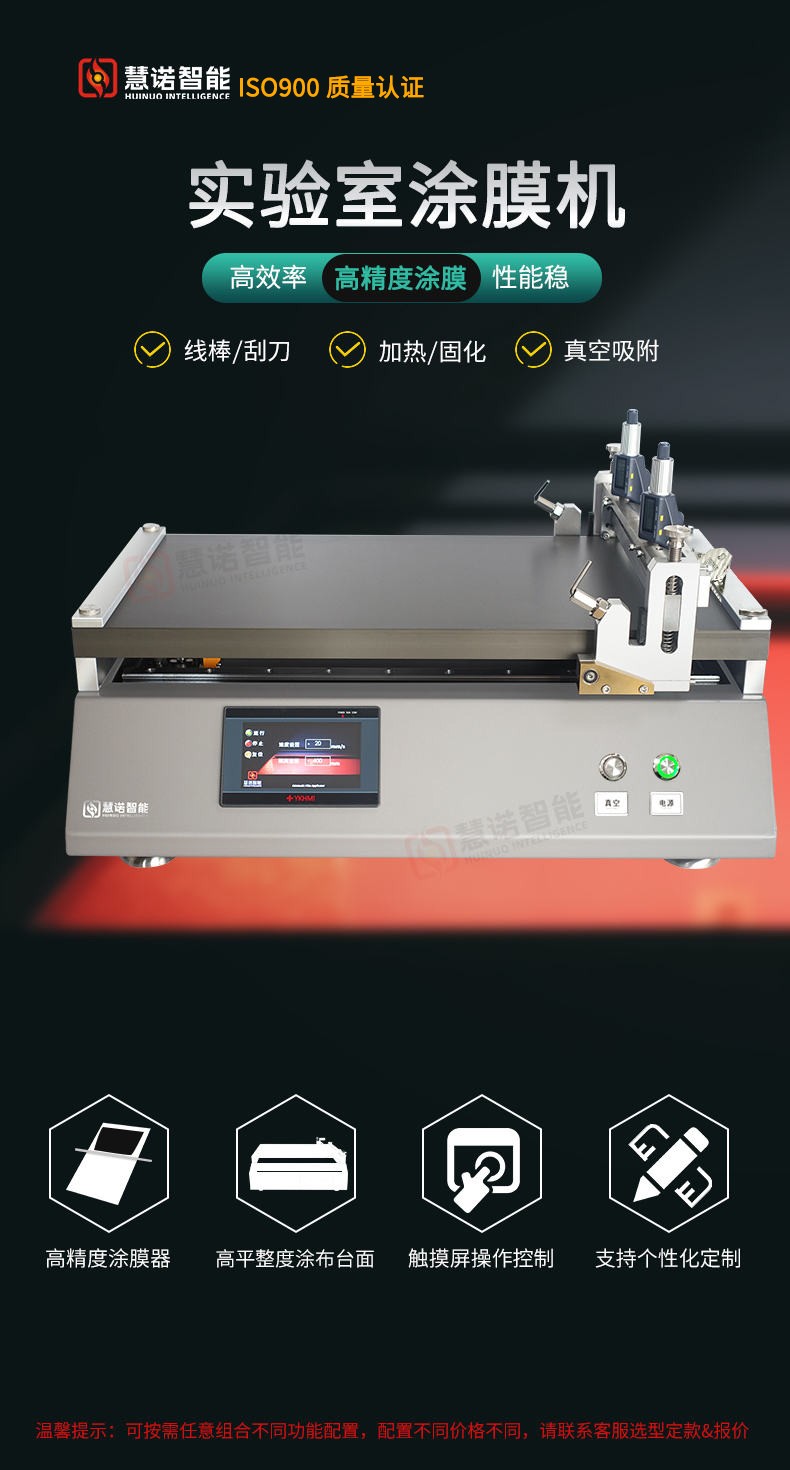

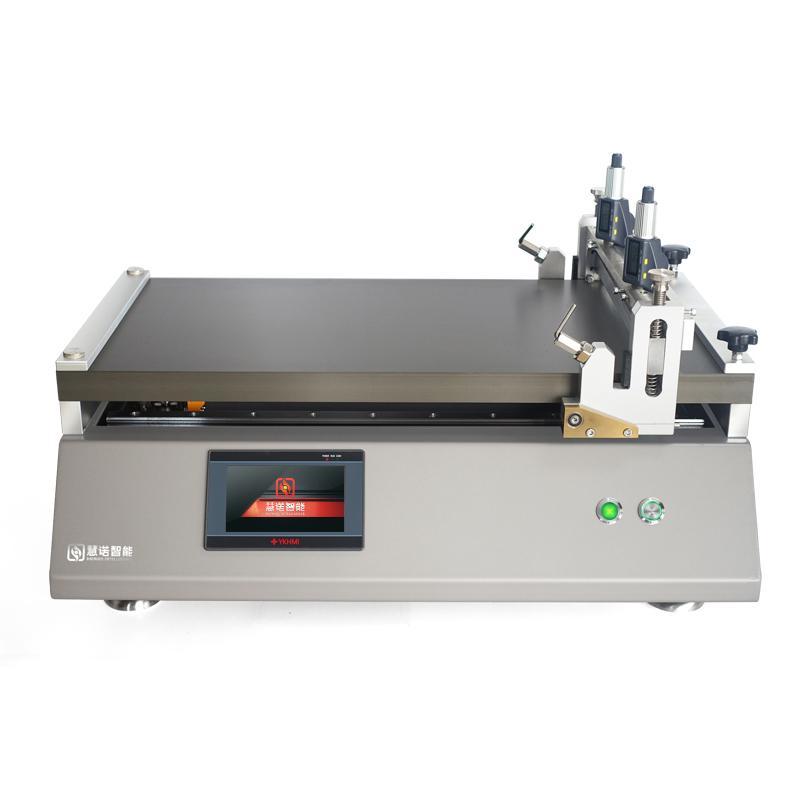

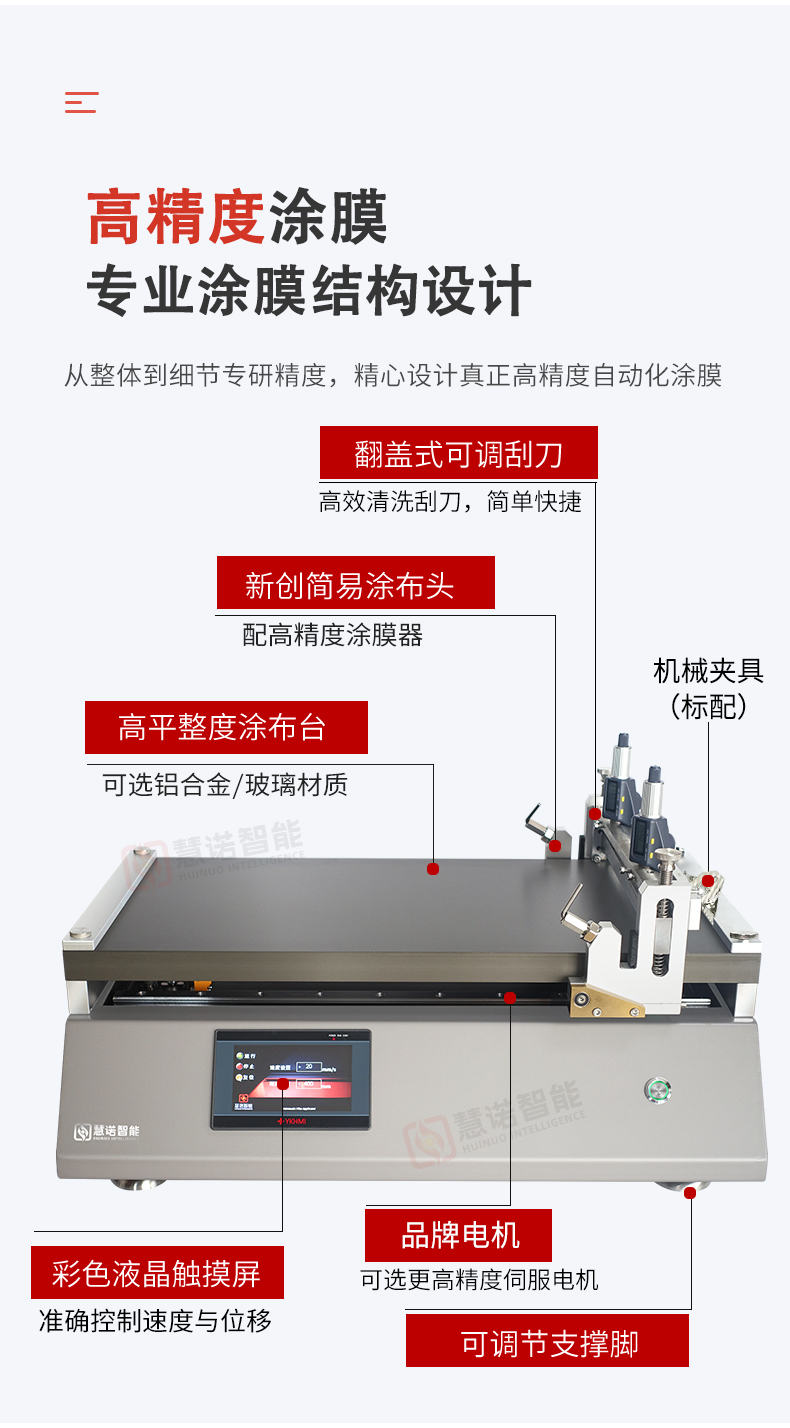

HuiNuo TM3000/30 Automatic Film Applicator bar drawdown blade Coater Effective Coating size 600 * 600mm

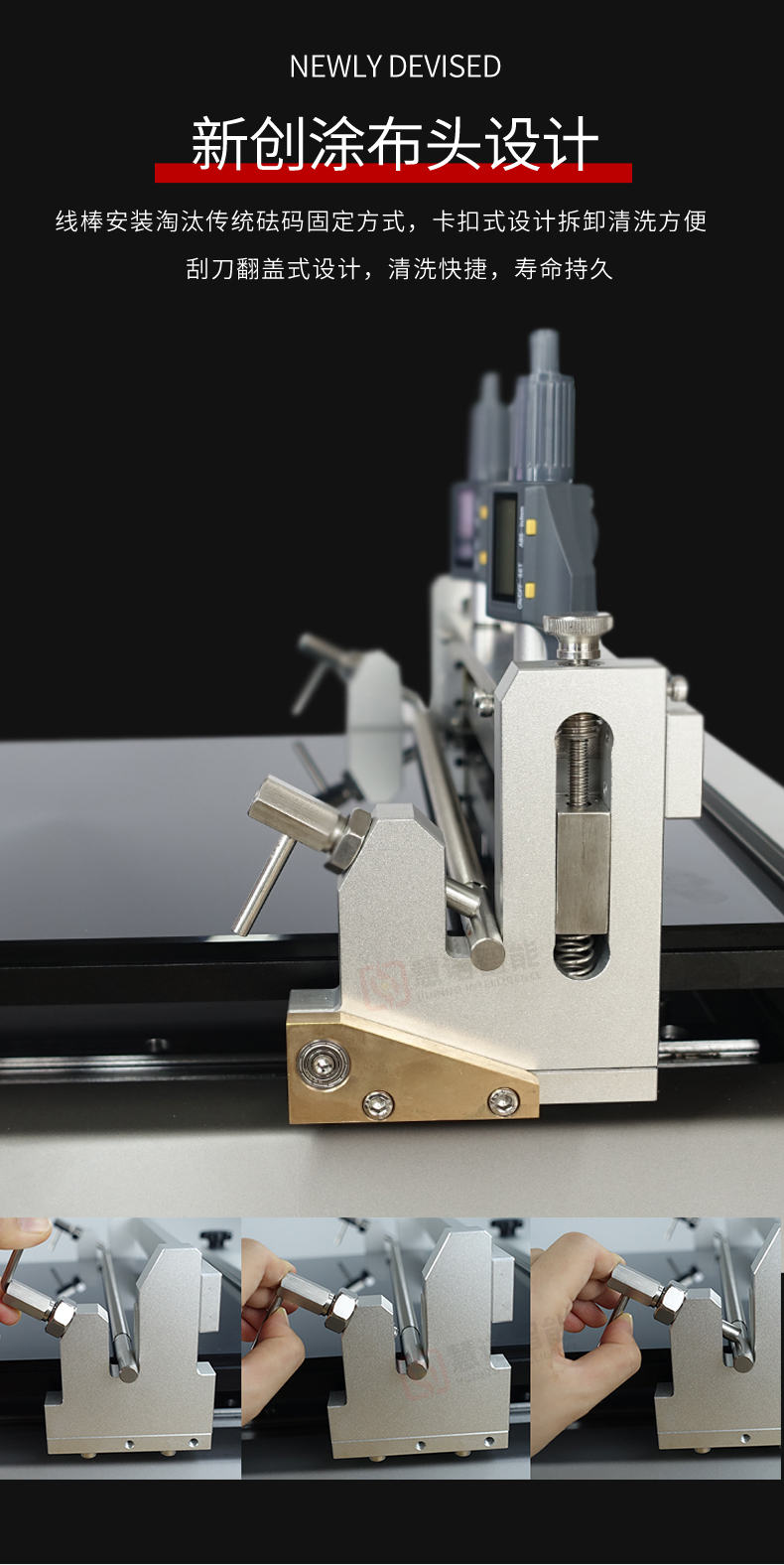

Set bar and drawdown blade two coating methods in one, using clamshell drawdown blade for easy cleaning, coating speed 1~ 300mm/s stepless speed, Blade Coating thickness range of 0.1~ 10mm, bar accuracy of +/- 0.001mm, suitable for laboratory High Accuracy Moulding.
$5083.00/set
PromotionLoading...
Coupon
Model：
TM3000/30
HuiNuo TM3000/30 Automatic Film ApplicatorSPEC
HuiNuo TM3000/30 Automatic Film ApplicatorDetails
HuiNuo TM3000/30 Automatic Film ApplicatorPacking list
- SKU
- NB050758
- coating method
- Bar + drawdown blade
- coating speed

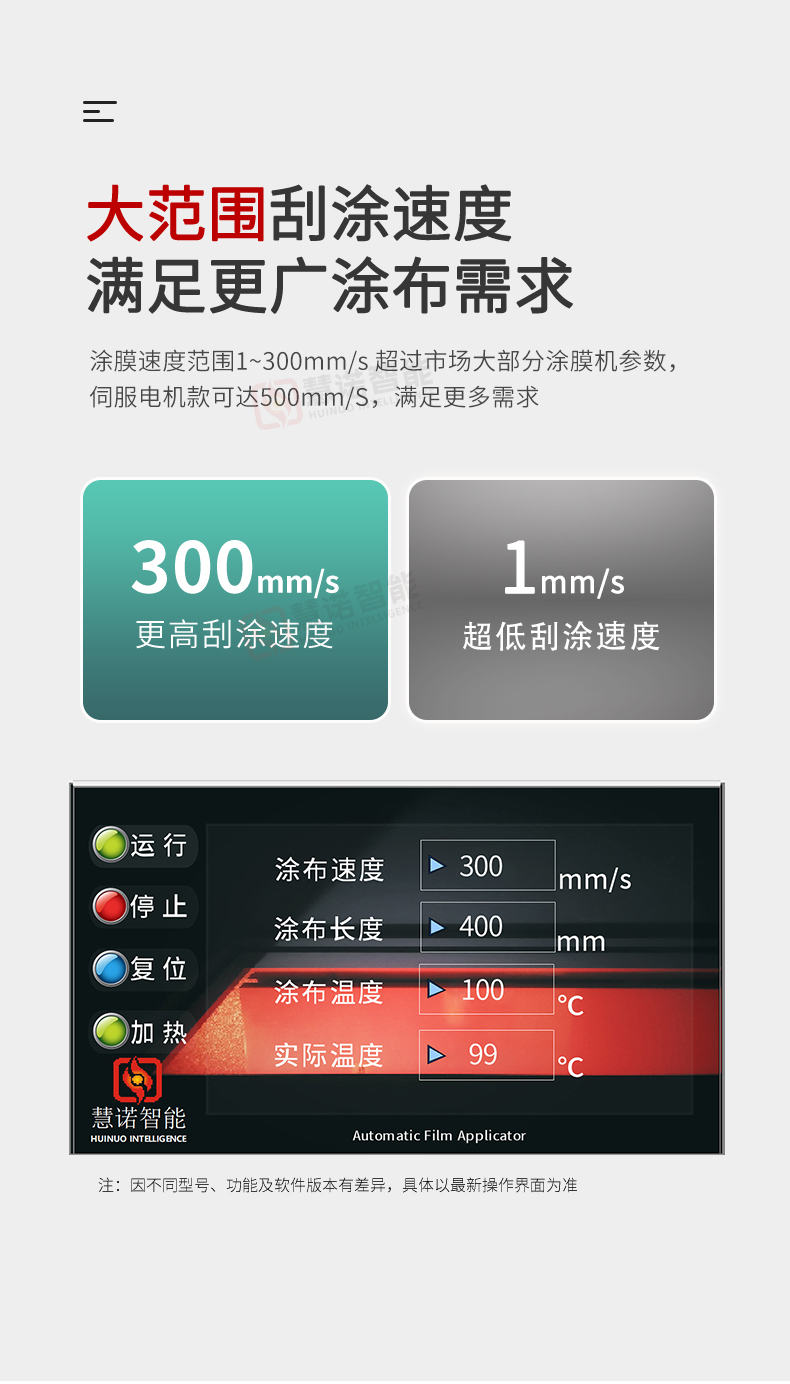

- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method

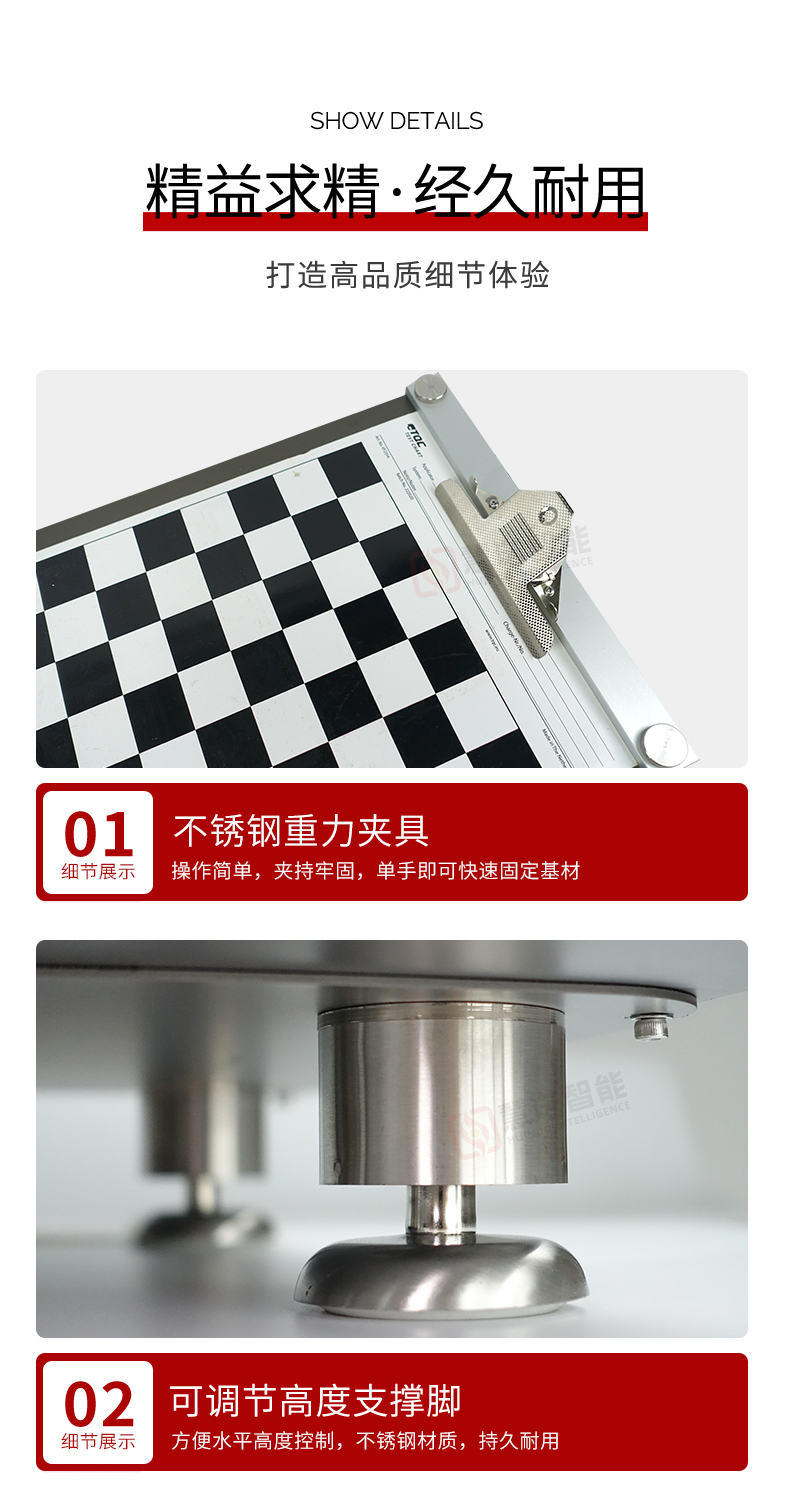

- fixture
- Coating table material

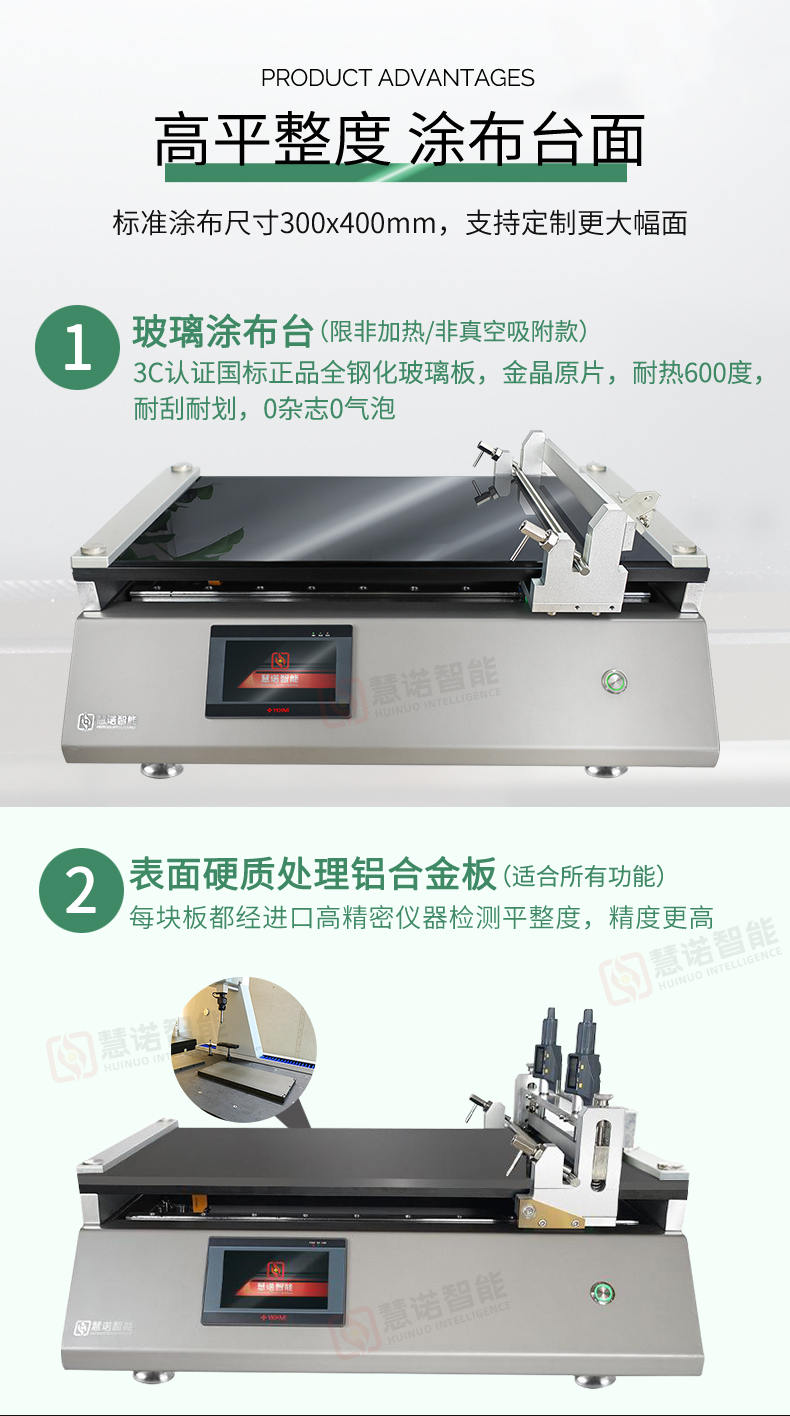

- Carbide aluminum alloy baseplate (optional Glass plate)
- Coating table size
- 840*630mm
- effective coating area
- 600 * 600Mm (can be customized)

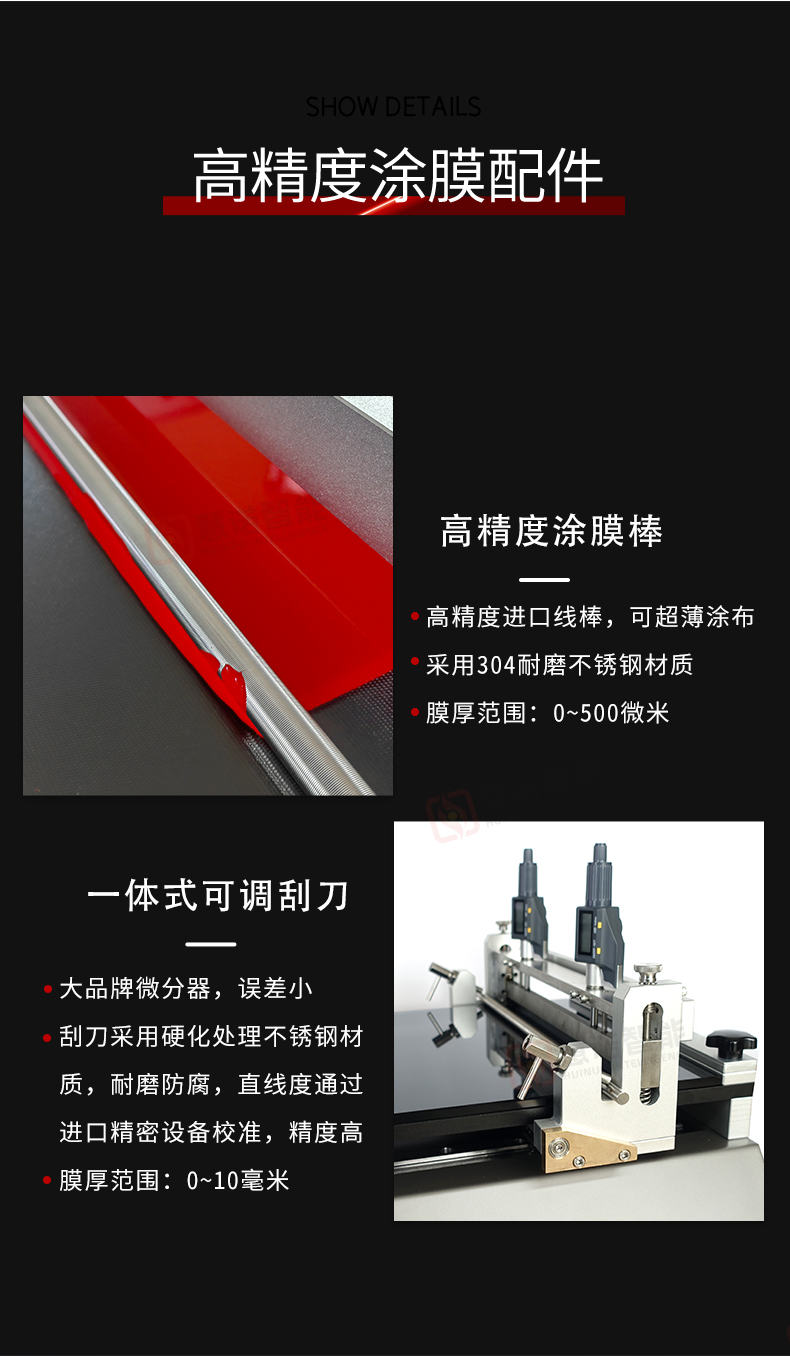

- meyer rod coating thickness range
- Different bar sizes have different thicknesses, with High Accuracy imported bars
- Bar accuracy
- ±0.001mm
- Blade Coating Thickness Range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Blade Coating Width
- 600mm
- Blade Coating accuracy
- ±0.003mm
- Power
- 400w
- Operating language
- Chinese (can be customized in English)
- display screen
- Color LCD Touchscreen
- Host power supply
- 100V~220V/50~60HZ
- Dimension
- 860*740*430mm

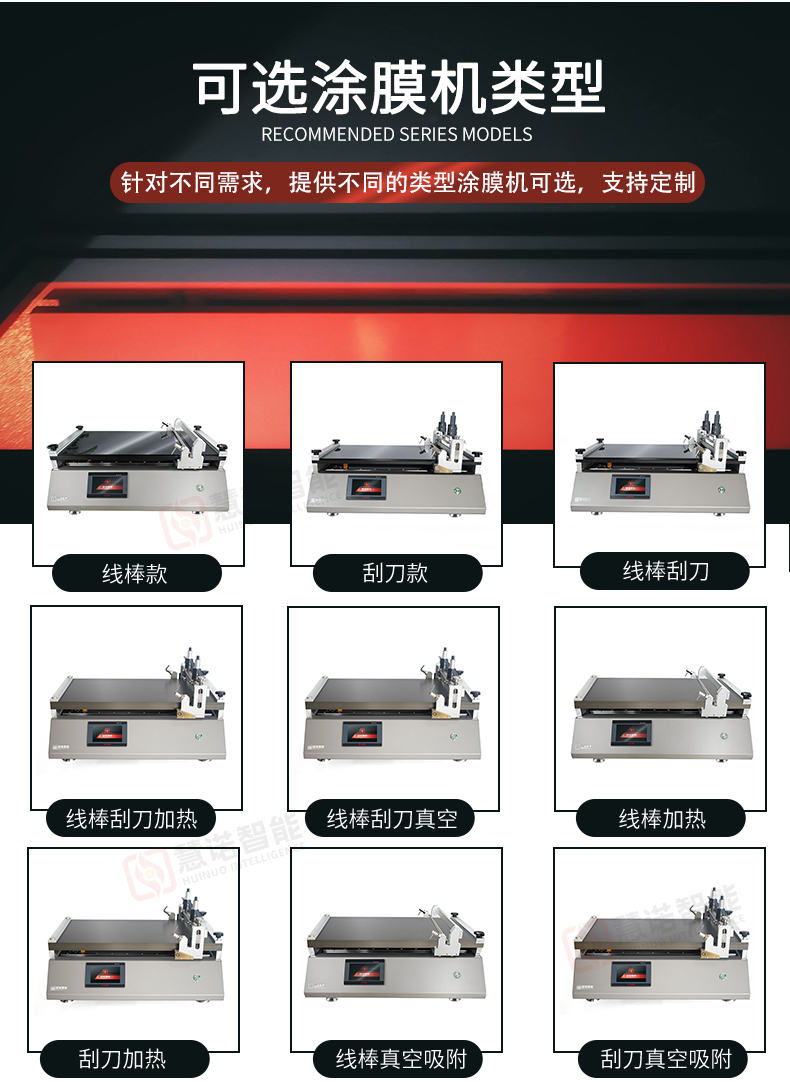

- optional feature

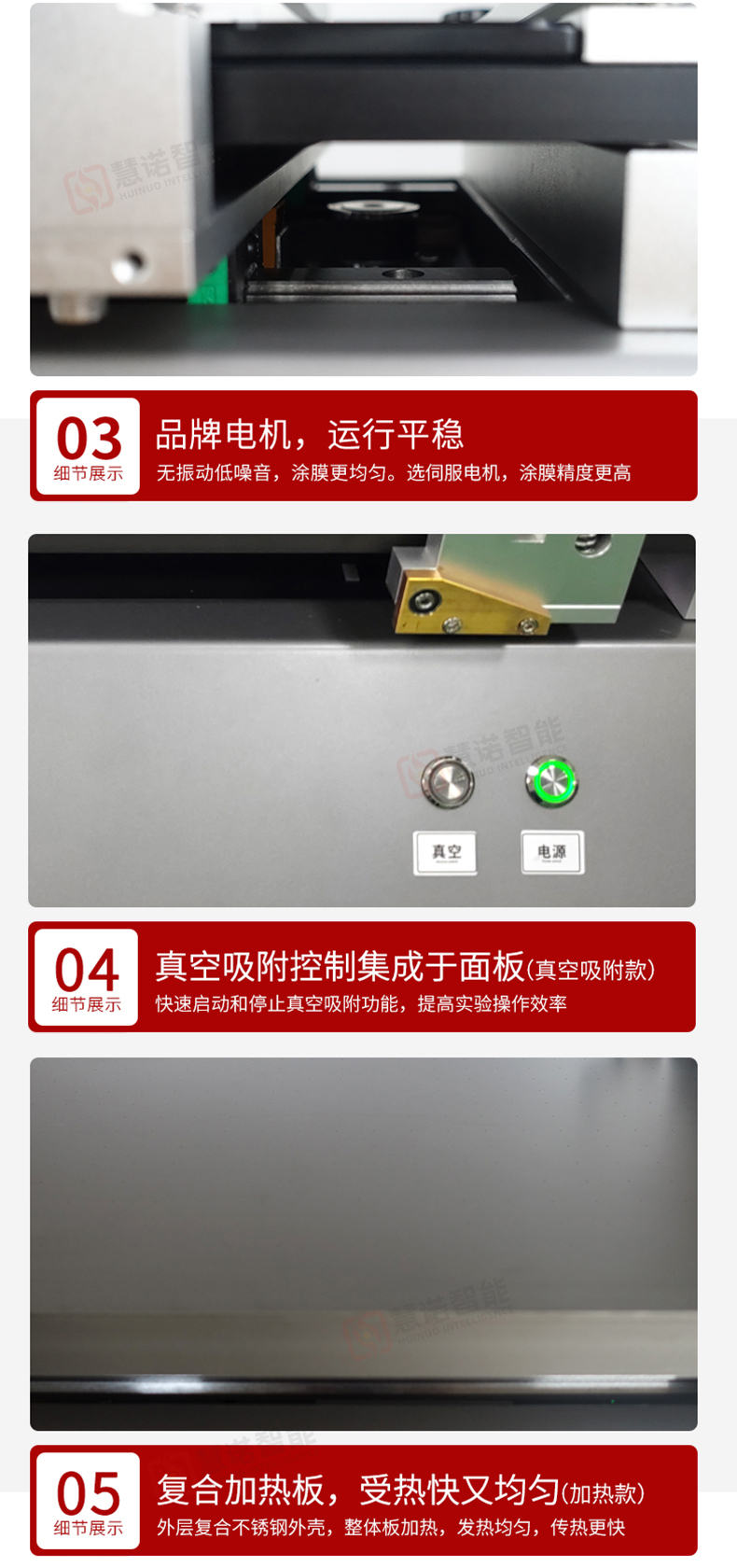

- Heating Vacuum chuck
TM3000/30
Automatic Film Applicator
Set bar and drawdown blade two coating methods in one, using clamshell drawdown blade for easy cleaning, coating speed 1~ 300mm/s stepless speed, Blade Coating thickness range of 0.1~ 10mm, bar accuracy of +/- 0.001mm, suitable for laboratory High Accuracy Moulding.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
