LeiEn LN-40K Furnace temperature tracker 4 channels -100-1300 ℃ Measurement range USB charging

With 4-channel synchronous measurement capability, Measurement range of -100 to 1300 ℃, support USB charging and data download integrated operation, data is not lost after the instrument is powered off.
$1159.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

LeiEn LN-40K Furnace temperature trackerSPEC

LeiEn LN-40K Furnace temperature trackerDetails

LeiEn LN-40K Furnace temperature trackerPacking list

SKU
NB050783
instrument accuracy
±0.3℃
Thermocouple type
K type
Thermometer power consumption
20 mAh
acquisition rate
1 second to 3600 seconds
Battery
High temperature explosion-proof lithium battery
data transmission
USB
Instrument temperature resistance
100 Degrees
instrument size
Length 138 * Width 62 * Height 20 mm
startup mode
button start, delayed start, temperature start
number of channels
4 channel
Measurement accuracy
±0.5℃
resolution
0.1 degree
Operating voltage
3.7V
continuous testing
16 times storage
Battery level
1200mAh
Memory capacity
512M
Measurement range
-100-1300℃
Calibrated mode
Standard voltage calibrated
Insulation box performance
500 ° 1h compatible with 300 ° 2h
Insulation box size
Length 340 * Width 205 * Height 160 units mm
LN-40K
Furnace temperature tracker
With 4-channel synchronous measurement capability, Measurement range of -100 to 1300 ℃, support USB charging and data download integrated operation, data is not lost after the instrument is powered off.
LeiEn LN-40K Furnace temperature tracker 4 channels -100-1300 ℃ Measurement range USB charging Picture

Instrument features:

1. Continuous testing, data can be downloaded 1 time

2. USB port, suitable for all computers

3. When the data is downloaded, the instrument charges itself

4. Standard voltage calibration, reliable accuracy

5. The instrument is powered off, and the data will not be lost

6. Various indicator lights to clarify the instrument status

7. One-click operation, easy to learn and use

Analytical instruments

1. The analysis software is the same as the data download interface

2. Calculate the holding time above any temperature point

3. Display the curve of each channel testing process

4. Analyze various parameters according to the process requirements

5. The analysis software can insert the field test photo

6. Iconic operation interface, intuitive image

(The above is part of the function introduction)

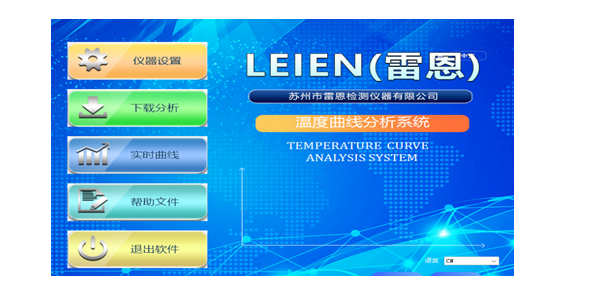

Instrument software analysis interface

Detail figure 1 of the Rennes LN-40K furnace temperature tracker

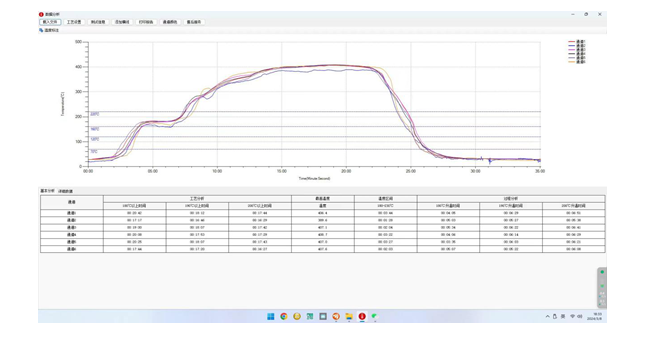

Furnace temperature curve display

Detail of the Rennes LN-40K furnace temperature tracker Figure 2

FAQ
QThere are many kinds of furnaces in our factory, and sometimes it takes a long time to test. Can this instrument work continuously?
A Yes, the LN-40K is ideal for this multi-scenario continuous test. It has a built-in high-temperature explosion-proof lithium battery for guaranteed battery life. Most importantly, it can continuously test and store data 16 times, and then download it to the computer via USB at one time. When downloading, it can automatically charge without delaying the next use. Its thermal insulation box has good performance. It can last for 1 hour at 500 ° C and is compatible with 2 hours at 300 ° C. It can meet the test time requirements of most industrial furnaces.
QI want to buy a Furnace temperature tracker, mainly used to test the temperature of reflow furnaces. Linear dispersion, what do you recommend?
A The LeiEn LN-40K Furnace temperature tracker is recommended. It supports 4-channel temperature measurement and can monitor the temperature of multiple key points at the same time. It is suitable for reflow soldering processes that require multi-point monitoring. High instrument accuracy (+/- 0.3 ° C) and wide Measurement range (-100 to 1300 ° C) can accurately capture the whole process of reflow soldering heating, thermostatic, reflow and chill down.
