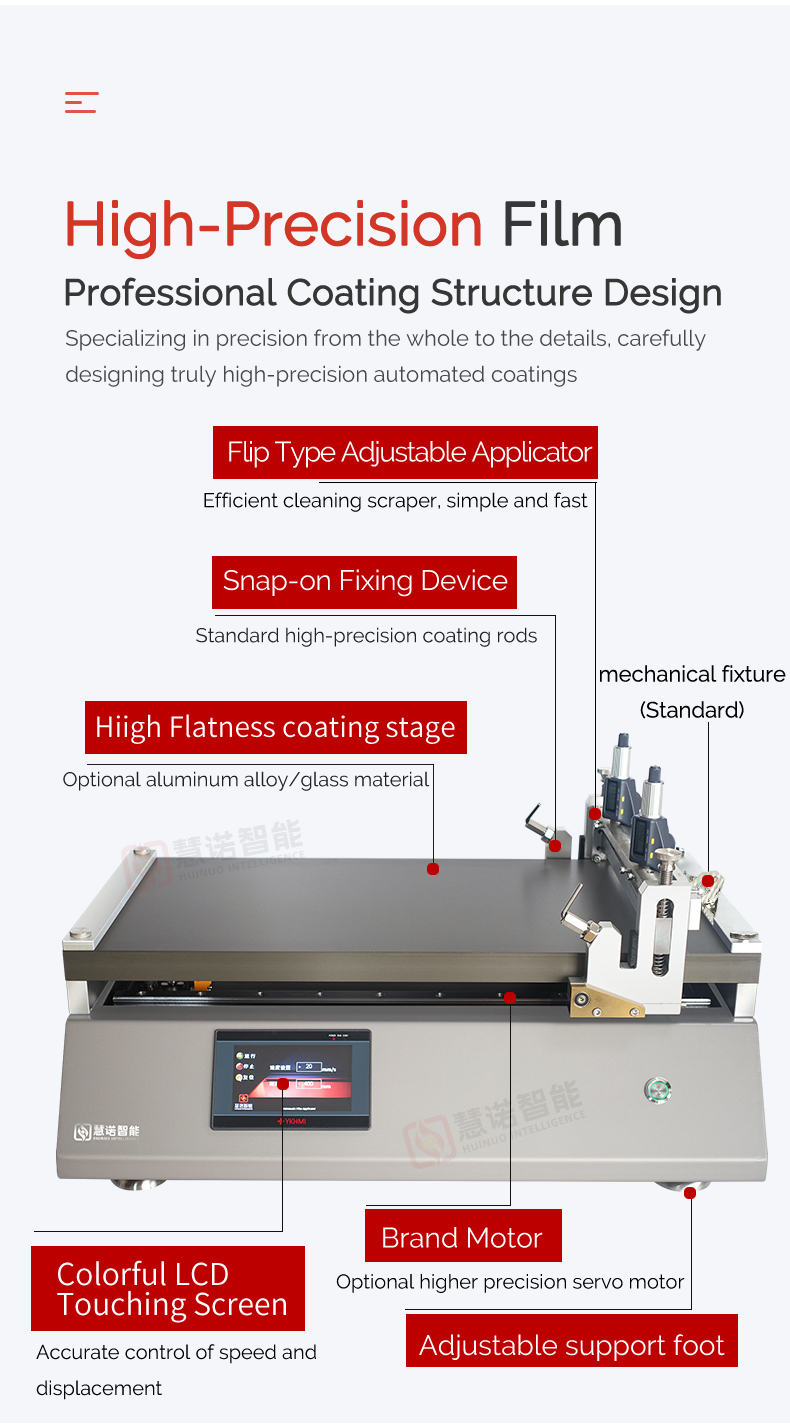

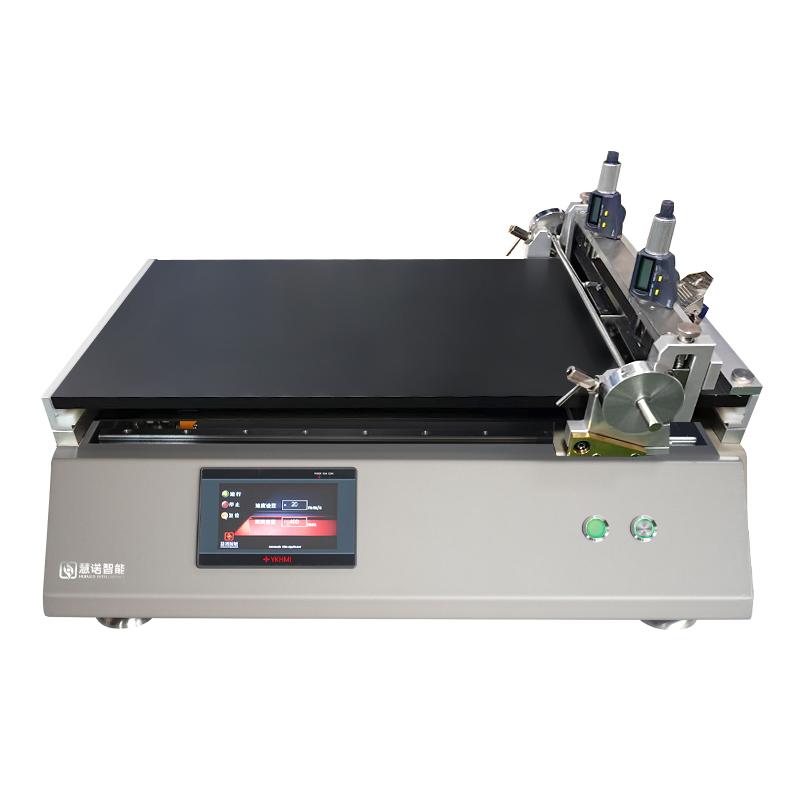

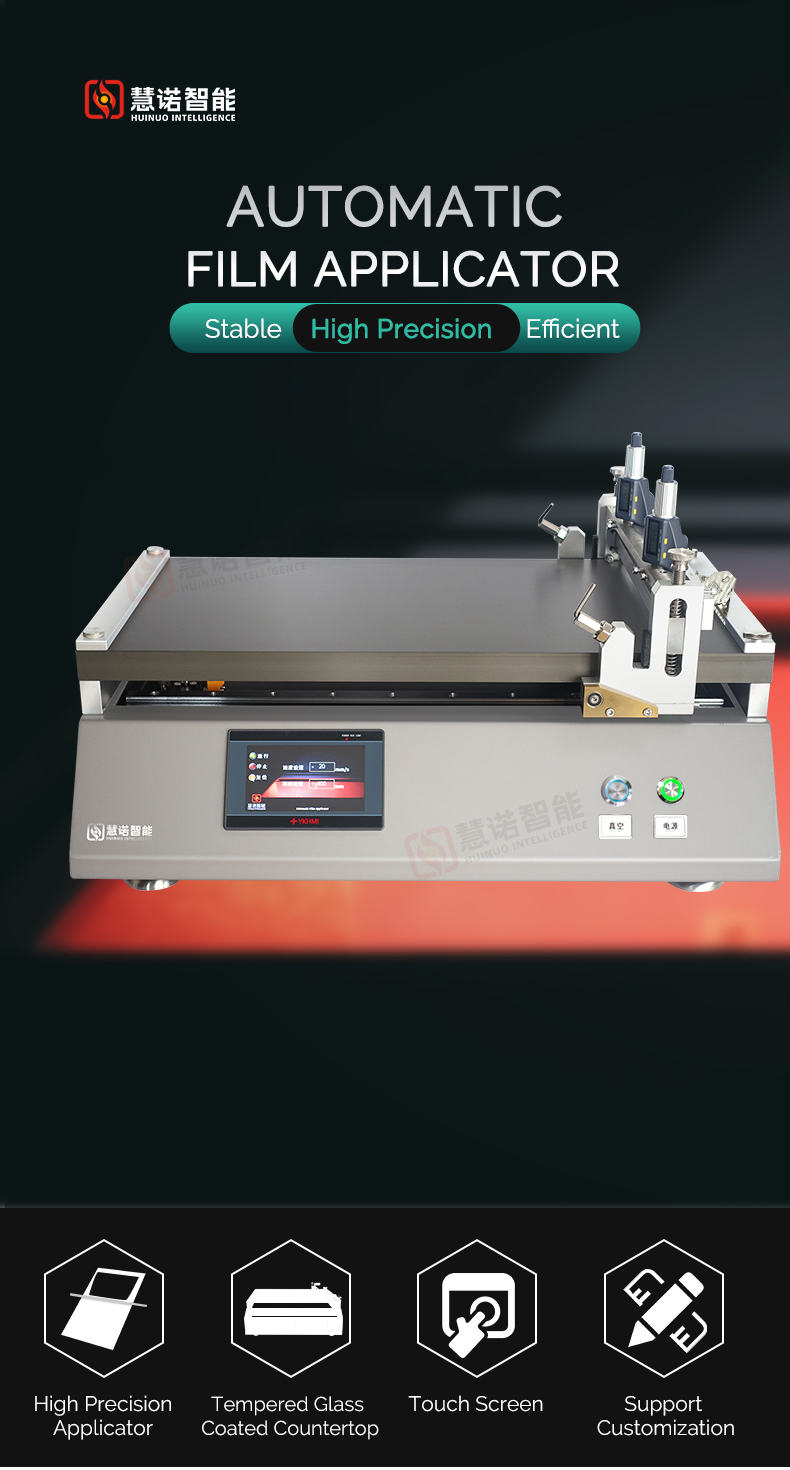

HuiNuo TM2000Pro/06 Automatic Film Applicator drawdown blade Coater width 60 * 30cm customized model

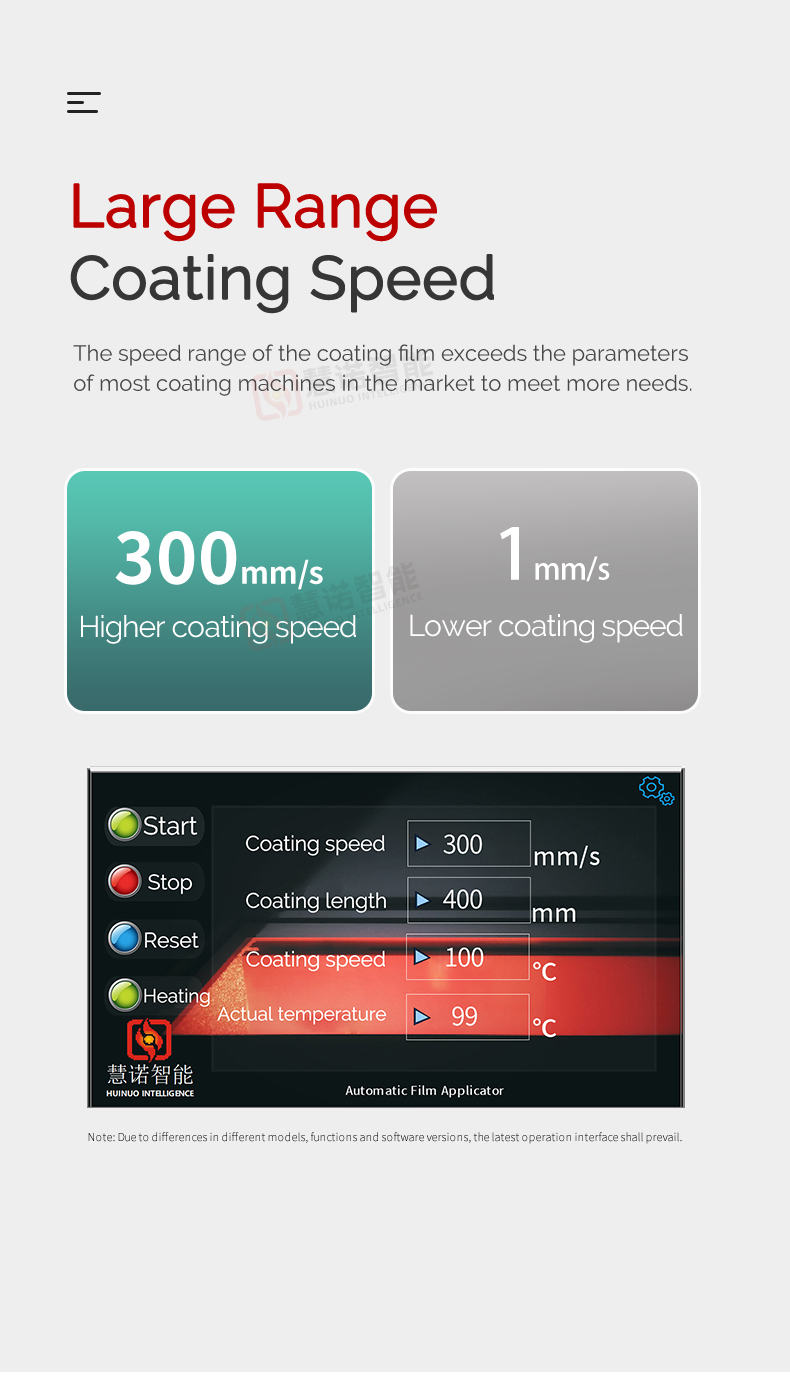

The coating speed is adjustable in the range of 1 to 500 mm per second, the film accuracy is up to +/- 0.002 mm, and the servo motor drive and color LCD Touchscreen control are used for convenient operation and stable accuracy.
$4734.00/set
PromotionLoading...
Coupon
Model：
TM2000pro/06
HuiNuo TM2000pro/06 Automatic Film ApplicatorSPEC
HuiNuo TM2000pro/06 Automatic Film ApplicatorDetails
HuiNuo TM2000pro/06 Automatic Film ApplicatorPacking list
- SKU
- NB050789
- coating method
- scraping
- coating speed
- 1~500mm/S

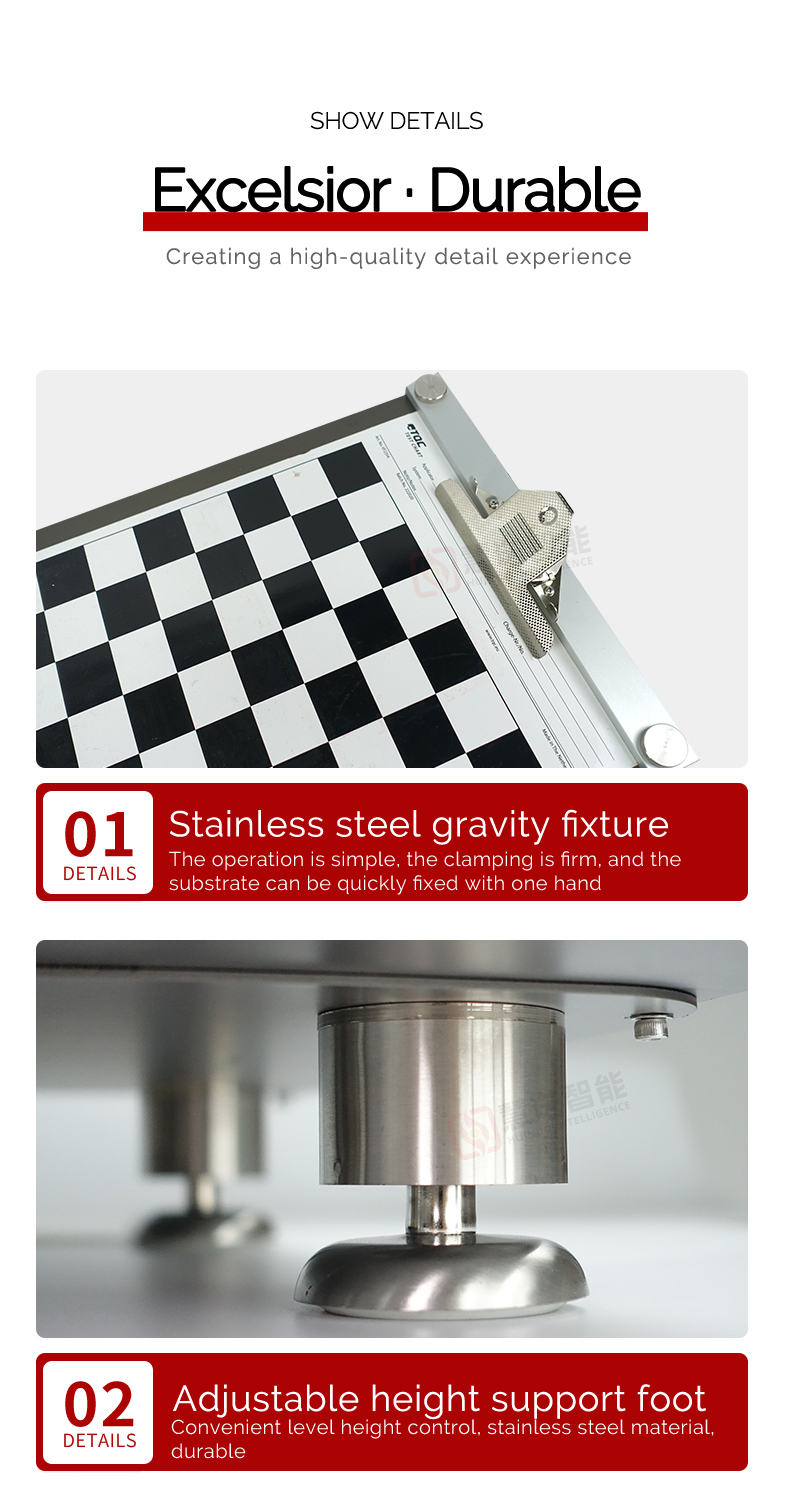

- Substrate fixing method
- fixture fixing

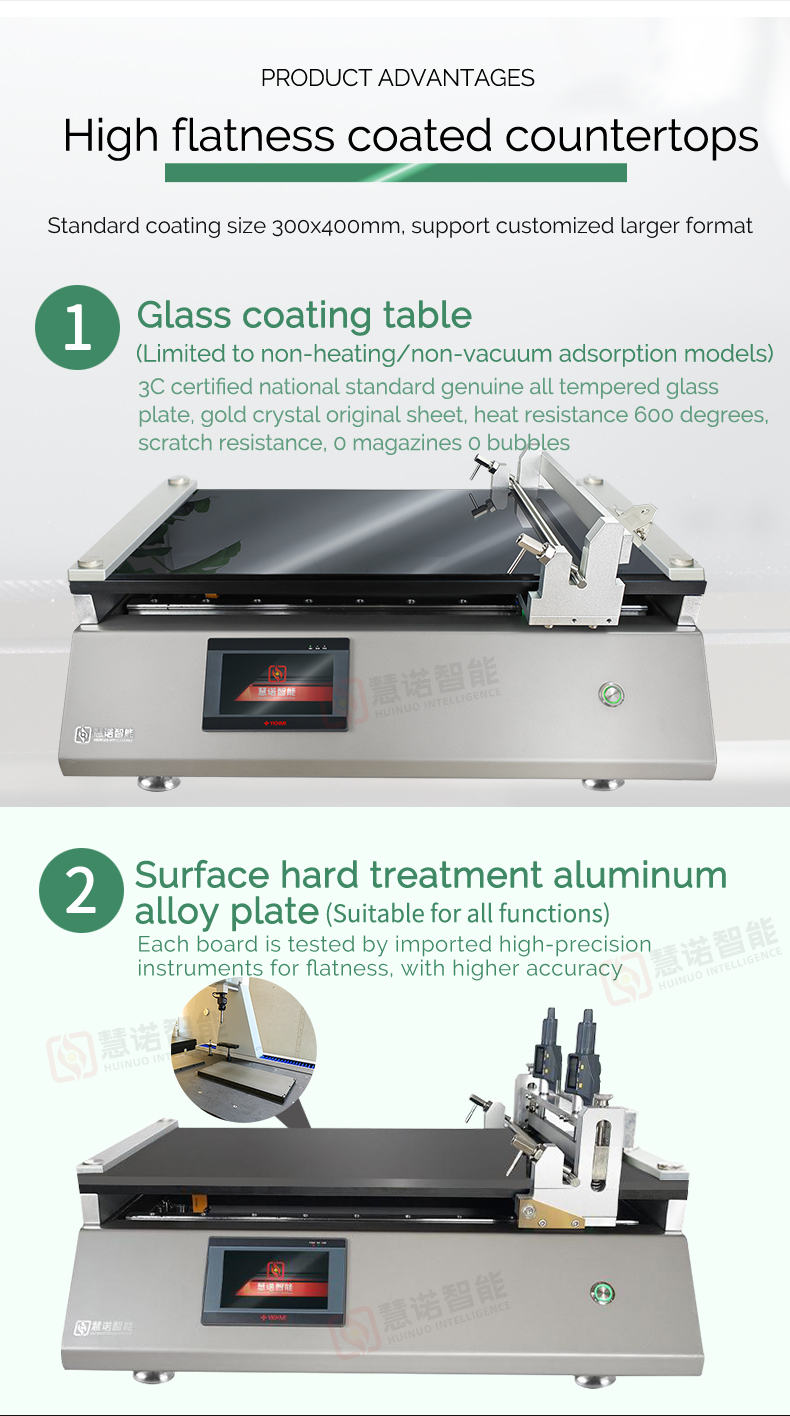

- Coating table material
- Glass plate
- Film accuracy
- ±0.002mm
- effective coating area
- 600 * 300Mm (can be customized)
- Effective application width
- 300Mm (width can be customized)
- Effective application length
- 600Mm (length can be customized)
- Drawdown blade film thickness

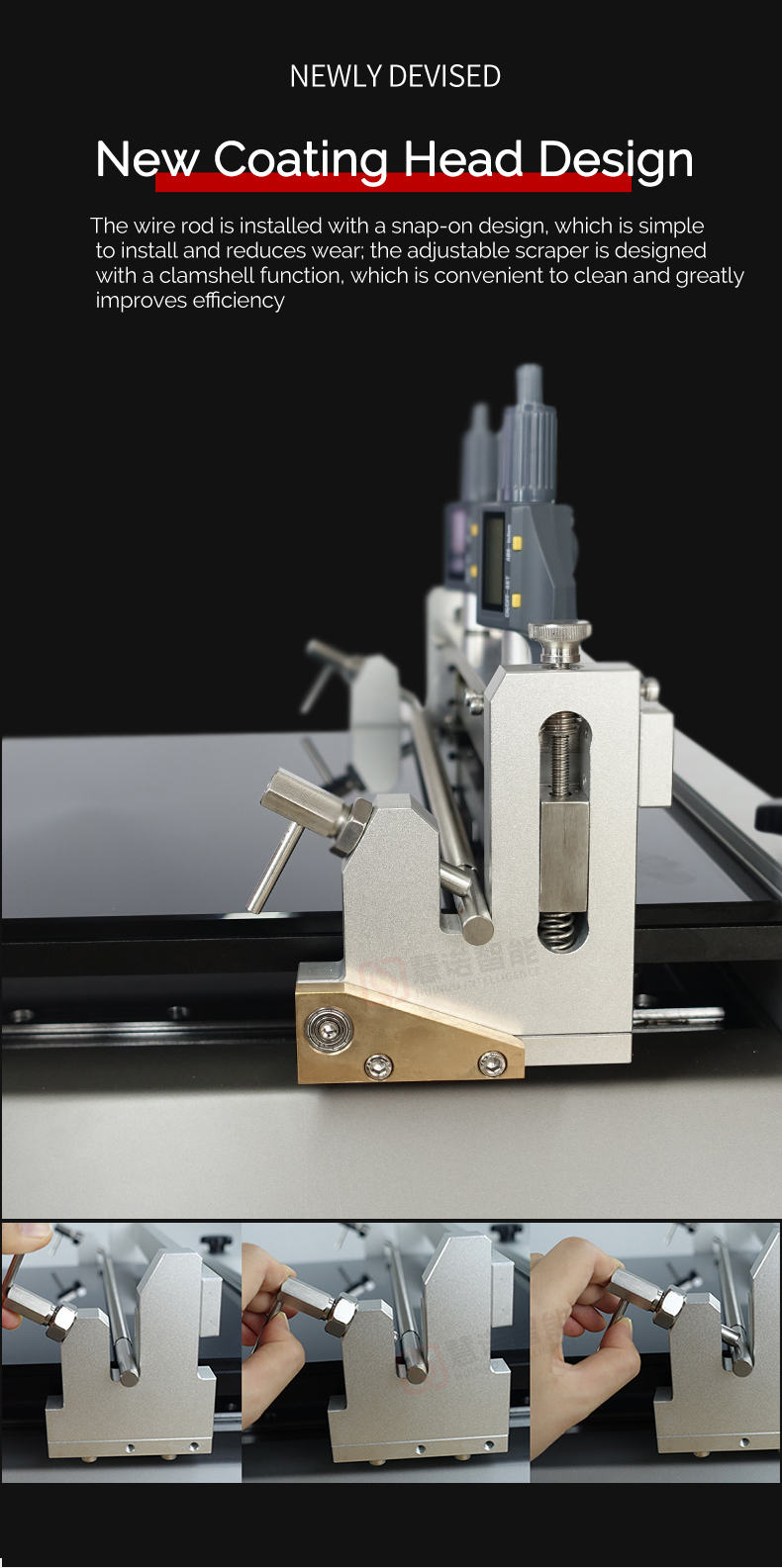

- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade type
- Adjustable drawdown blade
- Drawdown blade material
- Die steel
- Effective width of drawdown blade
- 300Mm (can be customized)
- Cutting head fixing method
- Magnetic suction type (customized)

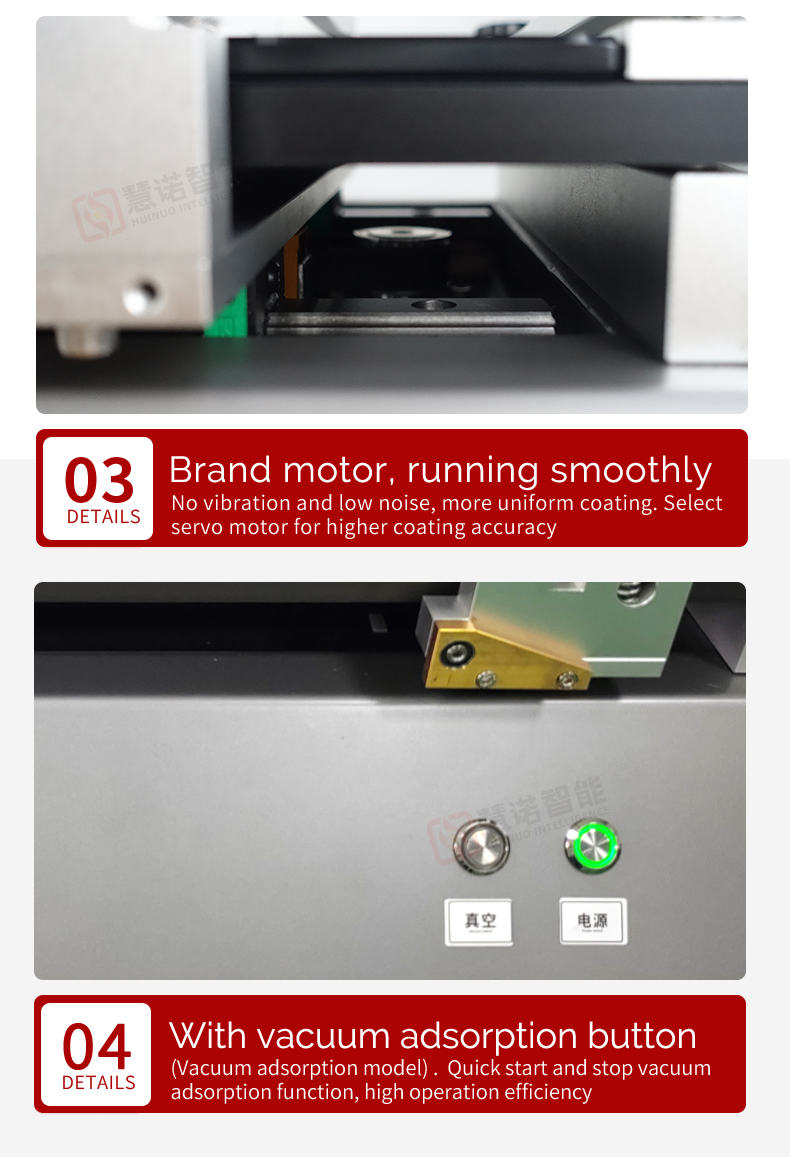

- Drive motor
- Servo motor
- Power
- 400w
- display screen
- Color LCD Touchscreen
- Operating language
- Chinese (can be customized in English)
- Host power supply
- 100V~220V/50~60HZ
- Dimension
- Subject to the actual product
TM2000pro/06
Automatic Film Applicator
The coating speed is adjustable in the range of 1 to 500 mm per second, the film accuracy is up to +/- 0.002 mm, and the servo motor drive and color LCD Touchscreen control are used for convenient operation and stable accuracy.
FAQ
QI want to do lithium ion battery Electrode Stock Spreader experiment, need a Film Applicator, what do you recommend?
A
The TM2000Pro/06 Automatic Film Applicator uses a scraping method, and the coating speed can be precisely adjusted in the range of 1~ 500mm/S, which is very suitable for simulating the Spreader process under different process conditions. Its high film accuracy of +/- 0.002mm ensures uniform Electrode Coating thickness, which is essential for the electrochemistry performance of the battery. Servo motor drive ensures smooth operation and Repeatability.
