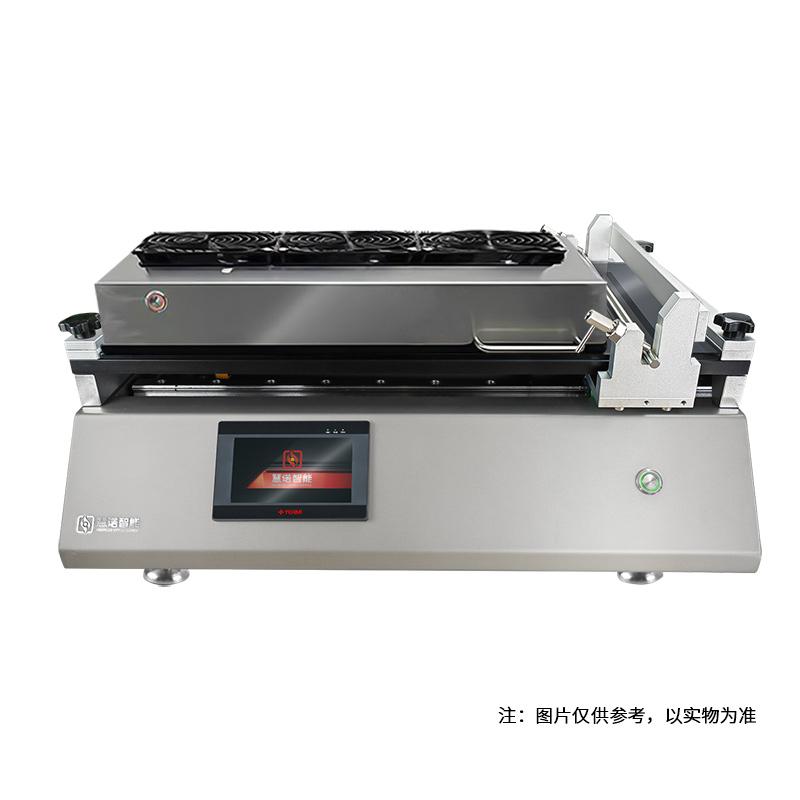

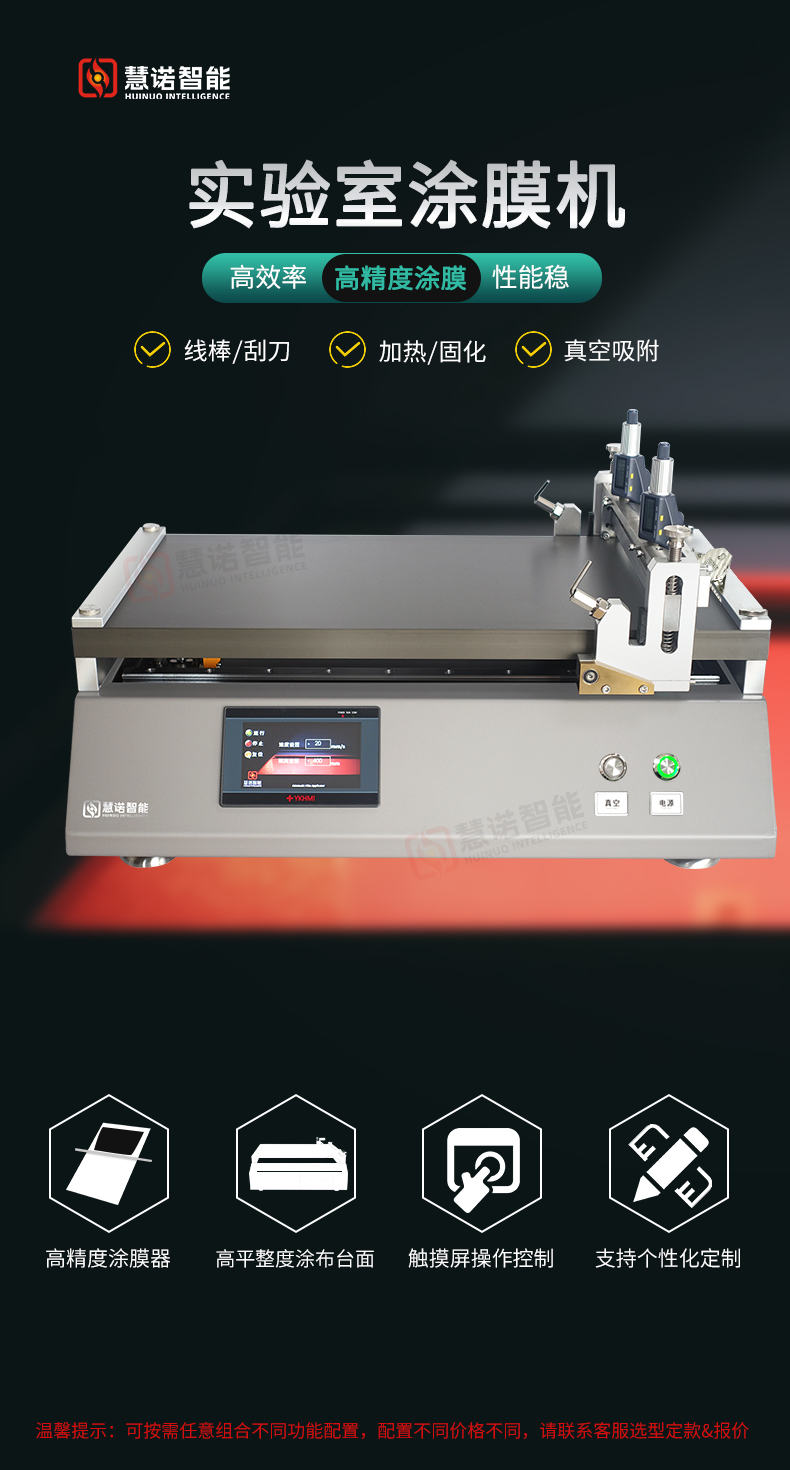

HuiNuo TM1300UVpro Automatic Film Applicator bar Spreader heating Vacuum chuck UV curing ECA 40 * 30cm
TM1300UVpro
HuiNuo TM1300UVpro Automatic Film ApplicatorSPEC
HuiNuo TM1300UVpro Automatic Film ApplicatorDetails
HuiNuo TM1300UVpro Automatic Film ApplicatorPacking list
- SKU
- NB050794
- coating method
- Rod

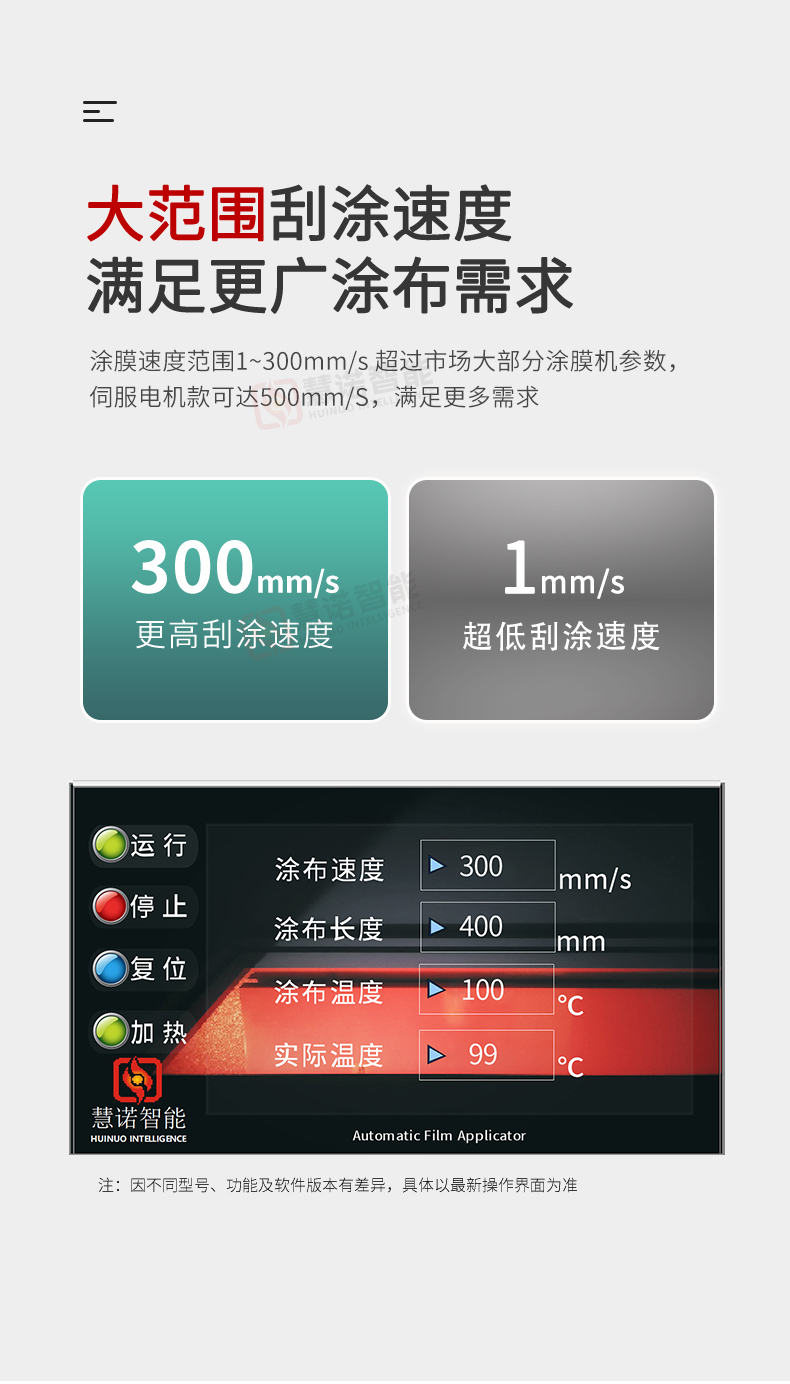

- coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 640*330mm
- effective coating area
- 400 * 300Mm (can be customized)
- meyer rod coating thickness range
- Different bar sizes have different thicknesses, with High Accuracy imported bars
- meyer rod coating accuracy
- ±0.001mm
- Vacuum Area
- 480 * 260Mm (can be customized)
- Vacuum aperture diameter
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Vacuum pump pumping rate
- 5.4m3/h
- Ultimate vacuum degree
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump weight
- 7.1kg
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating Temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Drive motor
- Servo motor
- Curing method
- UV UV curing
- UV curing area
- 400*300mm
- UV light main peak wave
- 365nm
- UV Light Power
- 400*2W
- UV light curing wavelength
- 350-450nm
- switch
- Aviation plug/separate switch
- Illuminant distribution spacing
- 18*18mm
- Light type
- LED
- Operating language
- Chinese (can be customized in English)
- display screen
- Color LCD Touchscreen
- Host power supply
- 220V/50HZ (can be customized 110V/60HZ)
- Power
- 2000W
product description
The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications

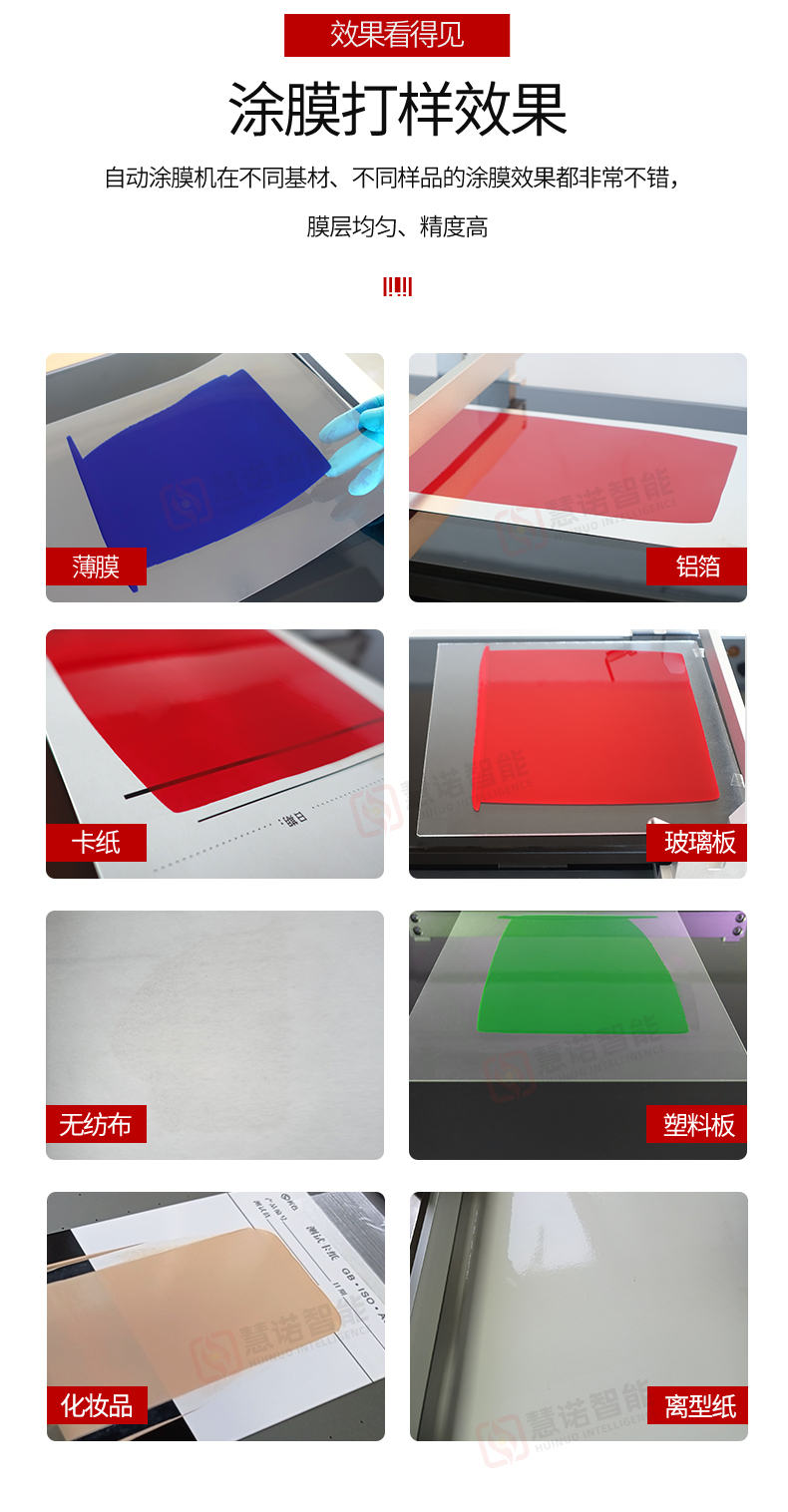

The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.

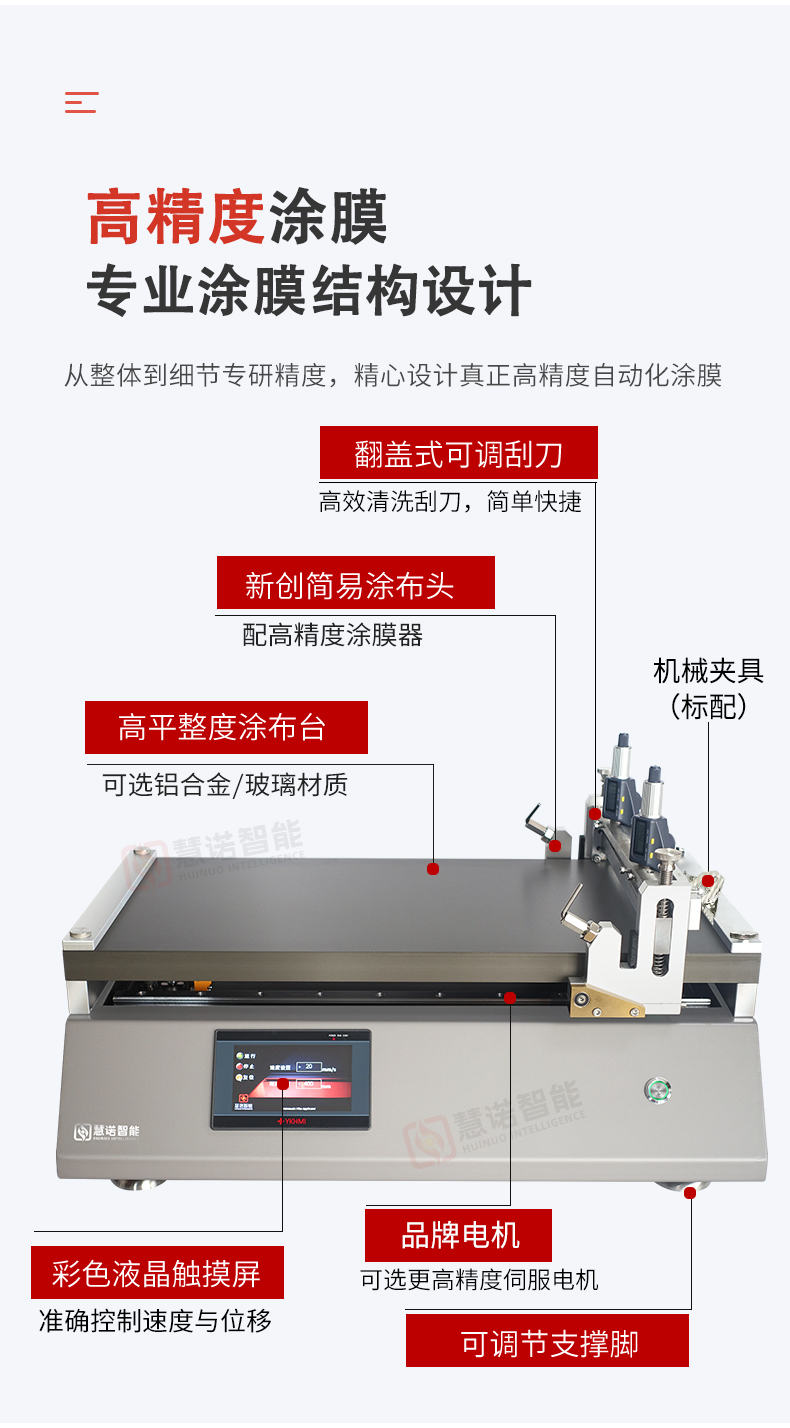

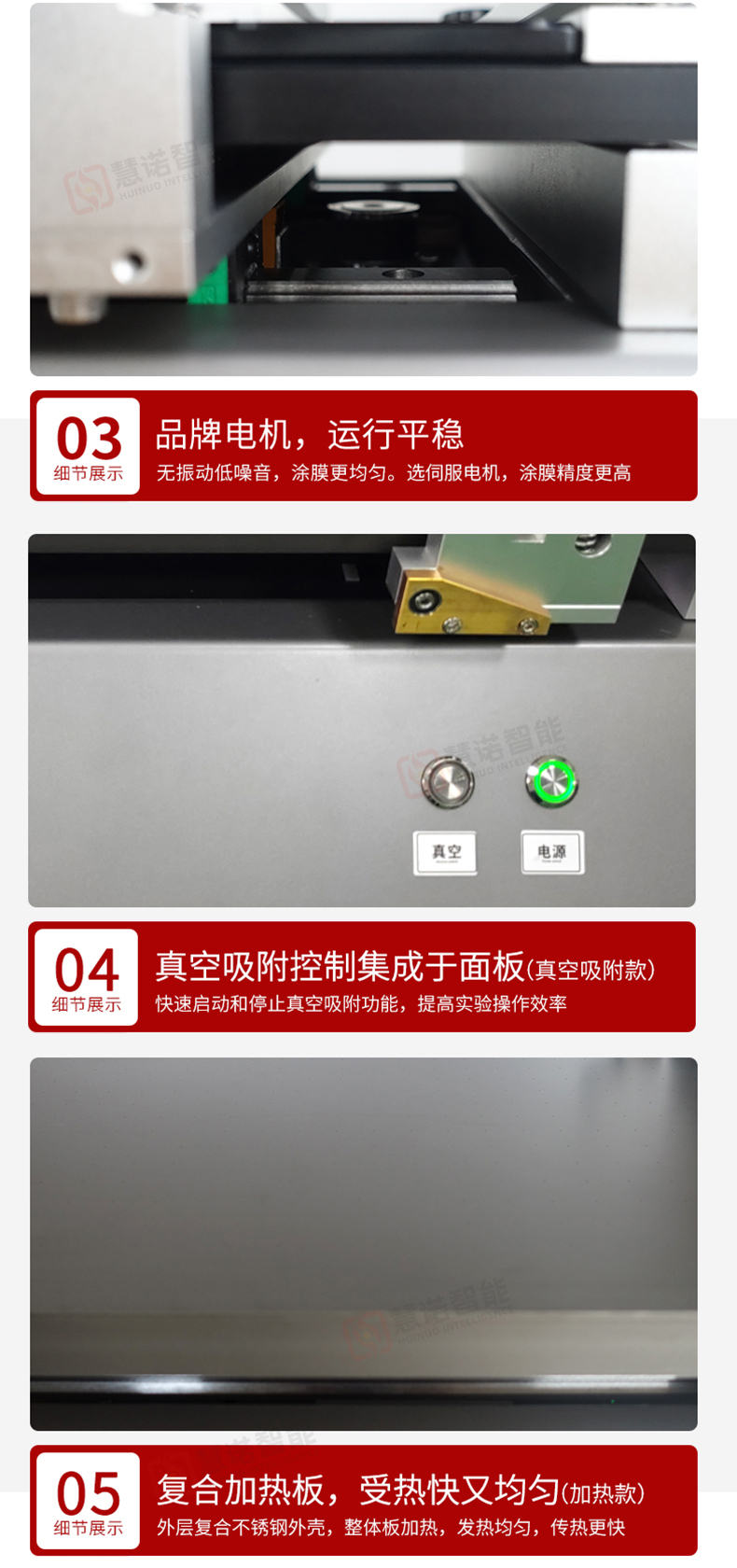

Features

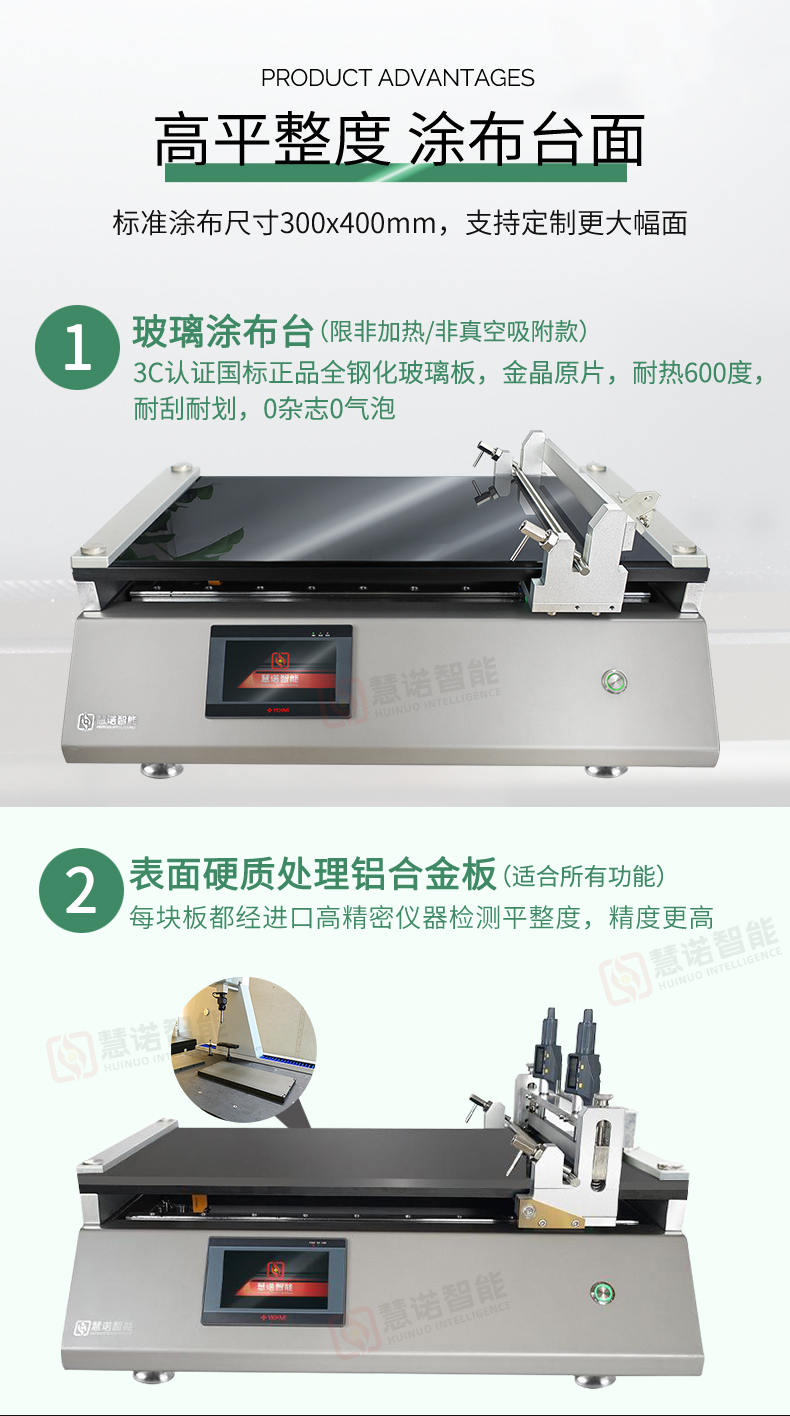

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Big brand differential regulator, high film thickness control accuracy

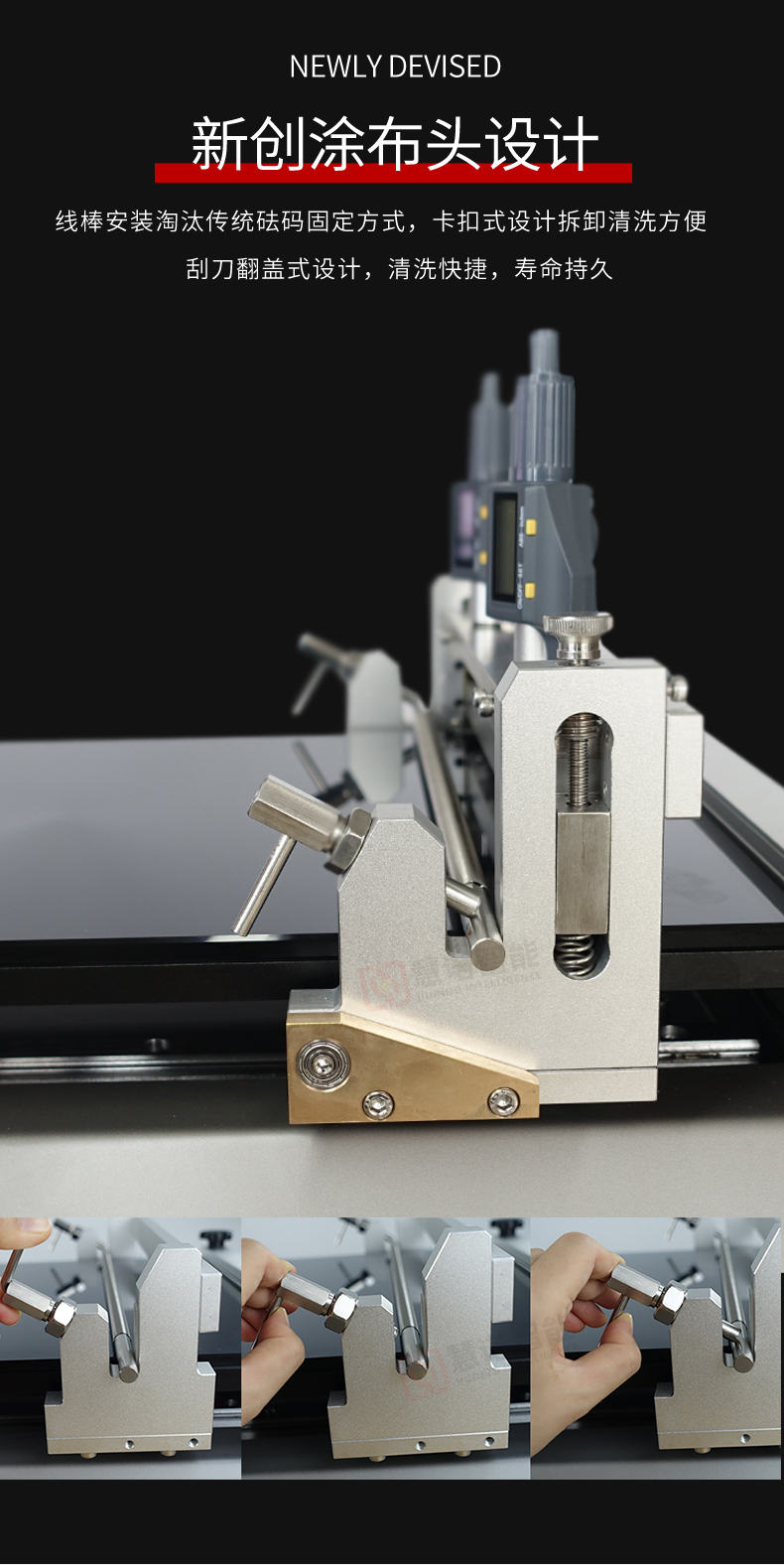

3) Flip-type doctor blade coating head, easy to clean

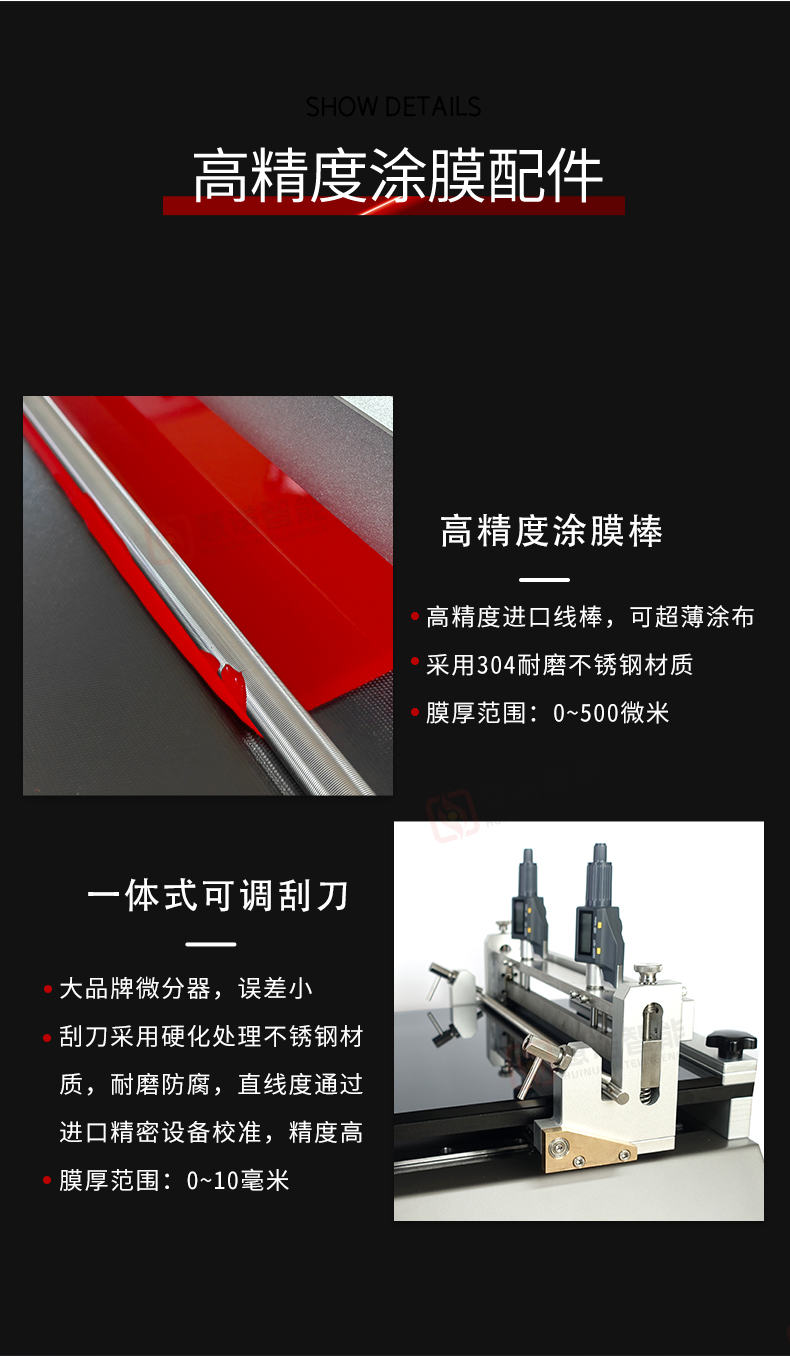

4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely
