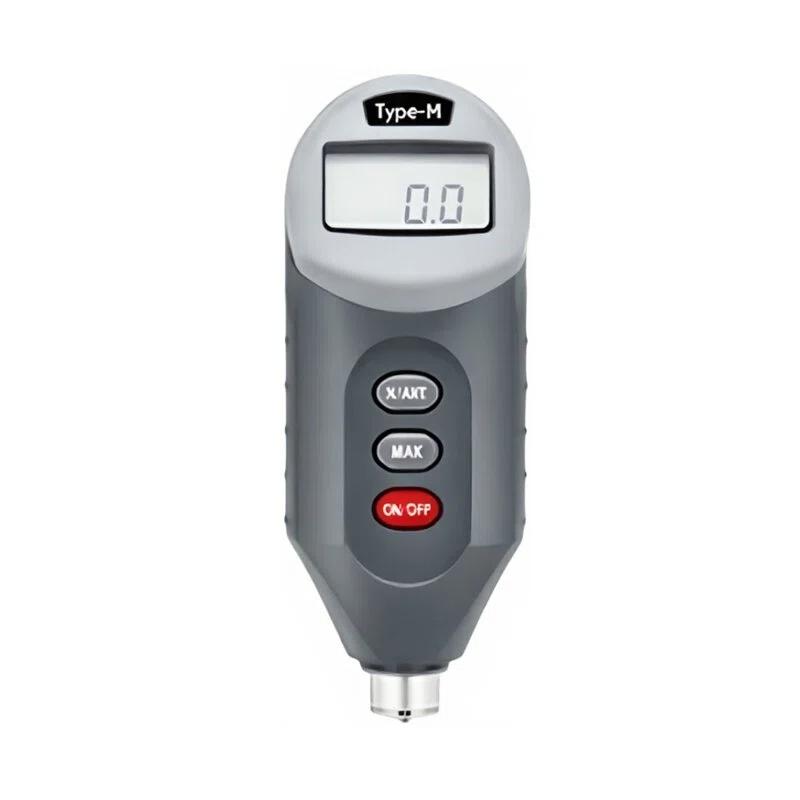

HBO HS-M digital display M type rubber hardness gauge for thin irregular samples

HS-M

Digital M type rubber hardness gauge

Suitable for thin and irregular samples, with real-time, peak, timing and average multiple Measurement modes, Measurement range 0-100HM, resolution 0.1HM, can be connected to the computer for data management and analysis.

Product Introduction

HS-M is suitable for the hardness measurement of thin and irregularly shaped rubber, O-rings, thermoplastic elastomers and plastic specimens. Equipped with dedicated host computer operation software, it can be connected to the computer to do data storage, analysis, export, query and printing functions. It is widely used in various quality testing, physical experiments, engineering testing and other fields.

This machine is carried out with reference to the ASTM D2240 standard.

Key features:

1. Specializes in testing thin samples

2. LCD screen display, more intuitive readings

3. Real-time mode: real-time change of test hardness value display

4. Peak mode: Records the peak hardness during the test

5. Automatic timing mode: the force holding time during the test process can be set (e.g., the hardness value is read after the vulcanized rubber force is maintained for 3 seconds, and the hardness value is read after the thermoplastic rubber force is maintained for 15 seconds).

6. Average mode: The number of trials can be set

7. Auto shutdown function

8. Host software: Chinese WINDOWS interface

           The test results are displayed in a variety of coordinate curves: real-time hardness value-time, hardness peak-number of times, and chronograph hardness value-times

           Qualified judgment: In addition to automatically obtaining test results, qualified judgments can also be made according to the qualified range of preset standard values

           Automatic storage: Experimental data and curves are automatically stored in the computer, and the number of storage is unlimited

           Test data: The test data can be queried and exported to Excel format

           Test report: The test report can be prepared in the format required by the user, and the report can be formed and printed

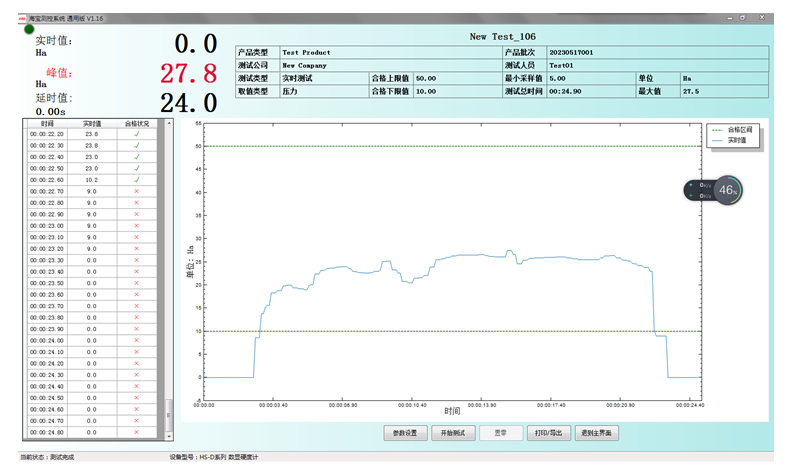

Host computer software display

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
