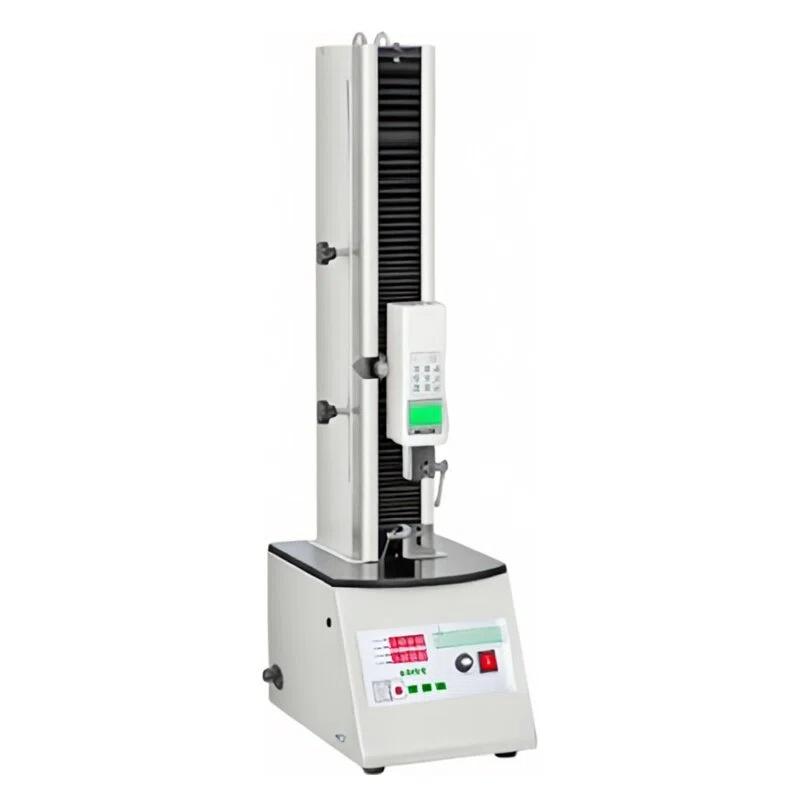

HBO HDE-500 + HF-2 Electric Single Column Universal Testing Machine Double Guide Rod Structure Motor Drive

HDE-500+HF-2

Electric Single Column Universal Testing Machine

Test speed 0-500mm/min stepless adjustable, with pull-off stop, force value maintenance, set force value round-trip movement and upper and lower limit qualified judgment and other practical functions.

Product Introduction

This testing machine adopts double guide rod structure and motor drive. It is suitable for tensile pressure load testing, insertion and removal force testing, failure testing, etc. of various products, and can realize a variety of practical functions such as pull break and stop, force value maintenance, applied force limit, fatigue test, etc.

It is widely used in various quality testing, physical experiments, engineering testing and other fields, and is equipped with dedicated host computer operation software to connect to the computer to do data storage, analysis, export, query and printing and other functions.

Key features:

• Dual-screen display, Chinese and English display of the operation interface is optional, and the display test content can be flipped 180 degrees, which is convenient for multi-angle observation

• Value type: real-time force value tracking, peak hold, first peak, key pressure-rebound force

• Four trial modes: automatic counting, automatic timing, manual counting, manual timing

• The test speed is adjustable

• It can be jogged and run automatically, which is convenient for adjusting the upper and lower positions of the fixture before the test

• The pause time can be set during the batch test of specimens, and the sample clamping time can be customized

• The loading force can be set (the force value can be controlled), and the beam will remain still when the preset force is reached (the holding time can be set) or return to the origin

• Force holding function: The loading force holding time can be set freely

• Set force value round-trip motion function: When the device runs to the specified force value, the reciprocating motion, the force value, holding time, and number of movements can be set freely

• Pull pressure break and stop function: After the measured object is released, the beam remains still or returns to the original point

• Equipped with limit protection device and leakage protection device

• Test direction display (pull, thrust)

• The upper and lower limit comparison values can be set to make data qualification judgments, and there are audible alarms and level signal outputs

• Store 200 sets of test data, and automatically calculate the average, maximum and minimum values of the stored data

• RS232 and USB dual interfaces, which is convenient to connect with industrial computer PLC and PC terminals

• Host software: Chinese WINDOWS interface

             The test results are displayed with a variety of coordinate curves: real-time force value-time, peak force value-number of times, and first peak-number of times

             Qualified judgment: In addition to automatically obtaining test results, it can also make qualified judgments and batch test pass rates according to the qualified range of preset standard values

             Automatic storage: Experimental data and curves are automatically stored in the computer, and the number of storage is unlimited

             Test data: The test data can be queried and exported to Excel format

             Test report: The test report can be prepared in the format required by the user, and the report can be formed and printed

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
