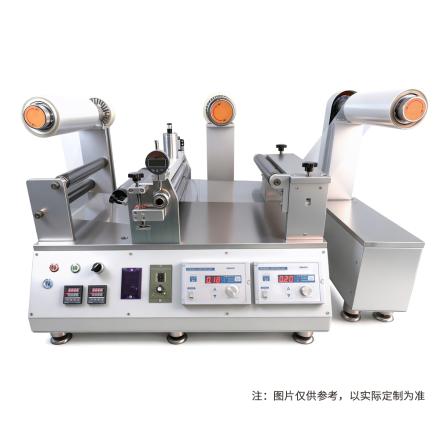

Specifications
| Process flow | Unwinding → Scratching (heating in the trough) → Laminating → Unwinding |
| Spreader mode | continuous scratch coating |
| Effective Spreader Width | ≤ 300mm, adjustable through baffle |
| Spreader mode | Scratch (comma scraper) |
| Spreader roller diameter | Ф50mm |
| Spreader roll accuracy | Straightness, roundness, coaxiality, runout < 0.002mm Ra0.05 |
| Spreader Film thickness range | 0.01mm~2mm |
| Film thickness | 0.01Mm (depending on the slurry, refer to the material requirements) |
| Coating surface density | ≤ +/- 1.5% (including substrate, excluding edge anomalies) |
| Spreader rate | 2~ 4.5M/min forward and reverse stepless transmission |
| Drive motor | Asynchronous induction motor |
| Film accuracy | +/- 0.003mm (depending on slurry, reference material requirements) |
| Regulator resolution | 0.001mm |
| Indication display | digital display |
| Heating device | trough heating |
| Heating method | Heating rod |
| Temperature range | RT+~200℃ |
| box volume | About 0.5L |
| Width of guide roller | 300mm |
| substrate width | Max.300mm |
| Back roller diameter | Ф150mm |
| Reel diameter | 3 inches. |
| rewinding diameter | Unwinding Max. < unk > 400mm; Unwinding Max. < unk > 600mm |
| Tension controller | Unwinding control × 2; unwinding control × 1 |
| Applicable materials | Lithium battery, glue, silicone oil, UV, inks, cataplasm, hot-melt adhesive, gel, plaster, slurry, etc |
| Applicable substrate | Paper, film, aluminum foil, plastic, non-woven fabric, etc |
| Machine power | 2000W |
| Host power supply | AC220V (single phase) 50Hz |
| Machine size | 1624 * 635 * 750mm (subject to actual customization) |
| Machine weight | About 120kg (subject to actual customization) |
| correction module | / |
| power | 150w |
| reaction time | 4ms |
| function | Real-time display of material deviation |
| processor | Main frequency 48MHz |
| Sensor | Ultrasonic Sensor |
| wide | 300mm |
| UV curing module | / |
| UV curing area | Length 500mm * 300mm |
| UV curing lamp source | 365Nm wavelength mercury lamp/LED (the height of the lamp source is adjustable, the height range: 5cm~ 30cm) |
| UV curing time | Max.5min |
| Tunnel oven module | / |
| Temperature range | RT~200℃ |
| Heating system | Infrared tube heater + centrifugal blower + PT100 thermistor |
| Temperature control algorithm | PID control algorithm |
| Chill down module | / |
| Chill down | Stainless steel roller contact chilling down |
| Heat medium | Pumping circulating water |
| Heat dissipation method | Fan cooling chilled down |
| Ion wind static removal module | / |
| ion generation mode | Corona discharge, pulsed AC |
| output voltage | 7.2KV |
| compressed air pressure | 30-75psi |
Packing list
Equipment machine × 1, comma scraper x1, air knife x1, power cord × 1, UV curing module x1, drying channel module x1, chill down module x1, ion wind static removal module x1, warranty card & manual x1, certificate x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50873/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
