AMITTARI AT-140H Ultrasonic Speed of sound instrument

AMITTARI AT-140H Ultrasonic Speed of sound instrument Speed of sound range 500~9000 m/s, set thickness 0.70-50 mm, Measurement accuracy 0.5% H + 0.2 (H is the thickness of the measured material), display unit mm and inch
Model：
Certificate
Contact
Details SPEC
Similar products

AMITTARI AT-140H Speed of soundSPEC

AMITTARI AT-140H Speed of soundDetails

AMITTARI AT-140H Speed of soundPacking list

SKU
NB005122
Resolution
0.01
Speed of sound
500~9000 m/s
set thickness
0.70-50.00mm
Measurement Accuracy
0.5% H + 0.2 (H is the thickness of the material being tested)
Operating Conditions
Temperature -5~ 45 ℃, Humidity < 85% RH
Display unit
Millimeters and inches
shutdown
Manual shutdown and automatic shutdown
Power
4X1.5v No. 7 battery
Dimensions
140*70*30mm
Weight
130G (without battery)
AT-140H
Speed of sound
AMITTARI AT-140H Ultrasonic Speed of sound instrument Picture

Ultrasonic sound velocity meter is divided into two models: AT-140H and AT-140S. AT-140H is suitable for hard materials such as metal and plastic; AT-140S is suitable for soft materials such as wood and rubber. Using professional microcomputer integrated circuits and crystal materials, the measurement is more accurate. It has strong transmitting power and high broadband receiving sensitivity. It can adapt to probes of different frequencies, so it can measure severely corroded rough surfaces and even some gray cast iron, and its application range covers almost all industrial industries.

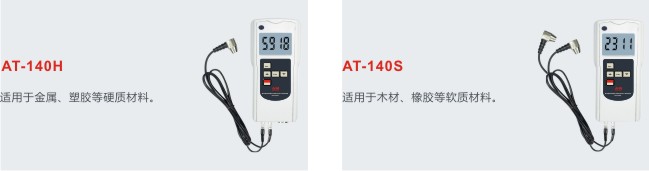

AMITTARI AT-140H ultrasonic sound velocity meter details picture 1

Features

* Has coupling status prompt function.

* With automatic shutdown and manual shutdown functions.

* Automatically memorize material code and sound velocity value for easy use.

* Use USB data cable output to communicate with PC.

* Provide Bluetooth data output selection.

FAQ
QThe steel plate of the test surface here is pressed into a curved surface, and the axial section has elliptical arcs and circular arcs. The material is stainless steel with a thickness of 3 mm to 14 mm. Do you know if AT-140H is suitable?
A Measure thickness or Speed of sound? If measuring thickness with AT-140A and AT-140B
QCan AT-140H measure the thickness of steel plates? Below 30mm
A Speed of sound, it is recommended that AT-140A and AT-140B can be measured
