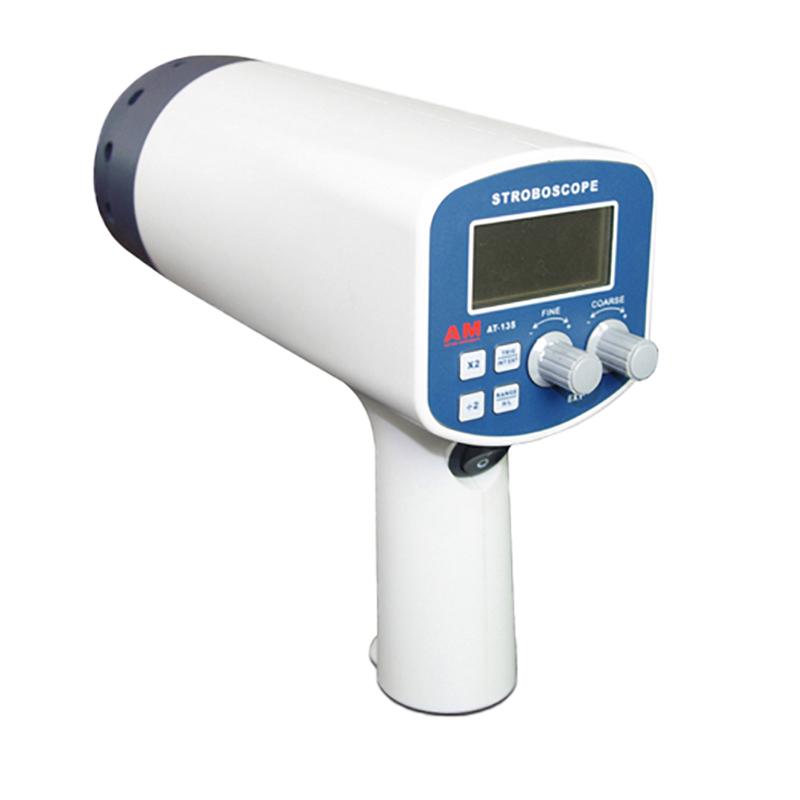

AMITTARI AT-135A Stroboscopic Rotation speed instrument, stroboscopic instrument 50~12000FPM
SE
AT-135A
AMITTARI AT-135A Rotation speed stroboscopic meterSPEC
AMITTARI AT-135A Rotation speed stroboscopic meterDetails
AMITTARI AT-135A Rotation speed stroboscopic meterPacking list
- SKU
- NB005127
- Resolution
- 0.1FPM (below 1000FPM); 1FPM (above 1000FPM)
- test range
- 50~12000FPM
- Measurement Accuracy
- ±（0.05%n+1d）
- Sampling time
- : 0.3 seconds
- Internal trigger/external trigger
- Free conversion
- External trigger signal amplitude
- TTL level
- Fast FM
- ×2，÷2
- High and low range
- convertible
- Normal Operating Conditions
- Non-corrosive gases and strong electromagnetic fields
- Environmental temperature
- 0℃-40℃
- Relative Humidity
- Less than 85% RH
- Flashing Lamp life
- 100 million times
- Power
- AC 220 +/- 10% V, 2A, 50Hz; AC 110 +/- 10% V, 2A, 50HZ
- power consumption
- Approximately 50W.
- Dimensions
- 210*85*185mm
- Weight
- 660g
AMITTARI stroboscope is used to detect the rotation speed and movement frequency of objects (such as motors) (printed bags). The stroboscope can also be used to analyze the vibration of objects, the movements of high-speed moving objects, and high-speed photography.
Features
* Digital display, no parallax; wide measuring range, high resolution.
* Automatic flash stop and other functions save electricity and increase the service life of the strobe light.
* Quick conversion of internal trigger/external trigger selection; double frequency and half frequency fast frequency modulation function.
* When working in external trigger mode (using photoelectric signals), the automatic tracking function of the pattern can be realized.
* Using multiple professional technologies such as microcomputer technology, flash technology and anti-interference technology, the speed value can be accurately measured without contact.
