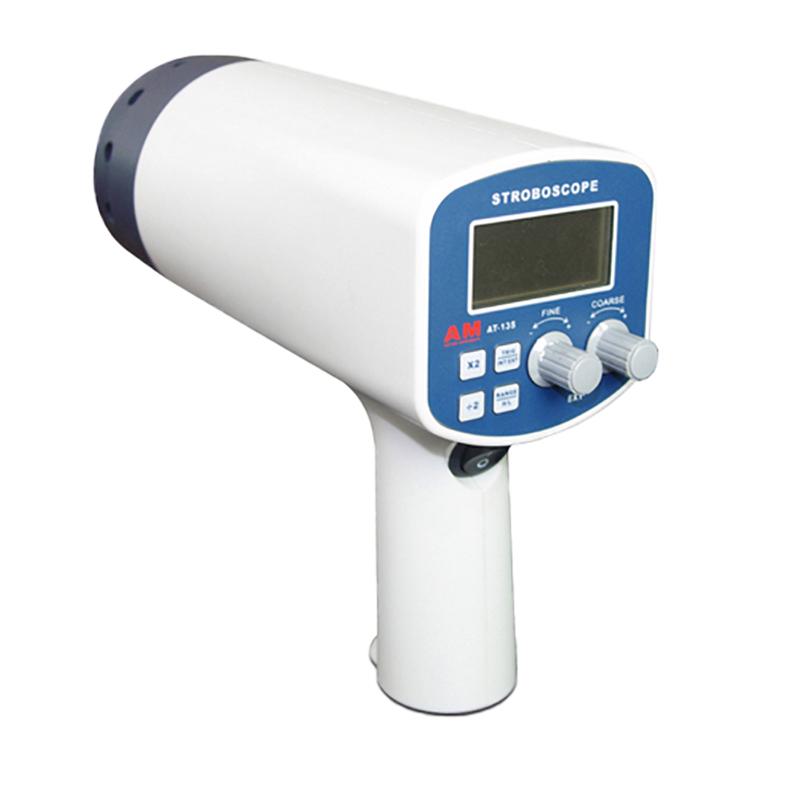

AMITTARI AT-135B Stroboscopic Rotation speed instrument, stroboscopic instrument 50~40000FPM

AMITTARI AT-135B Strobe Rotation speed instrument test range 50~40000FPM, Measurement accuracy +/- (0.05% n + 1d), Sampling time: 0.3 seconds, internal trigger/external trigger free conversion, external trigger signal amplitude TTL level, fast FM × 2, ÷ 2, high-low range can be converted

$332.00/set

PromotionLoading...

Coupon

Model：

AT-135B

Certificate

AMITTARI

Manufacturer authorization

Contact

Details SPEC Con CAT

AMITTARI AT-135B Rotation speed stroboscopic meterSPEC

AMITTARI AT-135B Rotation speed stroboscopic meterDetails

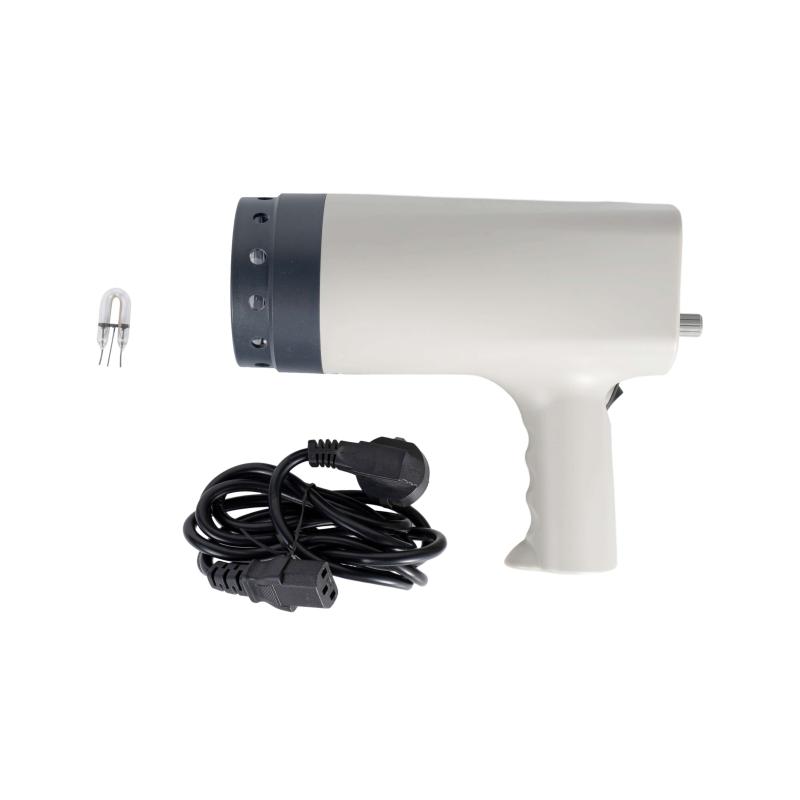

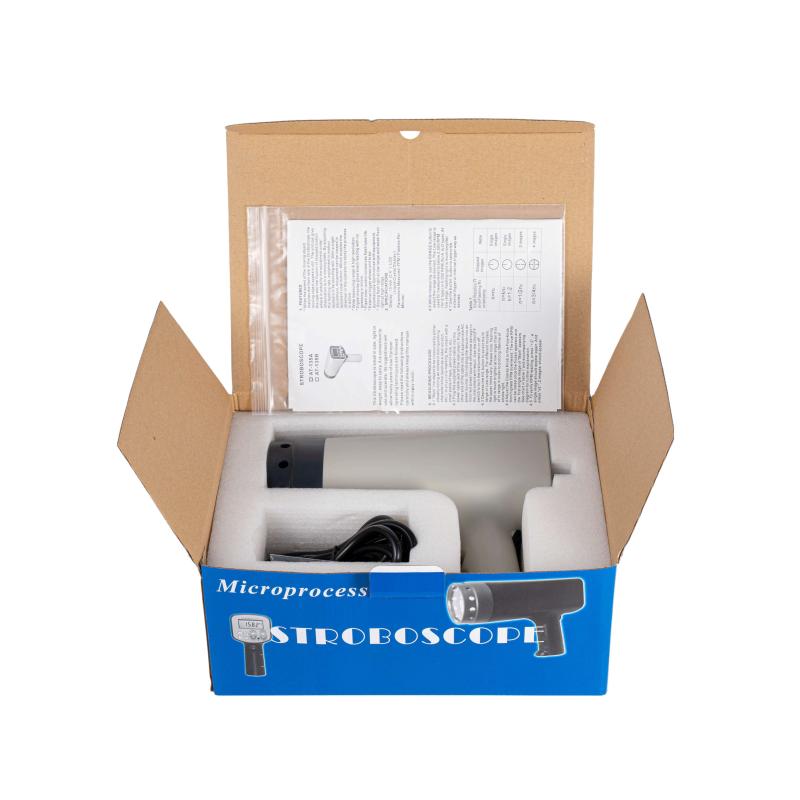

AMITTARI AT-135B Rotation speed stroboscopic meterPacking list

SKU: NB005128

Resolution: 0.1FPM (below 1000FPM); 1FPM (above 1000FPM)

test range: 50~40000FPM

Measurement Accuracy: ±（0.05%n+1d）

Sampling time: : 0.3 seconds

Internal trigger/external trigger: Free conversion

External trigger signal amplitude: TTL level

Fast FM: ×2，÷2

High and low range: convertible

Normal Operating Conditions: Non-corrosive gases and strong electromagnetic fields

Environmental temperature: 0℃-40℃

Relative Humidity: Less than 85% RH

Flashing Lamp life: 100 million times

Power: AC 220 +/- 10% V, 2A, 50Hz; AC 110 +/- 10% V, 2A, 50HZ

power consumption: Approximately 50W.

Dimensions: 210*85*185mm

Weight: 660g

AT-135B

Rotation speed stroboscopic meter

AMITTARI stroboscope is used to detect the rotation speed and movement frequency of objects (such as motors) (printed bags). The stroboscope can also be used to analyze the vibration of objects, the movements of high-speed moving objects, and high-speed photography.

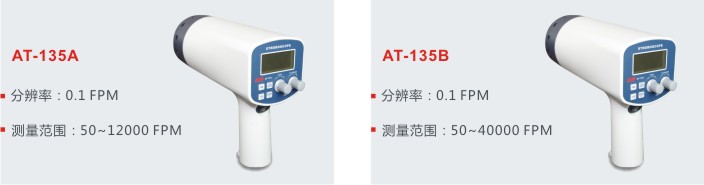

AMITTARI AT-135B stroboscopic tachometer details picture 1

Features

* Digital display, no parallax; wide measuring range, high resolution.

* Automatic flash stop and other functions save electricity and increase the service life of the strobe light.

* Quick conversion of internal trigger/external trigger selection; double frequency and half frequency fast frequency modulation function.

* When working in external trigger mode (using photoelectric signals), the automatic tracking function of the pattern can be realized.

* Using multiple professional technologies such as microcomputer technology, flash technology and anti-interference technology, the speed value can be accurately measured without contact.
