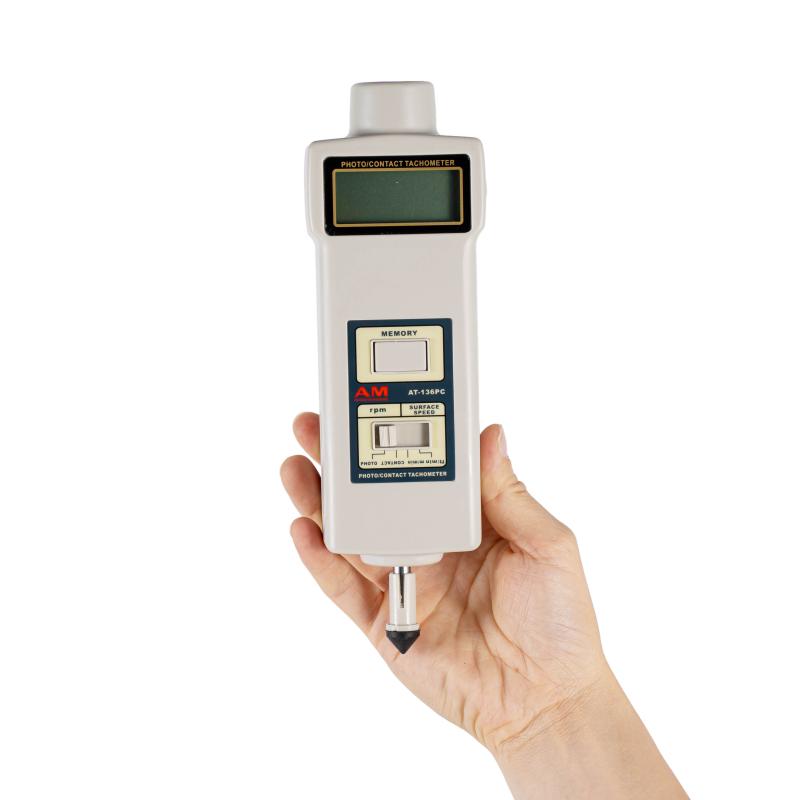

AMITTARI AT-136PC Multifunctional Rotation speed meter, photoelectric contact dual-use Rotation speed Measurement Instrument
SE
AT-136PC
AMITTARI AT-136PC Rotation speed meterSPEC
AMITTARI AT-136PC Rotation speed meterDetails
AMITTARI AT-136PC Rotation speed meterPacking list
- SKU
- NB005129
- Measuring range
- Laser: 2.5-99,999 r/min; Contact: 0.5-19,999 r/min; Line speed: 0.05-1999.9m/min; 0.2-6560ft/min
- Photoelectric distance measurement
- 50-600mm
- Accuracy
- :±(0.05%n+1d)
- resolution
- Speed: 0.1 rev/min (0.5~ 999.9 rev/min) 1 rev/min (above 1000 rev/min); Line speed: 0.01 m/min (0.05~ 99.9 m/min) 1 m/min (100 m/min or more) or 0.1 feet (0.1~ 999.9 feet/min) 1 inch (1000 inches/min or more)
- Measurement Accuracy
- ±（0.05%n+1d）
- Sampling Time
- 1.0 seconds (under 60 rpm)
- Range selection
- Automatic switching
- Memory function
- MAX Maximum, MIN Minimum and last measurement during automatic memory measurement
- time base
- Quartz crystal
- Effective distance
- 50~150mm (typical) up to 300 mm depending on luminous tube brightness
- Power

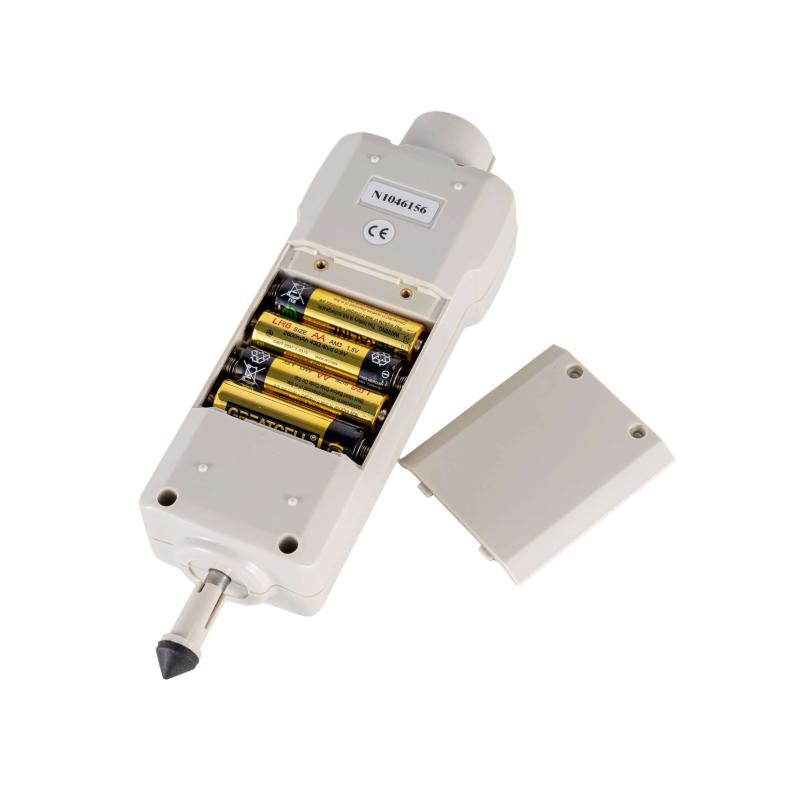

- 4X1.5vAA (UM-3 battery)
- Dimensions
- 210*60*38 mm
- Weight
- 180G (without battery)
An Miao tachometer is used to measure the rotational speed, linear speed or frequency of the motor; it is widely used in the manufacturing industries of motors, electric fans, papermaking, plastics, chemical fibers, washing machines, automobiles, aircrafts, ships, etc.
Features
* Wide measurement range, high resolution; digital display, no parallax.
* Automatically memorize the maximum, minimum and last measured value during the measurement period.

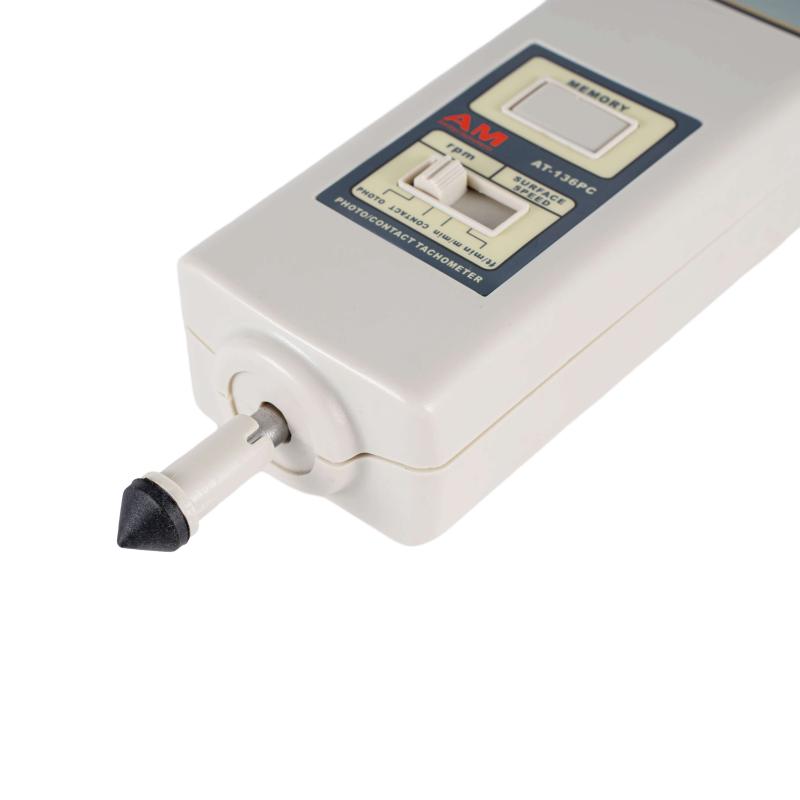

* Multifunction. It can be used as a photoelectric tachometer for non-contact speed measurement (r/min); it can also be used as a contact tachometer for contact measurement of speed and linear speed (m/min, ft/min).
* Sturdy and delicate structure, easy to carry. The whole machine adopts durable professional electronic components; the outer shell is made of light and hard ABS plastic, which is beautiful in shape and easy to use.
* With automatic shutdown and manual shutdown functions; underVoltage alarm indication function.
