AMITTARI AA-136C Three Cup Anemometer
SE
AA-136C
AMITTARI AA-136C AnemoMetersSPEC
AMITTARI AA-136C AnemoMetersDetails

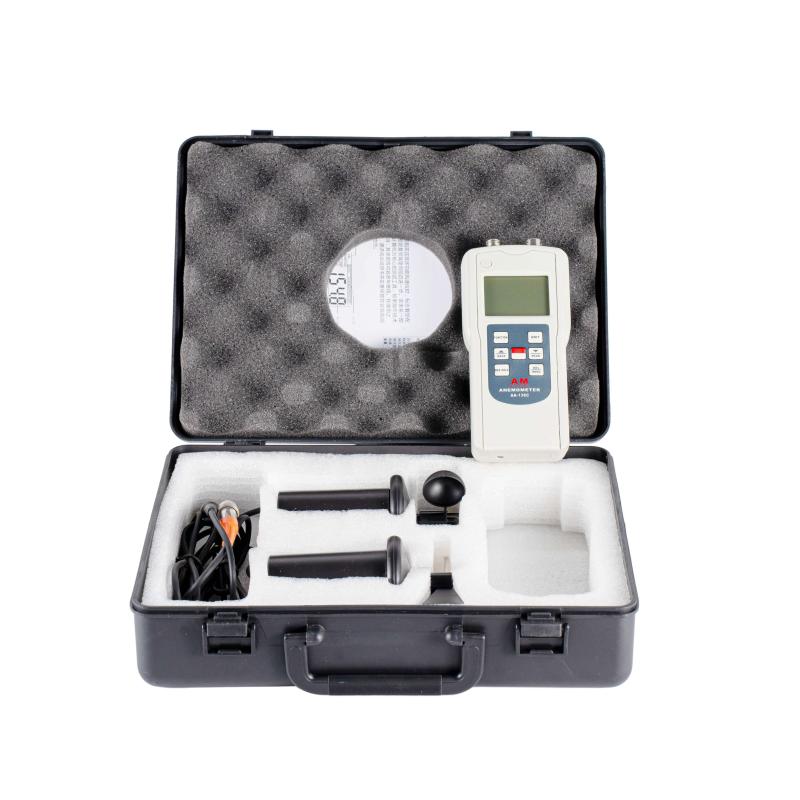

AMITTARI AA-136C AnemoMetersPacking list
- SKU
- NB005133
- Measurement Units
- Flow: CMM (m 3/min); CFM (ft 3/min); Wind Scale: Beaufort Scale; Wave Height: m; Wind Direction: ° Based on due north; Temperature: -10 ℃ - 60 ℃ (14 ° F~ 140 ° F)
- data retention
- MAX Maximum
- Memory
- 24 groups
- Sampling rate
- About 1 second
- Sensors
- Wind speed/flow: 3 cups; wind direction: low friction direction pointer; temperature: thermal resistance
- Automatic shutdown
- Set arbitrarily between 0-9 minutes
- Operating temperature
- -10℃ ~ 50℃(14℉ ~ 122℉)
- Operating humidity
- Up to 80% RH
- Power
- 4X1.5vAAA 7 #battery
- Host size
- 140x70x30mm
- 3 cups Sensors size
- 65x65x115mm
- Direction pointer size
- 86x69x115mm
- Weight
- About 310 grams, including Sensors
Application
Three-cup anemometers are widely used in data collection in boilers, refrigeration, HVAC, ventilation ducts, environmental monitoring, and navigation surveys, as well as data collection in weather forecasts, field and fire departments.
Features
* Multiple measurement unit conversion.
* With maximum value hold function.
* With storage function, can store 24 sets of data.
* High sensitivity and accurate measurement, the sensor adopts ultra-low friction bearing.
* The wind speed measuring handle can be separated from the fuselage for easy measurement.
* Not only can measure wind speed and direction, but also can measure wind temperature, wave height, wind level and wind volume, etc.
* The automatic shutdown function can be set by yourself (adjustable from 0 to 9 minutes).
* Use USB data line output to communicate with PC.
* In addition, an optional Bluetooth data output option is provided.
