AMITTARI AT-171 Split Transmittance meter

High resolution and wide Measurement range, Accurate light transmitance and liquid turbidity measurement, Portable design and One Click Adjustment, USB and Bluetooth data output interface.
Model：
Certificate
Contact
Details SPEC
Similar products

AMITTARI AT-171 Transmittance meterSPEC

AMITTARI AT-171 Transmittance meterDetails

AMITTARI AT-171 Transmittance meterPacking list

SKU
NB005137
Measurement range
0~100%
resolution
0.1
Accuracy
±2%
Light source
LED Light source
Thickness of the measured object
Less than 18mm
operating conditions
Temperature 0~50 ℃ Humidity < 90% RH
Power Supply
4X1.5v AAA 7 #battery
size
Host: 140 * 70 * 30mm Sensors: 125 * 38 * 38mm
Weight
130G (without battery)
AT-171
Transmittance meter
High resolution and wide Measurement range, Accurate light transmitance and liquid turbidity measurement, Portable design and One Click Adjustment, USB and Bluetooth data output interface.

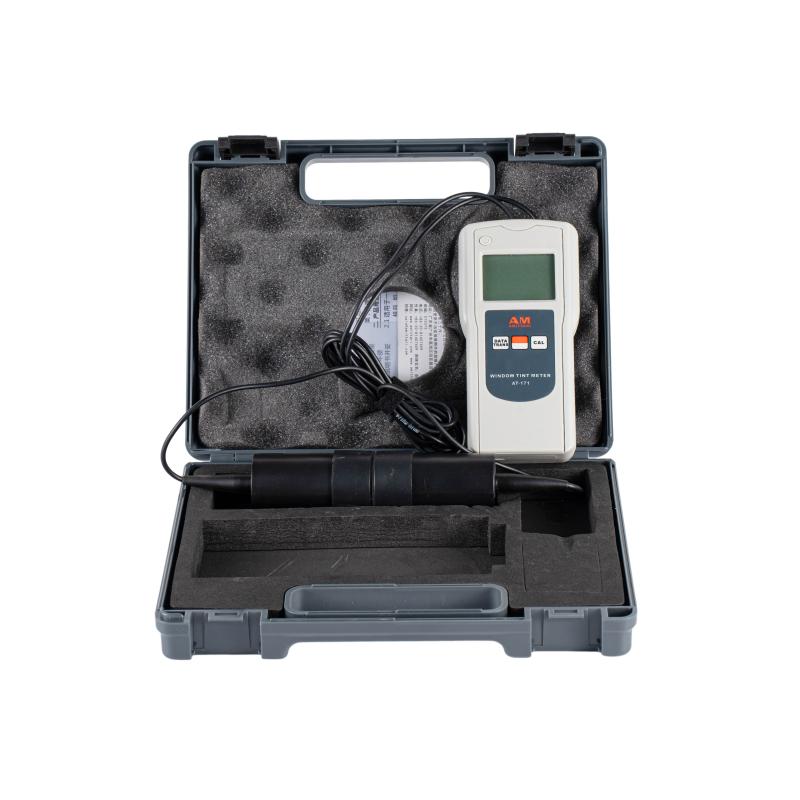

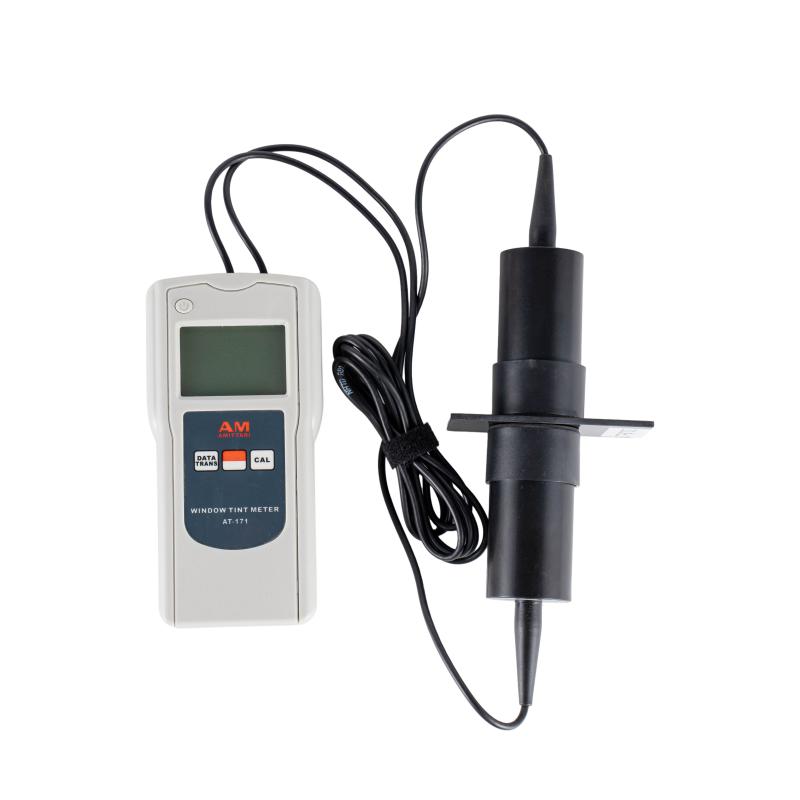

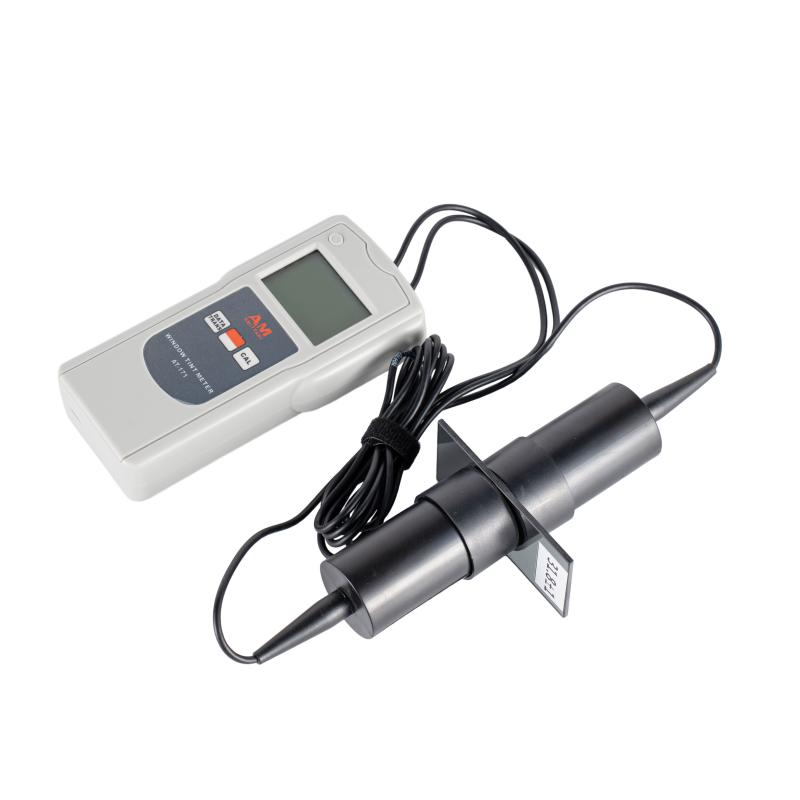

AMITTARI AT-171 Split Transmittance meter Picture

AMITTARI transmittance meter is suitable for all transparent and translucent parallel plane samples (such as automobile manufacturing, aerospace, glass products and other industries, plastic plates, sheets, etc.) transmittance test, liquid samples (water, beverages, etc.) turbidity or clarity determination.

Features

  • This instrument is a portable battery-powered measuring instrument that uses the principle of luminous flux through a transparent or translucent body and its incident luminous flux.

  • The technical design conforms to GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.

  • Digital display, wide measuring range and high resolution.

  • One-click calibration for ease of use.

  • The structure is sturdy, delicate and easy to carry.

  • A USB cable output is used to communicate with a PC.

  • Bluetooth Bluetooth data output options are available.


FAQ
QCan the Transmittance meter be connected to the PC?
A Hello, yes, just use the USB data cable.
