AIC ADW-0501-B Laboratory Ultrapure Water System

American AIC ADW-0501-B laboratory ultra-pure water machine, ultra-pure water machine suitable for basic physical and chemical experiments, first-level reverse osmosis (RO), with 5L/H pure water production, ultra-pure exchange capacity 3000L.
Model:

AIC ADW-0501-B Laboratory ultrapure water machineSPEC

AIC ADW-0501-B Laboratory ultrapure water machineDetails

AIC ADW-0501-B Laboratory ultrapure water machinePacking list

SKU
NB005195
Flow Rate
5L/h
Flow velocity
1.0~1.5 L/min
Pure water quality
Conductivity: 2-10μs/cm25 ℃ (raw water TDS < 200ppm), in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard
Ultrapure water quality
Electrical resistivity 18.25MΩ .cm@25 ℃; particles (> 0.2um) < 1/ml
Pure water storage bucket
40L
Inlet source
Municipal tap water, raw water conductivity < 1000μs/cm@25 ℃, total hardness < 200ppm, PH: 6.5-8, free chlorine < 1ppm
inlet pressure
2-5Kg, water temperature 5-35 ℃
Operating Environment
Temperature 5~ 40 ℃, avoid direct sunlight
Power
220V/50HZ, Power: 350W
Host size
540*380*480mm
Application
Glass dish cleaning, flooring device, autoclaving device, heating pot, hydrogen generator, hydroponics method, wind erosion Tester, chemical oxygen demand, dissolution test, pH value measurement, surface tension test, aquarium
Application standard
ISO9001:2008 Mass management system, NSF and Water Quality Association standards
Produced water quality
tertiary water
ADW-0501-B
Laboratory ultrapure water machine
AIC ADW-0501-B Laboratory Ultrapure Water System Picture

Features

Tap water enters and the water is produced automatically and continuously, which greatly meets the water needs of the laboratory;

Quickly reaches 18.25MΩ stable water quality upon startup, saving water, electricity and time;

The microcomputer chip fully automatically controls the operation of the equipment and meets GLP safety requirements;

Power-on self-check, water shortage protection alarm, automatic reset after power outage, automatic shutdown after the pure Water Tank is full, ultra-low Voltage protection, UV lamp failure alarm and other functions;

Using imported RO membrane, ion exchange resin, polished nuclear grade resin, silent high-pressure pump, solenoid valve, etc., product performance is maximized;

RO automatically flushes and sterilizes regularly to maximize the service life of accessories;

The water quality online monitoring system can instantly measure the quality of produced water.

Features

Important parts are imported with original packaging, and the materials comply with the standards of the American NSF and Water Quality Association;

Strictly implement the ISO9001:2008 quality management system to ensure uniform and stable product quality;

Standardized module design and production make product maintenance more secure;

The "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.

plan

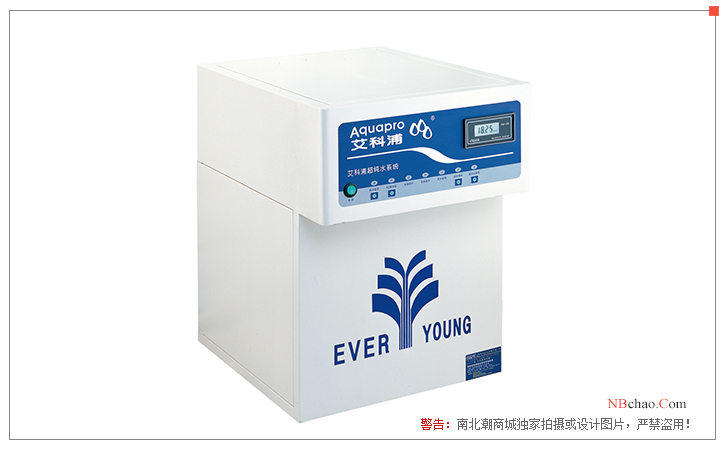

Appearance view of Ecopu ADW-0501-B laboratory Ultrapure Water System

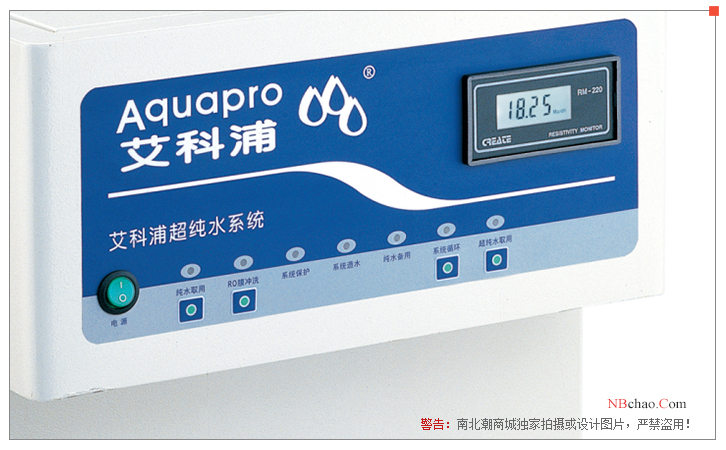

Aikopu ADW-0501-B laboratory Ultrapure Water System panel details

Application

Glass dish cleaning, potter, autoclave, heating pot, hydrogen generator, hydroponics, wind erosion resistance Tester, chemical oxygen demand, dissolution test, pH value measurement, surface tension experiment, aquarium.

ADW-0501-B system configuration list

Serial number

name

Model specifications

quantity

unit

Remark

1

PP fiber filter

Supporting

1

set

Aquapro

2

activated carbon filter

Supporting

1

set

Aquapro

3

booster pump

Supporting

1

set

Aquapro

4

RO membrane module

Water production: 5 L/h

1

set

Aquapro

5

pure Water Tank

40L, PE

1

set

Aquapro

6

Pump

Supporting

1

set

Aquapro

7

purification column

Supporting

1

set

Aquapro

8

Terminal ultrafiltration membrane

Supporting

1

set

Aquapro

9

Product water quality resistance meter

RCT-3200

1

set

ROC

10

Control System

Supporting

1

set

Aquapro

ADW series pure water machine parameter comparison

modelreverse osmosisPure water production volumeultrapure exchange volumeOther parameters of ultrapure waterDimensions (mm)
ADW-0501-BLevel 15L/H3000L

Resistivity 18.25MΩ.cm@25℃,

Particles (>0.2um)<1/ml

480x380x540
ADW-1001-B10L/H
ADW-2001-B20L/H
ADW-4001-B40L/H5000L750x500x1110
ADW-6001-B60L/H
ADW-0502-BLevel 25L/H3000L480x380x540
ADW-1002-B10L/H
ADW-2002-B20L/H750x500x1110
ADW-0501-MLevel 15L/H

Resistivity 18.25MΩ.cm@25℃,

TOC<5ppb,

Microorganisms <1/ml,

Particles (>0.2um)<1/ml

480x380x540
ADW-1001-M10L/H
ADW-2001-M20L/H
ADW-4001-M40L/H5000L750x500x1110
ADW-6001-M60L/H
ADW-0502-MLevel 25L/H3000L480x380x540
ADW-1002-M10L/H560x500x1080
ADW-2002-M20L/H750x500x1110
ADW-4002-M40L/H5000L
ADW-6000-MPurification package60L/H470x280x520
ADW-0501-HLevel 15L/H3000L

Resistivity 18.25MΩ.cm@25℃,

TOC<5ppb,

Microorganisms <1/ml,

Particles (>0.2um) <1/ml,

Bacterial endotoxin<0.001EU/ml

480x380x540
ADW-1001-H10L/H
ADW-2001-H20L/H
ADW-4001-H40L/H5000L750x500x1110
ADW-6001-H60L/H
ADW-0502-HLevel 25L/H3000L480x380x540
ADW-1002-H10L/H560x500x1080
ADW-2002-H20L/H750x500x1110
ADW-6000-HPurification package60L/H5000L470x280x520
