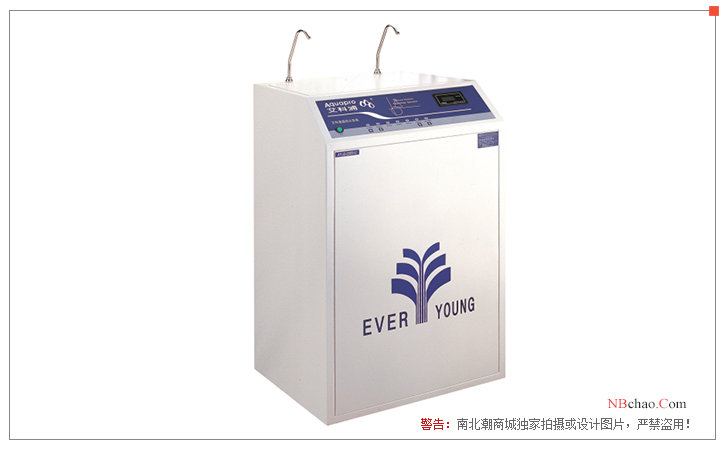

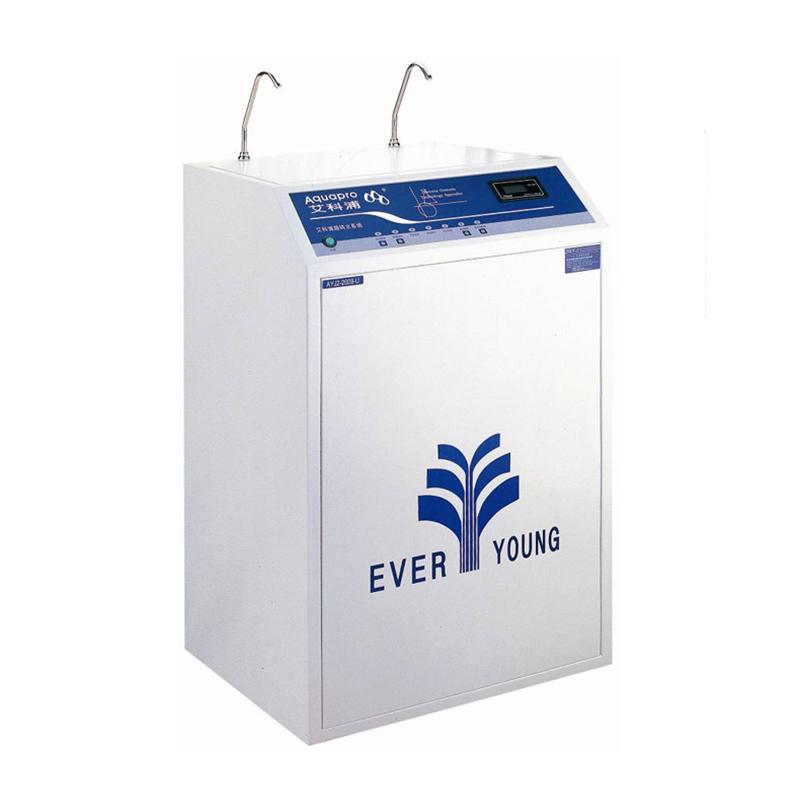

AIC ADW-4001-B Laboratory Ultrapure Water System, Primary Reverse osmosis (RO)
ADW-4001-B
AIC ADW-4001-B Laboratory ultrapure water machineSPEC
AIC ADW-4001-B Laboratory ultrapure water machineDetails
AIC ADW-4001-B Laboratory ultrapure water machinePacking list
- SKU
- NB005198
- Flow Rate
- 40L/h
- Flow velocity
- 1.0~1.5 L/min
- Pure water quality
- Conductivity: 2-10μs/cm25 ℃ (raw water TDS < 200ppm), in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard
- Ultrapure water quality
- Electrical resistivity 18.25MΩ .cm@25 ℃; particles (> 0.2um) < 1/ml
- Pure water storage bucket
- 80L
- Inlet source
- Municipal tap water, raw water conductivity < 1000μs/cm@25 ℃, total hardness < 200ppm, PH: 6.5-8, free chlorine < 1ppm
- inlet pressure
- 2-5Kg, water temperature 5-35 ℃
- Operating Environment
- Temperature 5~ 40 ℃, avoid direct sunlight
- Power
- 220V/50HZ, Power: 350W
- Host size
- 1080*560*500mm
- Application
- Glass dish cleaning, flooring device, autoclaving device, heating pot, hydrogen generator, hydroponics method, wind erosion Tester, chemical oxygen demand, dissolution test, pH value measurement, surface tension test, aquarium
- Application standard
- ISO9001:2008 Mass management system, NSF and Water Quality Association standards
- Produced water quality
- tertiary water
Features
ØTap water enters, and water is produced automatically and continuously, which greatly meets the water needs of the laboratory;
Ø Quickly reach 18.25MΩ stable water quality after startup, saving water, electricity and time;
ØThe microcomputer chip fully automatically controls the operation of the equipment and meets GLP safety requirements;
ØPower-on self-check, water shortage protection alarm, automatic reset after power outage, automatic shutdown when pure Water Tank is full, ultra-low Voltage protection, UV lamp failure alarm and other functions;
ØUsing imported RO membrane, ion exchange resin, polished nuclear grade resin, silent high-pressure pump, solenoid valve, etc., product performance is maximized;
ØRO automatically flushes and sterilizes regularly to maximize the service life of accessories;
ØWater quality online monitoring system can instantly measure the quality of produced water.
plan
Scope of use
Glass dish cleaning, potter, autoclave, heating pot, hydrogen generator, hydroponics, wind erosion resistance Tester, chemical oxygen demand, dissolution test, pH value measurement, surface tension experiment, aquarium.
Features
ØThe important parts are imported with original packaging, and the materials comply with the standards of NSF and Water Quality Association of the United States;
ØStrictly implement the ISO9001:2008 quality management system to ensure uniform and stable product quality;
ØStandardized module design and production makes product maintenance more secure;
ØThe "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.
configuration list
| Serial number | name | Model specifications | quantity | unit | Remark |
| 1 | PP fiber filter | Supporting | 1 | set | Aquapro |
| 2 | activated carbon filter | Supporting | 1 | set | Aquapro |
| 3 | booster pump | Supporting | 1 | set | Aquapro |
| 4 | RO membrane module | Water production: 40 L/h | 4 | set | Aquapro |
| 5 | pure Water Tank | 80L,PE | 1 | set | Aquapro |
| 6 | Pump | Supporting | 1 | set | Aquapro |
| 7 | purification column | Supporting | 1 | set | Aquapro |
| 8 | Terminal ultrafiltration membrane | Supporting | 1 | set | Aquapro |
| 9 | Product water quality resistance meter | RCT-3200 | 1 | set | ROC |
| 10 | Control System | Supporting | 1 | set | Aquapro |
