AIC ADW-1002-M Laboratory Ultrapure Water System, Secondary Reverse osmosis (RO)

American AIC ADW-1002-M laboratory ultra-pure water machine, ultra-pure water machine suitable for physical and chemical experiments, secondary reverse osmosis (RO), with 10L/H pure water production, ultra-pure exchange capacity 3001L.
Model:

AIC ADW-1002-M Laboratory ultrapure water machineSPEC

AIC ADW-1002-M Laboratory ultrapure water machineDetails

AIC ADW-1002-M Laboratory ultrapure water machinePacking list

SKU
NB005209
Flow Rate
10L/h
Flow velocity
1.0~1.5 L/min
Pure water quality
Conductivity: 2-10μs/cm25 ℃ (raw water TDS < 200ppm), in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard
Ultrapure water quality
Electrical resistivity: 18.25MΩ .cm@25 ℃; TOC * < 5ppb; microorganisms < 1cfu/ml; particles (> 0.2um) < 1/ml
Pure water storage bucket
40L
Inlet source
Municipal tap water, raw water conductivity < 1000μs/cm@25 ℃, total hardness < 200ppm, PH: 6.5-8, free chlorine < 1ppm
inlet pressure
2-5Kg, water temperature 5-35 ℃
Operating Environment
Temperature 5~ 40 ℃, avoid direct sunlight
Power
220V/50HZ, Power: 350W
Host size
1080*560*500mm
Application
Gas chromatograph, chromatograph Mass spectrometry, atomic absorption spectroscopy (AAS), atomic emission spectroscopy (AES), spectrophotometric luminance, ultra-high Voltage liquid chromatograph, effective liquid chromatograph, protein Electrophoresis, NP analyzer, VOC analysis, TOC analysis
Application standard
ISO9001:2008 Mass management system, NSF and Water Quality Association standards
Produced water quality
tertiary water
ADW-1002-M
Laboratory ultrapure water machine

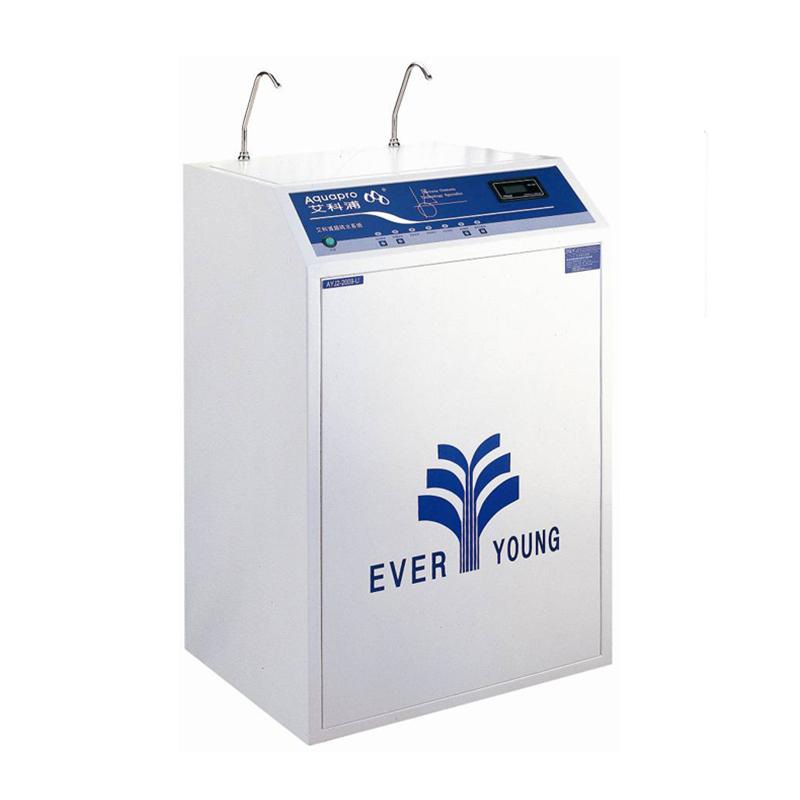

AIC ADW-1002-M Laboratory Ultrapure Water System, Secondary Reverse osmosis (RO) Picture

Features

ØTap water enters, and water is produced automatically and continuously, which greatly meets the water needs of the laboratory;

Ø Quickly reach 18.25MΩ stable water quality after startup, saving water, electricity and time;

ØThe microcomputer chip fully automatically controls the operation of the equipment and meets GLP safety requirements;

ØPower-on self-check, water shortage protection alarm, automatic reset after power outage, automatic shutdown when pure Water Tank is full, ultra-low Voltage protection, UV lamp failure alarm and other functions;

ØUsing imported RO membrane, ion exchange resin, polished nuclear grade resin, silent high-pressure pump, solenoid valve, etc., product performance is maximized;

ØRO automatically flushes and sterilizes regularly to maximize the service life of accessories;

ØWater quality online monitoring system can instantly measure the quality of produced water.

plan

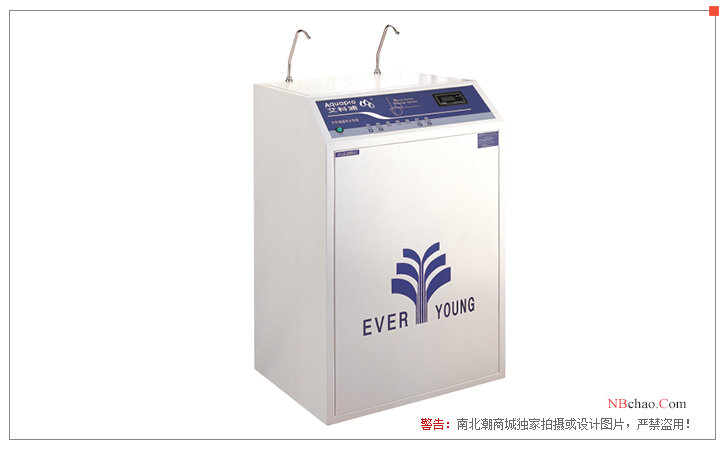

Appearance view of Ecopu ADW-1002-M laboratory Ultrapure Water System

Scope of use

Gas chromatography analysis, chromatography mass spectrometry, atomic absorption spectroscopy, atomic emission spectroscopy, spectrophotometry, ultra-high pressure liquid chromatography, effective liquid chromatography, protein electrophoresis, NP analyzer, VOC analysis, TOC analysis.

Features

ØThe important parts are imported with original packaging, and the materials comply with the standards of NSF and Water Quality Association of the United States;

ØStrictly implement the ISO9001:2008 quality management system to ensure uniform and stable product quality;

ØStandardized module design and production makes product maintenance more secure;

ØThe "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.

configuration list

Serial numbernameModel specificationsquantityunitRemark
1PP fiber filterSupporting1setAquapro
2activated carbon filterSupporting1setAquapro
3booster pumpSupporting1setAquapro
4RO membrane moduleWater production: 10 L/h3setAquapro
5pure Water Tank40L, PE1setAquapro
6PumpSupporting1setAquapro
7purification columnSupporting1setAquapro
8Terminal ultrafiltration membraneSupporting1setAquapro
9Product water quality resistance meterRCT-32001setROC
10Control SystemSupporting1setAquapro
11UV oxidation sterilization device185+254nm1setAquapro
