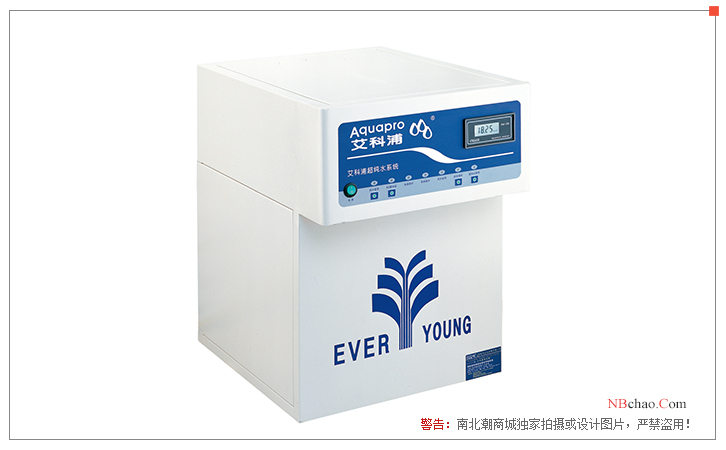

AIC ADW-0502-H Laboratory Ultrapure Water System
ADW-0502-H
AIC ADW-0502-H Laboratory ultrapure water machineSPEC
AIC ADW-0502-H Laboratory ultrapure water machineDetails
AIC ADW-0502-H Laboratory ultrapure water machinePacking list
- SKU
- NB005217
- Flow Rate
- 5L/h
- Flow velocity
- 1.0~1.5 L/min
- Pure water quality
- Conductivity: 2-10μs/cm25 ℃ (raw water TDS < 200ppm), in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard
- Ultrapure water quality
- Electrical resistivity: 18.25MΩ .cm@25 ℃; TOC * < 5ppb; microorganisms < 1cfu/ml; particles (> 0.2um) < 1/ml; bacterial endotoxin < 0.001EU/ml
- Pure water storage bucket
- 40L
- Inlet source
- Municipal tap water, raw water conductivity < 1000μs/cm@25 ℃, total hardness < 200ppm, PH: 6.5-8, free chlorine < 1ppm
- inlet pressure
- 2-5Kg, water temperature 5-35 ℃
- Operating Environment
- Temperature 5~ 40 ℃, avoid direct sunlight
- Power
- 220V/50HZ, Power: 350W
- Host size
- 540*380*480mm
- Application
- Immunohistochemistry, Nucleic Acid Electrophoresis, Toxicology, Nuclease Application, Coalescence Chain Reaction, Cell Fostering, Electrophysiology
- Application standard
- ISO9001:2008 Mass management system, NSF and Water Quality Association standards
- Produced water quality
- tertiary water
Features
ØTap water enters, and water is produced automatically and continuously, which greatly meets the water needs of the laboratory;
Ø Quickly reach 18.25MΩ stable water quality after startup, saving water, electricity and time;
ØThe microcomputer chip fully automatically controls the operation of the equipment and meets GLP safety requirements;
ØPower-on self-check, water shortage protection alarm, automatic reset after power outage, automatic shutdown when pure Water Tank is full, ultra-low Voltage protection, UV lamp failure alarm and other functions;
ØUsing imported RO membrane, ion exchange resin, polished nuclear grade resin, silent high-pressure pump, solenoid valve, etc., product performance is maximized;
ØRO automatically flushes and sterilizes regularly to maximize the service life of accessories;
ØWater quality online monitoring system can instantly measure the quality of produced water.
Scope of use
Immunohistochemistry, nucleic acid electrophoresis, toxicological studies, nuclease-free applications, polymerase chain reaction, cell culture, electrophysiology.
Features
ØThe important parts are imported with original packaging, and the materials comply with the standards of NSF and Water Quality Association of the United States;
ØStrictly implement the ISO9001:2008 quality management system to ensure uniform and stable product quality;
ØStandardized module design and production makes product maintenance more secure;
ØThe "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.
plan
configuration list
| Serial number | name | Model specifications | quantity | unit | Remark |
| 1 | PP fiber filter | Supporting | 1 | set | Aquapro |
| 2 | activated carbon filter | Supporting | 1 | set | Aquapro |
| 3 | booster pump | Supporting | 1 | set | Aquapro |
| 4 | RO membrane module | Water production: 5 L/h | 2 | set | Aquapro |
| 5 | pure Water Tank | 40L, PE | 1 | set | Aquapro |
| 6 | Pump | Supporting | 1 | set | Aquapro |
| 7 | purification column | Supporting | 1 | set | Aquapro |
| 8 | Pyrogen removal ultrafiltration membrane | 6KD | 1 | set | Aquapro |
| 9 | Product water quality resistance meter | RCT-3200 | 1 | set | ROC |
| 10 | Control System | Supporting | 1 | set | Aquapro |
| 11 | UV oxidation sterilization device | 185+254nm | 1 | set | Aquapro |
