TQC VF2213 Immersion Viscosity Cup of stainless steel 2mm
SE
VF2213
TQC sheen VF2213 Viscosity cupSPEC
TQC sheen VF2213 Viscosity cupDetails
TQC sheen VF2213 Viscosity cupPacking list
- SKU
- NB000522
- flow hole diameter
- 2mm
- Cup height
- 74mm
- Maximum width
- 63mm
- Total height
- 250mm
- Cup body material
- stainless steel
- Filter material
- stainless steel
- Handle material
- stainless steel
- Applicable standards
- DIN 53211
- Certificate
- without
- Weight
- 447~450g
Introduction to TQC Viscosity Cup
TQC immersion Viscosity Cups are made of stainless steel and have four models: VF2213, VF2215, VF2216, and VF2217. The Viscosity Cups are produced according to many international standards. These international standards have been developed for many years and not only specify the precise dimensional tolerances required in the process, but also Specifies their use and the recording of data obtained. The Viscosity Cup was originally designed for rapid viscosity and consistency evaluation of products that comply with Newtonian mechanics or are close to Newtonian mechanical properties (such as paints, paints, inks, and pigments).
TQC brand Viscosity Cups are produced under strict quality control procedures and are engraved with a unique serial number.
Specifications
| model | filter diameter | flow time | Viscosity range |
| VF2213 | 2 mm | ||
| VF2215 | 4 mm | 25~150 seconds | 96~ 683cst |
| VF2216 | 5 mm | ||
| VF2217 | 6mm _ | ||
Other parameters | |||
| Material | Stainless steel | ||
| standard | din 53211 | ||
| type | immersion | ||
Viscosity measurement principle
DIN cups are used to test the concentration of coatings, paints and other similar products. Through the process of liquid flowing out from the hole under the Viscosity Cup, the viscosity of the liquid is calculated and classified. This method of measuring kinematic viscosity generally uses minutes to calculate the flow time, and then uses a disc viscosity calculator to convert The unit of dynamic viscosity, so the Viscosity Cup is also called the outFlow Cup.
Instructions
It is recommended to purchase at least 1 standard Viscosity Cup with a calibration certificate to ensure accurate measurement results. When measuring, compare the results of measuring the product standard product sample with the measuring Viscosity Cup and the standard Viscosity Cup, and draw a correction chart, so that the outflow time can be corrected through the chart to obtain the correct test results.

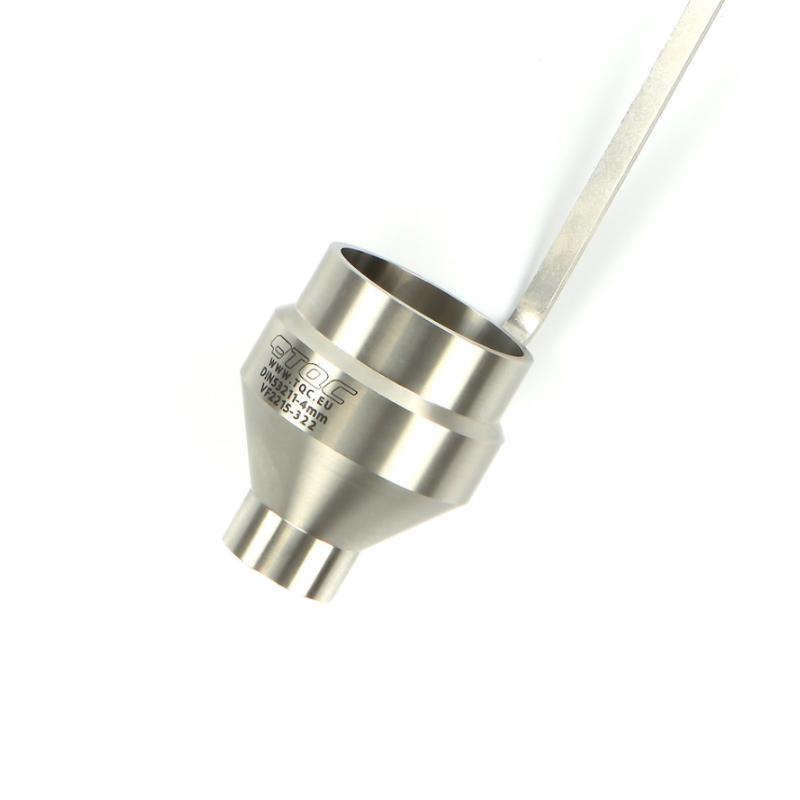

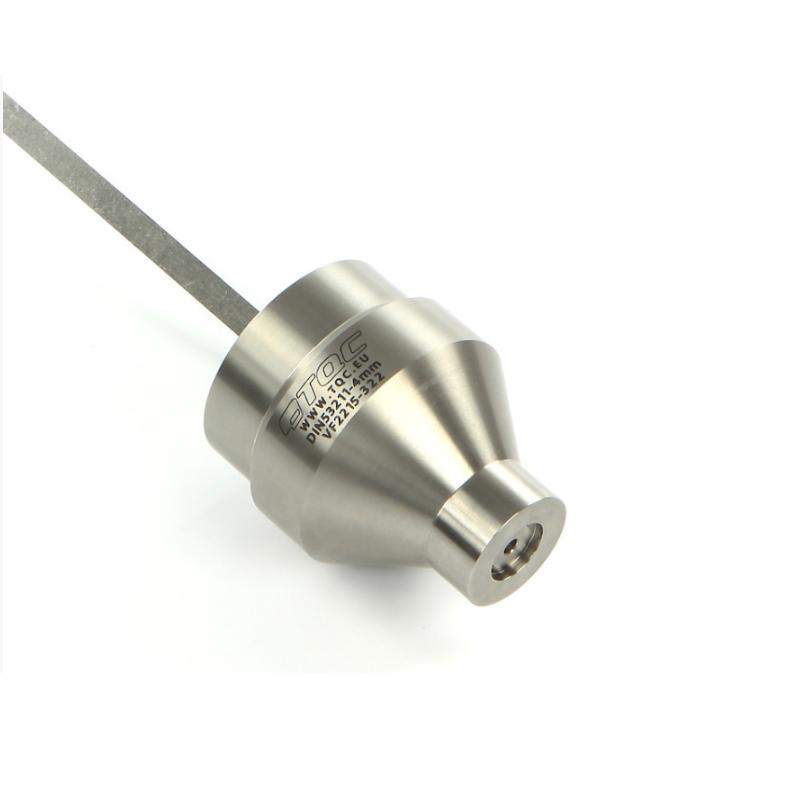

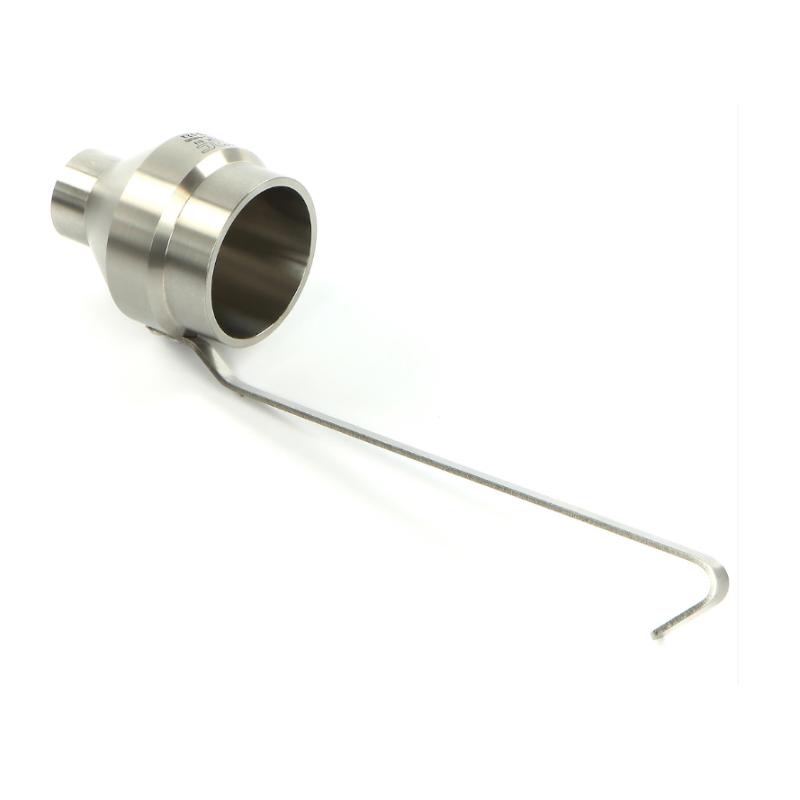

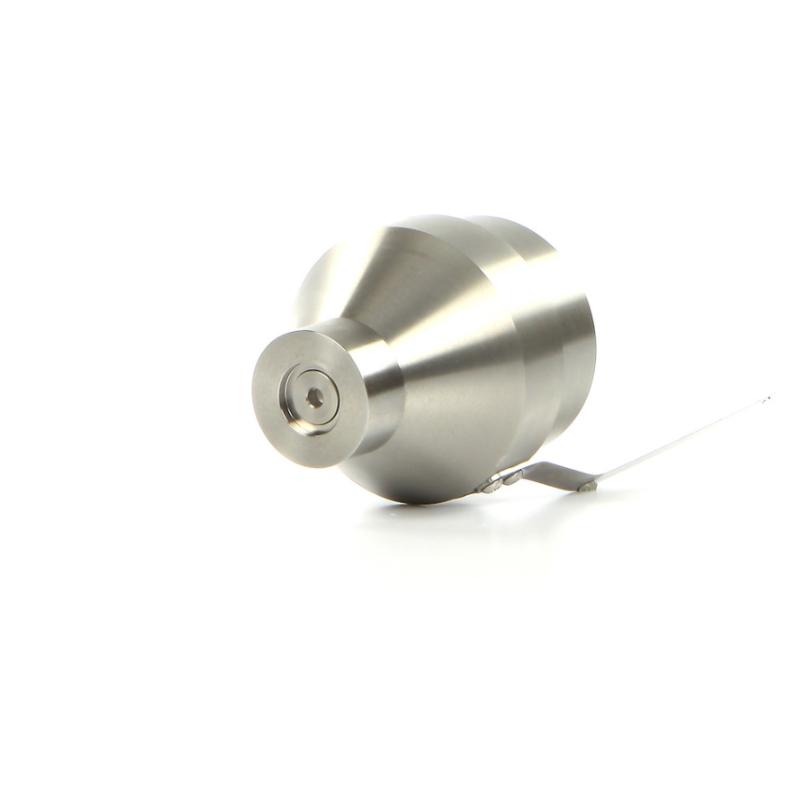

Product actual pictures
TQC model selection table
