AIC AD2L-05-BE laboratory ultra-pure water machine, pure water bacterial endotoxin < 0.001EU/ml

AIC AD2L-05-BE laboratory ultra-pure water machine is an ultra-pure water machine suitable for biological experiments. One machine can produce three-stage water and ultra-pure water at the same time. The water making speed is 5L/H, and the total organic carbon TOC of pure water is less than 5ppb.
Model：
Certificate
Contact
Details SPEC CAT

AIC AD2L-05-BE Laboratory ultrapure water machineSPEC

AIC AD2L-05-BE Laboratory ultrapure water machineDetails

AIC AD2L-05-BE Laboratory ultrapure water machinePacking list

SKU
NB005228
Flow Rate
5L/h
Flow velocity
1.0~1.5 L/min
Pure water quality
Conductivity ≤ 5μs/cm@25 ℃, in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard
Ultrapure water quality
Electrical resistivity: 18.2MΩ .cm@25 ℃; TOC * < 5ppb; Microorganisms < 1cfu/ml; Granules (> 0.2um) < 1/ml; Bacterial endotoxin < 0.001EU/ml
Pure water storage bucket
10L
Inlet source
Municipal tap water, raw water conductivity: < 1000μs/cm@25 ℃, total hardness < 200ppm, PH: 6.5-8, free chlorine < 1ppm; inlet pressure: 1-5Kg, water temperature 5-35 ℃
Operating Environment
Temperature 5~ 40 ℃, avoid direct sunlight
Power
100-240VAC/50-60Hz, Power: 221W (max)
Host size
580*395*535mm
Packing Weight
36Kg
Application
Cell foster, non-nuclease applications, coalescence enzyme chain reaction, DNA sequencing, electrophysiology, endocrine blocking analysis, immunohistochemistry, histology, microbial foster groups, nucleic acid Electrophoresis, pyrogen-free water, toxicological research and other biological experimental water
Application standard
ISO9001:2008 Mass management system, NSF and Water Quality Association standards
Produced water quality
tertiary water
AD2L-05-BE
Laboratory ultrapure water machine
AIC AD2L-05-BE laboratory ultra-pure water machine, pure water bacterial endotoxin < 0.001EU/ml Picture

Features

◆The innovative and patented fully intelligent control system adopts a fully automatic embedded microcomputer integrated control system (ARM9 high-end processor), a true-color TFT LCD touch screen, and a graphical human-machine interface. The operation is simple, convenient and fast, bringing the user closer. Just like using a smartphone;

◆Online display of real-time operation data of water production and water intake in the whole system (raw water quality, temperature, pressure, third-level water quality, third-level water intake volume/raw water flow rate, ultrapure water quality, ultrapure water intake volume/water intake rate, Water Tank Dynamic display of water volume and level). System data self-analysis and comparison, trend prediction, and preventive reminders to avoid experiments being interrupted without warning;

◆Tertiary water/ultrapure water can be taken out quantitatively respectively. The range of quantitative water taking is any integer volume, with an error of ±2ml (<500ml) or 1% (≥500ml);

◆Two-stage reverse osmosis, patented special depth desalination treatment technology, ensures stable output of pure water quality ≤5 us/cm@25℃;

◆All monitoring data of the whole system are collected and recorded in real time, without the need for external computer storage, and the data within one year can be directly queried on the water machine;

◆Cloud service system. Data is collected and stored in real time. Users can directly export the data from the device through a USB flash drive, and upload it to the Aikopu cloud service center via the network every month for backup and diagnosis, and then trace it back to Aikopu professional engineers. Analyze the uploaded data and provide diagnostic reports and preventive maintenance recommendations to users based on the analysis results;

◆Patented sterile water storage tank for easy cleaning and disinfection;

◆ABS casing, anti-corrosion, safety insulation performance meets GLP safety requirements.

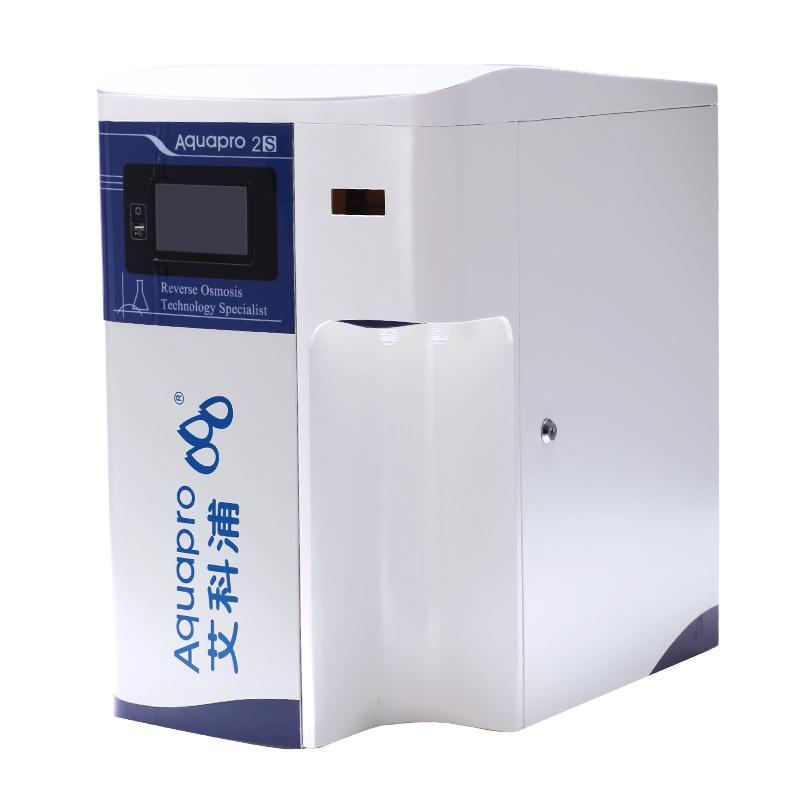

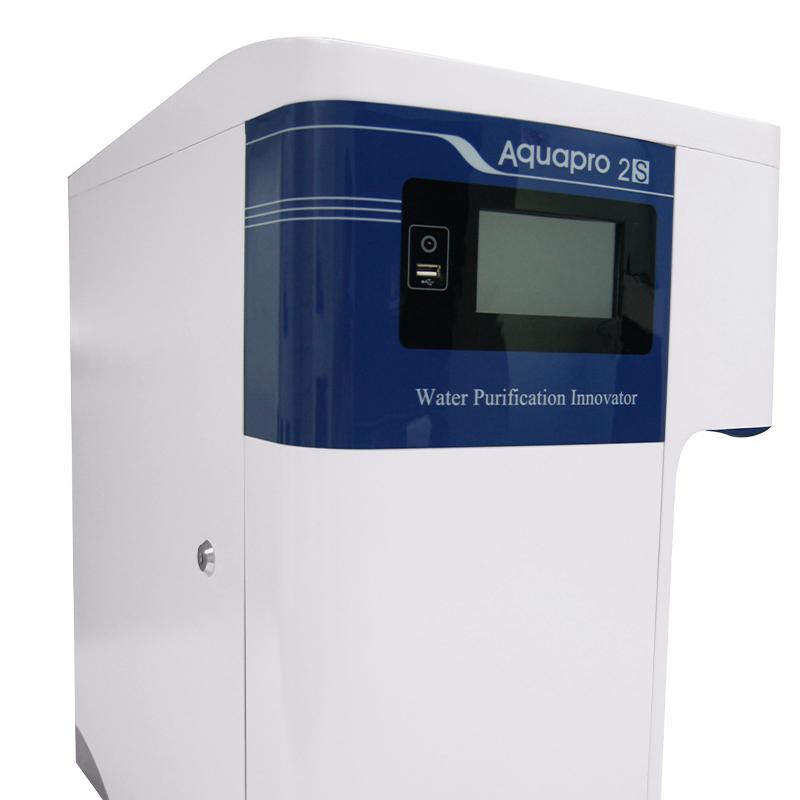

Product display picture

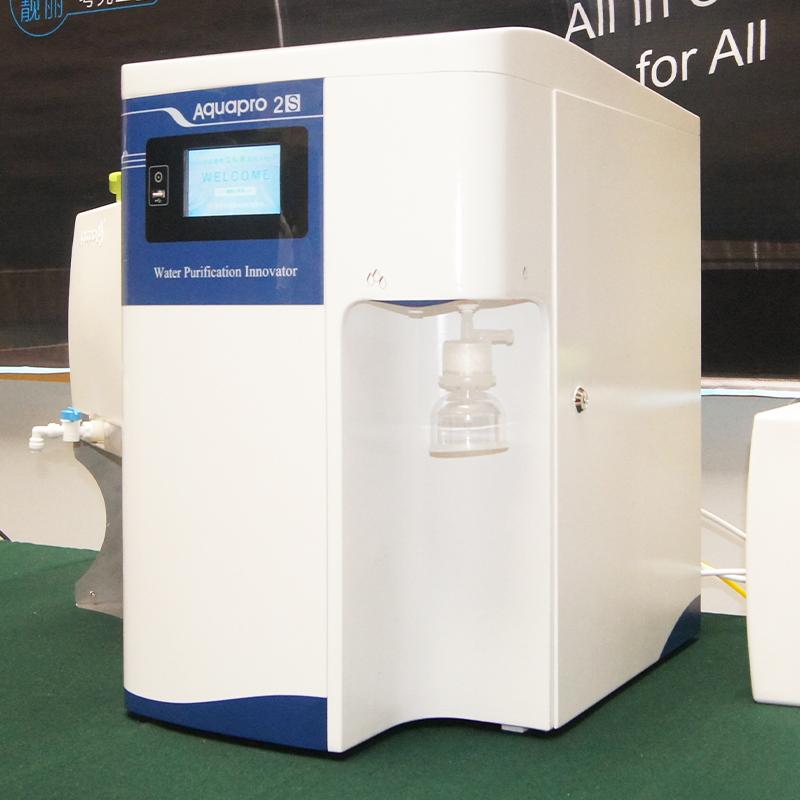

Aikopu AD2L-05-BE laboratory Ultrapure Water System display

Features

1. Important parts are imported with original packaging, and the materials comply with the standards of the American NSF and Water Quality Association;

2. Standardized module design and production makes product maintenance more secure;

3. The "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.

Application

Cell culture, nuclease-free applications, polymerase chain reaction, DNA sequencing, electrophysiology, endocrine blockade analysis, immunohistochemistry, histology, microbial culture media, nucleic acid electrophoresis, pyrogen-free water, toxicology research, etc. Experimental water.

AD2L-05-BE system configuration list

Serial number

name

Model specifications

quantity

unit

Remark

1

PP fiber filter

Supporting

1

set

Aquapro

2

activated carbon filter

Supporting

1

set

Aquapro

3

booster pump

Supporting

1

set

Aquapro

4

RO membrane module

Water production: 5 L/h

1

set

Aquapro

5

Patented sterile pure water

storage device

10L

1

set

AIC

6

Pump

Supporting

1

set

Aquapro

7

purification column

Supporting

1

set

Aquapro

8

UV oxidation sterilization device

185+254nm

1

set

Aquapro

9

Pyrogen removal ultrafiltration membrane

6KD

1

set

Aquapro

10

terminal filter

0.22μm

1

set

Sartorius

11

SMART-ANGEL

Fully intelligent monitoring system

Supporting

1

set

AIC

12

touch system

Supporting

1

set

AIC

AD2L series parameter comparison

modelAD2L-05-ORAD2L-05-CEAD2L-05-BEAD2L-10-ORAD2L-10-CEAD2L-10-BE
applicationBasic physical and chemical experimentsPhysical and chemical experimentsBiological experimentsBasic physical and chemical experimentsPhysical and chemical experimentsBiological experiments
Pure water production5L/H10L/H
Ultrapure water resistivity18.2MΩ.cm
Pure water conductivity1-5us/cm
Total organic carbon TOC-<10ppb<5ppb-<10ppb<5ppb
bacteria-<1CFU/ml-<1CFU/ml
Bacterial endotoxin--<0.001EU/ml--<0.001EU/ml
particulate matter<1 piece/ml
Inorganic ion removal rate≥99.5%
heavy metal ion≤0.1ppb
Silicon removal rate＞99%
Incoming water sourceMunicipal tap water, conductivity <1000 µS/cm@25℃, total hardness <200ppm, pH: 6.5-8.5, residual chlorine <1ppm, pressure: 0.2MPa-0.5MPa, temperature: 5-35℃.
power supply220V/50Hz, 250W
Dimensions395*535*580mm
Application-BECell culture, nuclease-free applications, polymerase chain reaction, DNA sequencing, electrophysiology, endocrine blockade analysis, immunohistochemistry, histology, microbial culture media, nucleic acid electrophoresis, pyrogen-free water, toxicology research, etc. Experimental water.
Application - CEHistology, effective liquid chromatography, ultrahigh pressure liquid chromatography, mass spectrometer, atomic emission spectrometry, protein electrophoresis, capillary electrophoresis, spectrophotometry, gas chromatography analysis, atomic absorption spectrometry, integrated circuits, chromatography mass spectrometry, NP analyzer, TOC Analysis, VOC analysis, Western blot method and other physical and chemical experiments and general biological experiments water.
Application - ORGlass dish cleaning, titrator, autoclave, biochemical oxygen demand, heating pot, hydrogen generator, hydroponics, Kedar analysis, stability test, wind erosion resistance Tester, chemical oxygen demand, dissolution test , gene chip analysis, particle analyzer, pH value measurement, surface tension experiment, animal water, aquarium and other basic physical and chemical experiment water.
