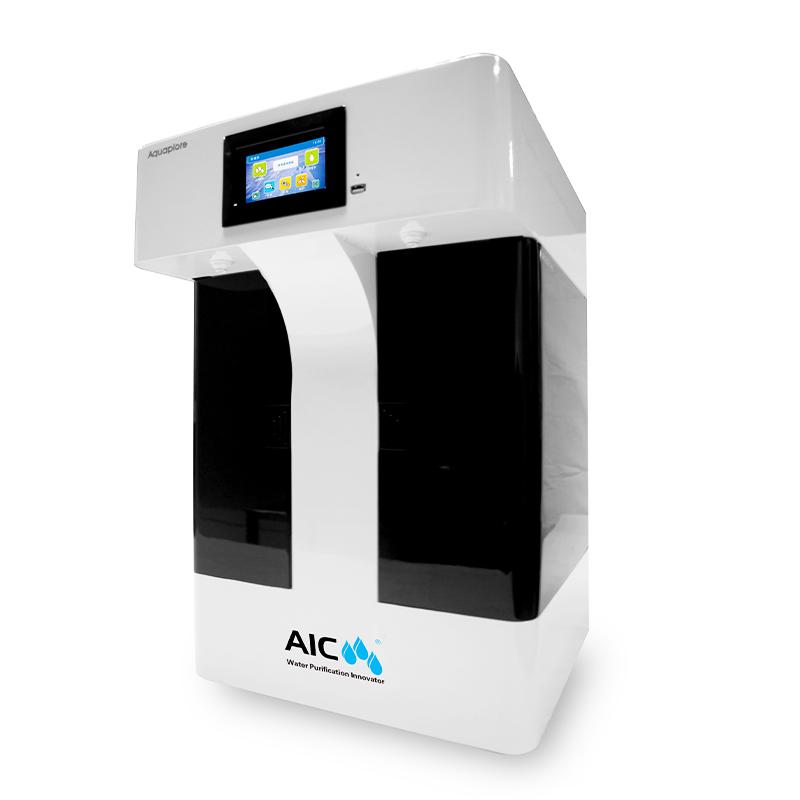

AIC AD3-08-08-OR small ultra-pure water machine, ultra-pure water production capacity 8T
AD3-08-08-OR
AIC AD3-08-08-OR Laboratory ultrapure water machineSPEC
AIC AD3-08-08-OR Laboratory ultrapure water machineDetails
AIC AD3-08-08-OR Laboratory ultrapure water machinePacking list
- SKU
- NB005258
- Flow Rate
- 8L/h
- Flow velocity
- 1.0~2.0 L/min
- Ultrapurification Unit Capacity
- 8000L
- Pure water quality
- Conductivity * ≤ 5μs/cm@25 ℃, in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard
- Ultrapure water quality
- Electrical resistivity: 18.2MΩ .cm@25 ℃; particles (> 0.2um) < 1/ml
- Pure water storage bucket
- 10L
- Inlet source
- Municipal tap water, raw water conductivity: < 2000μs/cm, total hardness < 450ppm, PH: 6.5-8, free chlorine < 1ppm
- inlet pressure
- 1-5Kg, water temperature 5-35 ℃
- Operating Environment
- Temperature 5~ 40 ℃, avoid direct sunlight
- Power
- 100-240VAC/50-60Hz, Power: 221W (max)
- Host size
- 625*410*470mm
- Packing Weight
- 40Kg
- Application
- Histology, Glass dish cleaning, titrator, animal water, water cluster box, autoclaving device, biochemical oxygen demand, COD-chemical oxygen demand, dissolution test, gene chip analysis, heating pot, hydrogen generator, hydroponics, Kedar analysis, ion analyzer, PH value measurement, stability test, surface tension test, wind erosion Tester
- Interface
- USB
- Application standard
- ISO9001:2008 Mass management system, NSF and Water Quality Association standards
- Produced water quality
- tertiary water
Features
âEquipped with a complete purification unit:
a. Tap water pre-purification unit;
b. Two-stage reverse osmosis desalination pre-purification unit for tap water;
c. Sterile pure water storage unit (non-pressure barrel type);
d.Ultra-purification unit;
e. Post-processing unit;
f. Fully intelligent monitoring unit.

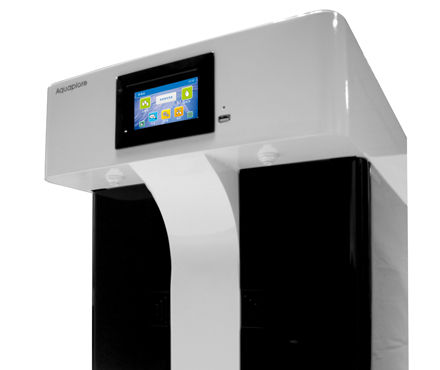

âFully intelligent control system, supports multi-language mode, multi-user use, and independent pricing. True color LCD touch screen, graphical human-machine interface, operation and information online query in one step. (Non-RS232 port external computer operation query);
âMulti-point full-line monitoring: source water quality/pressure/temperature/flow; pre-purification unit water flux accumulation; pre-purified water quality/water consumption; pure water storage capacity; ultrapure water quality/water consumption accumulation; UV life; Ultrafiltration water flux accumulation;
âThe setting of actual consumable operation confirmation data serves as a standard for online diagnosis to facilitate maintenance; reminders are displayed for consumable replacement. (Non-time set consumable reminder);
âOnline self-diagnosis of abnormal operation of the entire system (water quality and quantity of source water, pre-purified water, ultrapure water), warning or automatic system shutdown, important system components (solenoid valves, booster pumps, UV lights, sensors, etc.) Intelligent fault judgment and online replacement instructions;
âTwo-stage reverse osmosis depth desalination, the raw water quality is less than 2000μs, the system desalinization rate is â¥99.5%, and the raw water utilization rate reaches 60-80%.
âTertiary water/ultrapure water can be taken out quantitatively respectively. The range of quantitative water taking is any integer volume, with an error of ±2ml (<500ml) or 1% (â¥500ml);
âThe Zhencai display screen displays water quality, total water intake and flow rate online, allowing users to understand the water intake status at a glance;
âAll monitoring data of the entire system are collected in real time and can be viewed online without the need for external computer storage. The data storage capacity can reach more than one year;
âData is uploaded to the cloud service center via USB every month for backup and diagnosis. Professional engineers will retrospectively analyze the uploaded data and provide diagnostic reports and preventive maintenance recommendations to customers based on the analysis results;

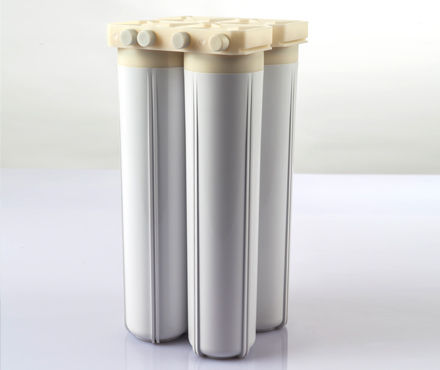

âThe plug-and-play modular design of the system purification unit and components makes it easier to perform calibration, maintenance, cleaning, disinfection, and sampling during system validation;
Features
1. The whole machine is imported with original packaging and complies with the standards of NSF and Water Quality Association of the United States;
2. Strictly implement the ISO9001:2008 quality management system to ensure uniform and stable product quality;
3. Standardized module design and production makes product maintenance more secure;
4. The "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.
plan
Application
Histology, glass dish cleaning, titrator, animal water, water cluster box, autoclave, biochemical oxygen demand, COD-chemical oxygen demand, dissolution test, gene chip analysis, heating pot, hydrogen generator, water Pefa, Kedar analysis, ion analyzer, pH value measurement, stability test, surface tension experiment, wind erosion resistance Tester.
AD3-08-08-OR system configuration list
Serial number | name | Model specifications | quantity | unit | Remark |
1 | TAP-CLEAR module | Raw water treatment capacity: 20,000-30,000 L | 1 | Group | AIC |
2 | DP-RO module | Water production: 8 L/h | 1 | Group | AIC |
3 | ULTRA-CLEAR MODULE | Ultrapure water treatment capacity: 8000 L | 1 | Group | AIC |
4 | Patented sterile pure water storage device | 10L | 1 | set | AIC |
5 | terminal filter | 0.22um | 2 | set | Sartorius |
6 | SMART-ANGEL Fully intelligent monitoring system | Supporting | 1 | set | AIC |
7 | touch system | Supporting | 1 | set | AIC |
AD3 series parameter comparison
| model | AD3-05-03/08-BE | AD3-08-03/08-BE | AD3-16-03/08-BE | AD3-05-03/08-CE | AD3-08-03/08-CE | AD3-16-03/08-CE | AD3-05-03/08-OR | AD3-08-03/08-OR | AD3-16-03/08-OR | |||
| application | Ultrapure water machine suitable for biological experiments | Ultrapure water machine suitable for physical and chemical experiments | Ultrapure water machine suitable for basic physical and chemical experiments | |||||||||
| Incoming water source | Incoming tap water, raw water hardness <450ppm, raw water conductivity <2000 u s/cm@25℃, raw water pressure: 1-5kg; water temperature: 5-35℃ | Incoming tap water, raw water hardness <450ppm, raw water conductivity <2000 u s/cm@25℃, raw water pressure: 1-5kg; water temperature: 5-35℃ | Incoming tap water, raw water hardness <450ppm, raw water conductivity <2000 u s/cm@25℃, raw water pressure: 1-5kg; water temperature: 5-35℃ | |||||||||
| Pure water product* | 5L/h | 8 L/h | 16 L/h | 5L/h | 8 L/h | 16 L/h | 5L/h | 8 L/h | 16 L/h | |||
| Ultrapure water product* | 3/8T | 3/8T | 3/8T | 3/8T | 3/8T | 3/8T | 3/8T | 3/8T | 3/8T | |||
| Water flow rate* | 1-1.5 L/min | 1-1.5 L/min | 1-1.5 L/min | |||||||||
| Water production index | Pure water: resistivity â¥0.2 MΩ.cm@25℃, Yougan CHINA laboratory water specification GB6682-2008 third-level water standard; | Pure water: resistivity â¥0.2 MΩ.cm@25℃, Yougan CHINA laboratory water specification GB6682-2008 third-level water standard;; | Pure water: resistivity â¥0.2 MΩ.cm@25℃, Yougan CHINA laboratory water specification GB6682-2008 third-level water standard;; | |||||||||
| Ultrapure water: resistivity 18.25 MΩ.cm@25℃, TOC (processed by DP-RO) <5ppb, microorganisms <1cfu/ml, particles (>0.2μm) <1/ml, bacterial endotoxin <0.001EU/ ml. | Ultrapure water: Resistivity 18.25 MΩ.cm@25℃, TOC (processed by DP-RO) <10ppb, microorganisms <1cfu/ml, particles (>0.2μm) <1/ml. | Ultrapure water: Resistivity 18.25 MΩ.cm@25℃, particles (>0.2μm) <1/ml. | ||||||||||
| Application | Atomic absorption spectrometry, cell culture, nuclease-free applications, polymerase chain reaction, DNA sequencing, electrophysiology, endocrine blockade analysis, immunohistochemistry, microbial culture media, northern and southern blot methods, nucleic acid electrophoresis, none Pyrogenic water. | Atomic absorption spectrometry, histology, effective liquid chromatography, mass spectrometer, atomic emission spectrometry, protein electrophoresis, ultrahigh pressure liquid chromatography, atomic absorption, capillary electrophoresis, clinical and biomedical laboratories, spectrophotometry, meteorological chromatography analysis , Atomic absorption spectroscopy, integrated circuits, chromatography mass spectrometry, TOC analysis, VOC analysis, Western blot method | Histology, glass dish cleaning, titrator, animal water, water cluster box, autoclave, biochemical oxygen demand, COD-chemical oxygen demand, dissolution test, gene chip analysis, heating pot, hydrogen generator, water Pefa, Kedar analysis, ion analyzer, pH value measurement, stability test, surface tension experiment, wind erosion resistance Tester | |||||||||
| power supply | 100-240VA, 50-60Hz | 100-240VA, 50-60Hz | 100-240VA, 50-60Hz | |||||||||
| Dimensions | HxWxD:625x410x471 mm | HxWxD:625x410x471 mm | HxWxD:625x410x471 mm | |||||||||
