Netherlands TQC VF2377 Pencil Hardness Tester is suitable for single or multi-layer baking paint

SE
Load 750/1000g, material stainless steel, standard pencil 8B, 7B, 6B, 5B, 4B, 3B, 2B, B, HB, F, H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H, 10H.
$1694.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

TQC sheen VF2377 Pencil Hardness TesterSPEC

TQC sheen VF2377 Pencil Hardness TesterDetails

TQC sheen VF2377 Pencil Hardness TesterPacking list

SKU
NB000529
load
750/1000g
applicable standard
ISO 15184, ASTM D3363, JIS K-5400, JIS K-5600, ECCA-T4-1, BS 3900-E19, SNV 37113, SIS 184187, NEN 5350, MIL C 27 227
material
stainless steel
Standard pencil
8B, 7B, 6B, 5B, 4B, 3B, 2B, B, HB, F, H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H, 10H
VF2377
Pencil Hardness Tester
Load 750/1000g, material stainless steel, standard pencil 8B, 7B, 6B, 5B, 4B, 3B, 2B, B, HB, F, H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H, 10H.
Netherlands TQC VF2377 Pencil Hardness Tester is suitable for single or multi-layer baking paint Picture

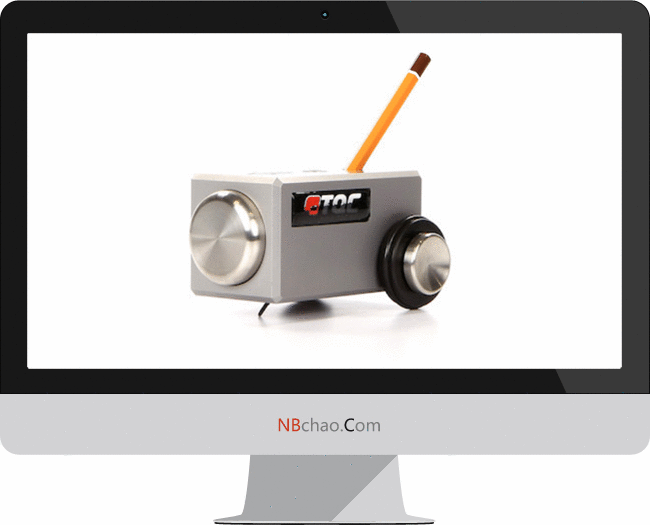

TQC Pencil Hardness Tester 360 Degree Chart

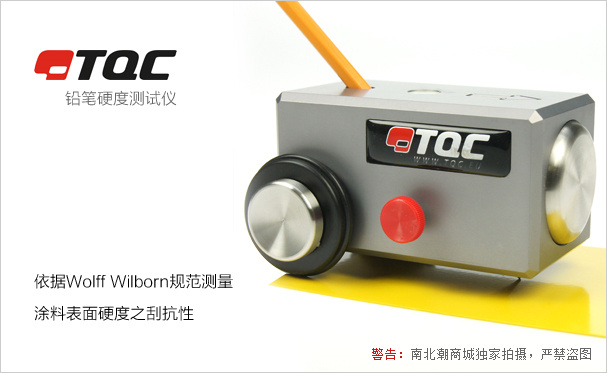

Introduction to TQC hand push pencil Hardness Tester

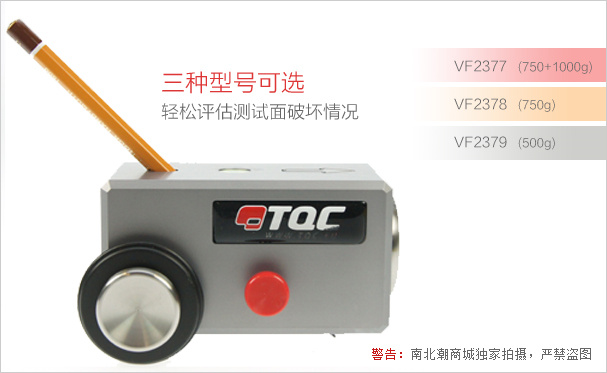

TQC hand push pencil Hardness Tester three models

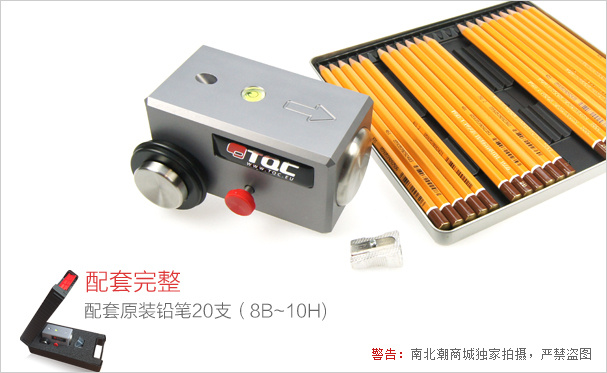

TQC hand push pencil Hardness Tester matching pencil

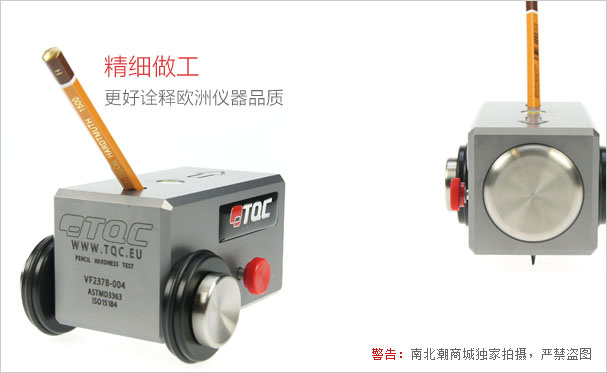

TQC hand push pencil Hardness Tester with fine workmanship

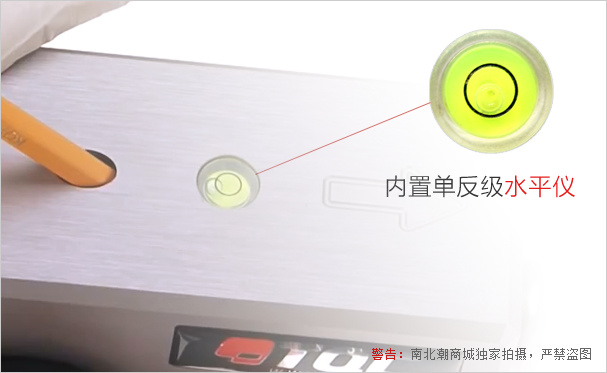

TQC hand push pencil Hardness Tester with built-in level

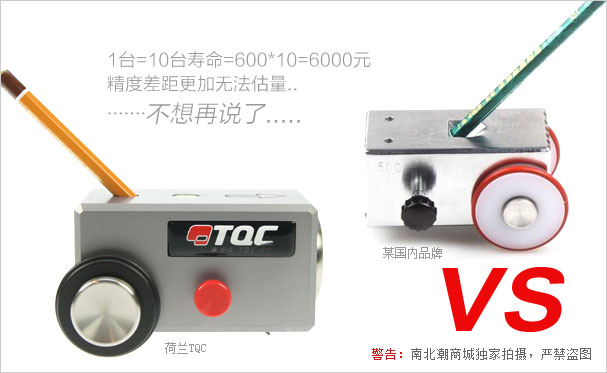

Comparison between TQC hand push pencil Hardness Tester and domestic (CN) oneIt's not expensive!

Introduction to hand push pencil Hardness Tester

The Dutch TQC hand push pencil Hardness Tester has three models: VF2377, VF 2378, and VF 2379, with different weights and in compliance with different international standards. TQC VF2377/2378/2379 hand push pencil Hardness Tester is a standard pencil Hardness Tester designed based on the principle of pencil hardness testing. The appearance design is made of stainless steel, which has good wear resistance and corrosion resistance, and the packaging shell is made of wood. , can protect the pencil Hardness Tester well from moisture and impact.

Specifications

modelStandards compliantweightMaterial
VF2377ISO 15184, ASTM D3363, JIS K-5400, JIS K-5600, ECCA-T4-1, BS 3900-E19, SNV 37113, SIS 184187, NEN 5350, MIL C 27 227750g+1000gStainless steel
VF2378ISO 15184, ASTM D3363, JIS K-5600, ECCA-T4-1, BS 3900-E19, SNV 37113, SIS 184187, NEN 5350, MIL C 27 227 including calibration certificate750g
VF2379There is no international standard requirement yet, but the film industry and LCD industry companies have extended the hardness test method with a test load of 500g from JIS-K5600 (ISO 15184)500g

Introduction to the principle of pencil hardness testing

Use a pencil to test the hardness of coating scratches. In the pencil hardness test, use a set of pens with different hardness levels at an angle of 45 degrees to the surface of the object, and use a constant force of 7.5N to scratch the surface of the object. It is then optically assessed for damage.

How to replace weights

The weight is placed at the bottom of the hand push pencil Hardness Tester. There is a knob at the bottom of the TQC VF2377 hand push pencil Hardness Tester. After loosening the knob, the original weight can be taken out, replaced with a new weight and then tightened. A knob will do the trick.

Features and advantages

The Dutch TQC pencil Hardness Tester measures the surface hardness and scratch resistance of coatings in accordance with Wolff Wilborn specifications. Used for experimental analysis or product quality control. It is suitable for coatings, furniture, automobiles, PC boards, single-layer or multi-layer baking paints. , testing is quick and easy.

Standard configuration

Pencil Hardness Tester, pencil sharpener, 20 pencils, range 8B-10H.

Product actual pictures

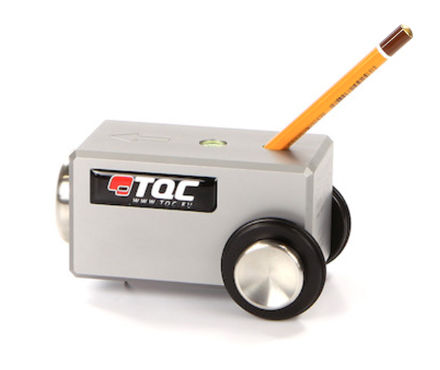

Actual photo of TQC hand push pencil Hardness Tester product 1

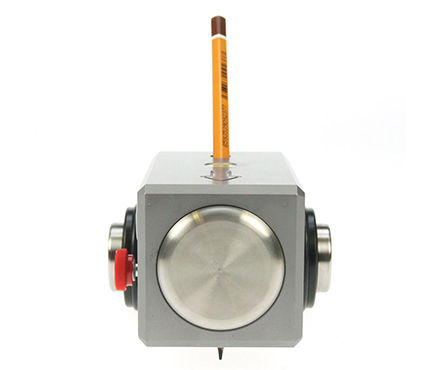

TQC hand push pencil Hardness Tester product actual photo 2

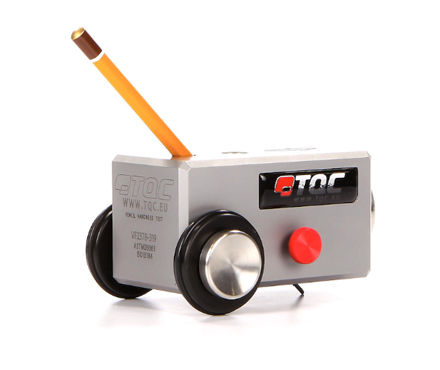

Actual photo of TQC hand push pencil Hardness Tester product 3

Matching pencil

Pencil hardness from 8B to 10H (8B, 7B, 6B, 5B, 4B, 3B, 2B, B, HB, F, H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H, 10H)

pencil

Take you into the Dutch TQC

The historical development of TQC company

TQC automated production and strict quality control

TQC R&D team

FAQ
QCan this Pencil Hardness Meter Measure Coating Hardness on Plastic?
A OK
QThe load of the Pencil hardness tester I got is wrong, one is 288g and the other is 488g. The one I bought is 750g and 1000g.
A Pencil hardness tester weight, not the weight itself gravity, but weight + car weight, pressure on the pencil force, such as load 750g, is actually car weight + weight gravity, a total of 750g
QPencil hardness tester without load 500, 750 and 1000 can be covered?
A Only 750 + 1000g
QPencil hardness tester can be applied to HG/T3829?
A OK
QDoes the VF2377 contain two replaceable weights? How is it replaced?
A Hello! VF2377 contains two weights of 750g + 1000g, and the replacement can be controlled through the knob at the bottom of the Pencil hardness tester.
QDoes VF2377 meet the requirements of ASTM D3363?
A Hello! The Dutch TQC hand push Pencil hardness tester has three models: VF2377, VF2378 and VF2379, with different weights and in line with different international standards. Among them, VF2377 meets the following standards: ISO 15184, ASTM D3363, JIS K-5400, JIS K-5600, ECCA-T4-1, BS 3900-E19, SNV 37113, SIS 184187, NEN 5350, MIL C 27 227.
QIs this Pencil hardness tester suitable for testing car primers?
A GB/T 13493-92 automotive primer standard has reference to GB 6739 film hardness pencil determination method, so it is applicable.
QPencil hardness tester need to calibrate?
A In theory, all instruments need to be calibrated. But based on the design principle of Pencil hardness tester, calibrate only exists to calibrate its approved weight. And Pencil hardness tester is made of high-grade metal, which is unlikely to cause weight change. Therefore, it is recommended that calibrate is not required.
Q Pencil hardness tester in which position to change the weight?
A Hello, the replacement weight of this Pencil hardness tester is at the bottom of the instrument. There is a knob on the bottom. After the knob is loosened, take out the original weight, replace it with a new weight and then tighten the knob. Thank you for your consultation!
