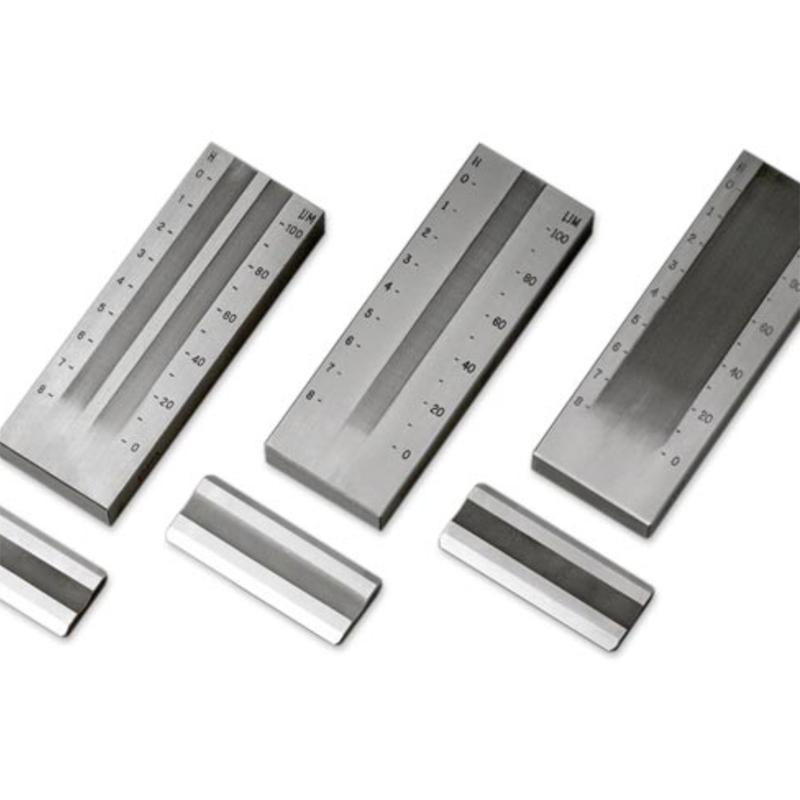

British Sheen Ref. 501/100 double-channel Fineness Meter hardened stainless steel Sheen Fineness Meter

Ref.501/100

Fineness Meter

Warehouse bottom goods, clearance sales

Introduction

SHEEN double groove Grindometer is made of stainless steel. There are one or two grooves on the fineness plate, which is divided into single/double channel Fineness gauges. The depth of the groove changes from the maximum value at one end to zero at the other end. value. Sheen Ref.501/100 is a double-channel Fineness gauge with a groove depth of 0-100 microns; the readings on both sides of the fineness plate can read the size of the measured particles. There are two scales, one is microns and the other is Nuclear Hegemann fineness; the size of the fineness plate is 175x63x12mm; other scales or groove depths are also available.

Fineness Plate This imported fineness plate is available with single or double grooves and is engraved with 2 sets of scales: 0-25, 0-50 or 0-100 microns and 8-6, 8-4 or 8-0 nm respectively. Hegman units. During the test, pour a small amount of product into the deep end, and use a scraper to scrape toward the shallower end. Particles that are too large and their paths displayed on the scale can be divided and the size of the measured particles can be read out.

Features

High-precision machining, 175 x 63 x 12 mm Standard equipment: scraper, leather carrying case.

Many types of solid materials need to be ground into finer particles for dispersion in fluid equipment. The physical property of the final dispersion is often called "fineness", which depends not only on the actual size of the individual particles, but also on the size of the particles they are dispersed in. degree of dispersion.

How to operate

Pour a little more sample into the deep end of the groove of Sheen Ref.501/100 fineness plate, use the straight edge of the provided scraper to scrape the sample toward the shallower end of the groove of the fineness plate, and draw it on the surface of the fineness plate. The location where you see many rough particles is the corresponding test point.

Standards compliant

S 3900 C6; EN21524; ISO 1524; ASTM D1210

Application

The quality of the grinding of solid ingredients in coatings, paints, inks, or food formulations is important for good dispersion. Xinying's high-precision fine-gauge plates are made of hardened stainless steel for long-term durability and reliability.

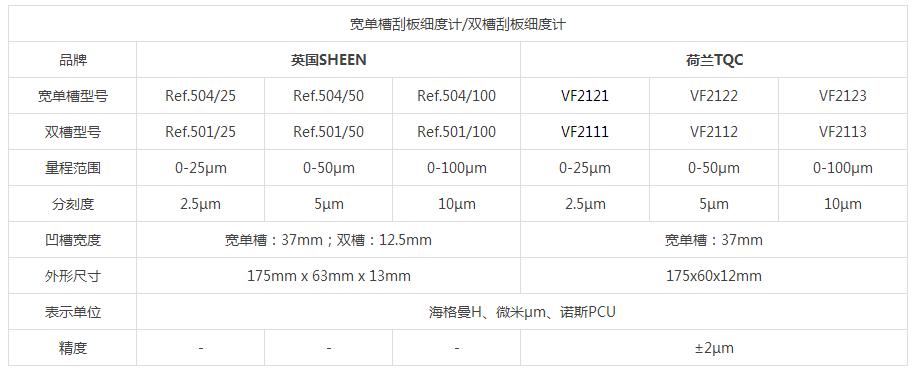

Comparison of TQC and SHEEN fineness board parameters

The scraper Fineness Meter of Dutch TQC can be used interchangeably with the SHEEN fineness plate. Both are imported well-branded products. The specific parameters are compared as follows:

Packing list：Scraper x1, doctor blade x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
