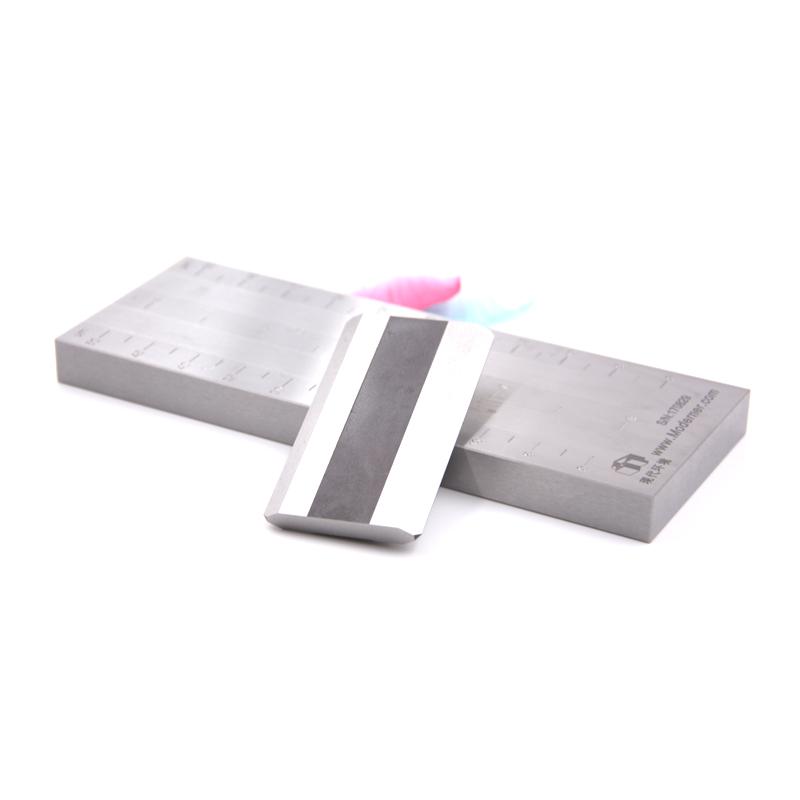

MODERNER QXD-25 small double-channel qxd Fineness gauge 25 micron particle Fineness gauge

SE
Double-channel qxd Fineness meter, applicable to standard JJG (chemical) 018-96, GB/T1724, range 0~25μm, Graduation 2.5μm
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

Moderner QXD-25 (small double-channel) Small double-channel Fineness gaugeSPEC

Moderner QXD-25 (small double-channel) Small double-channel Fineness gaugeDetails

Moderner QXD-25 (small double-channel) Small double-channel Fineness gaugePacking list

SKU
NB000533
Scraper type
double-channel
Number of grooves
2
range
0 ~ 25µm
Scale unit
mm
Scraper material
stainless steel
Scraper size
170*63.5*12.7mm
Scraper size
70mm
Applicable standard
JJG(化)018-96、GB/T1724
Graduation
2.5µm
Groove size
12.7mm
QXD-25 (small double-channel)
Small double-channel Fineness gauge
Double-channel qxd Fineness meter, applicable to standard JJG (chemical) 018-96, GB/T1724, range 0~25μm, Graduation 2.5μm

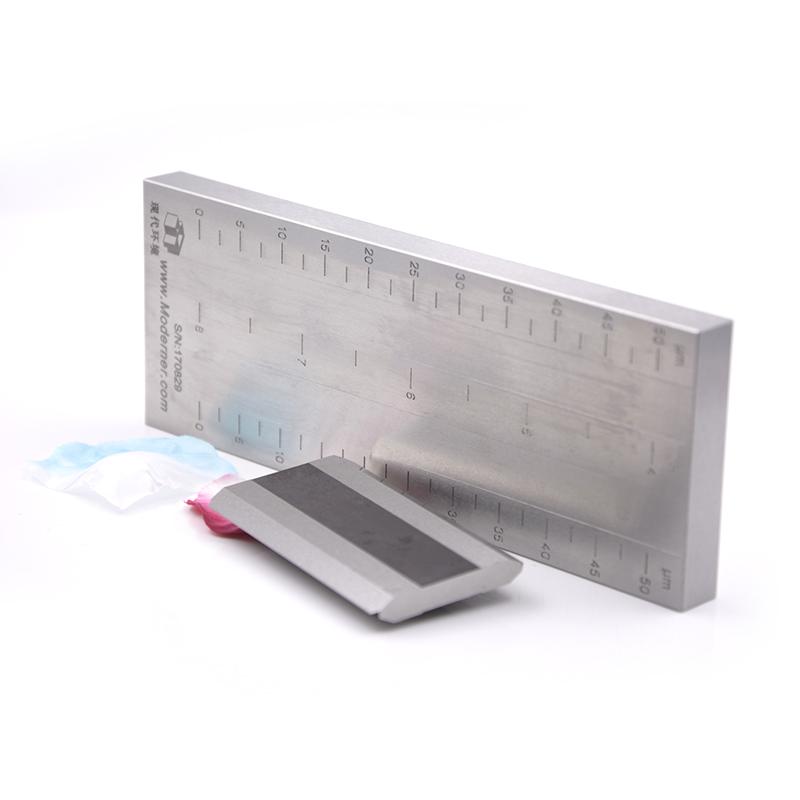

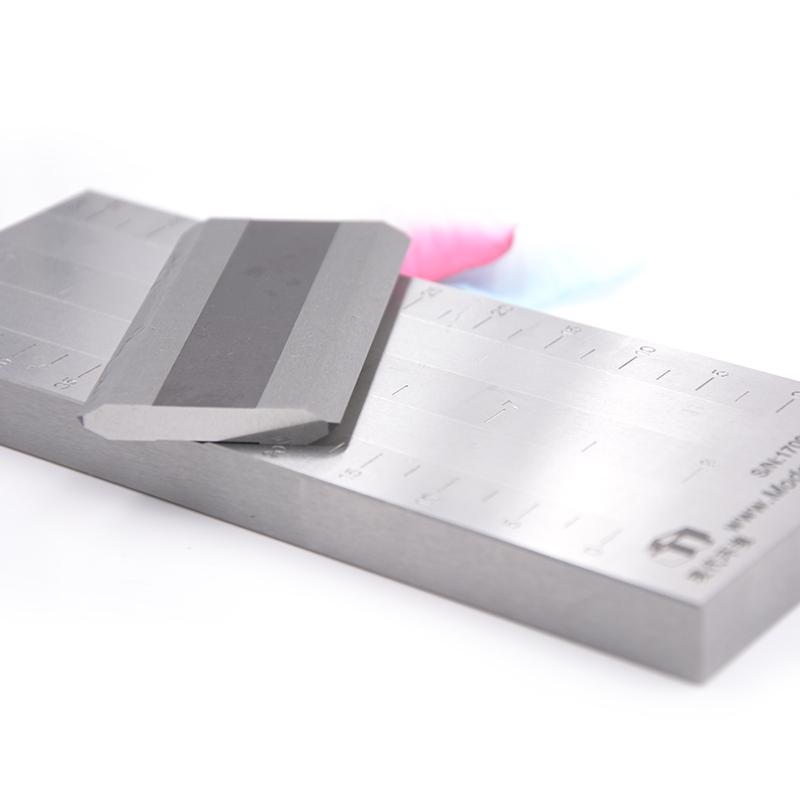

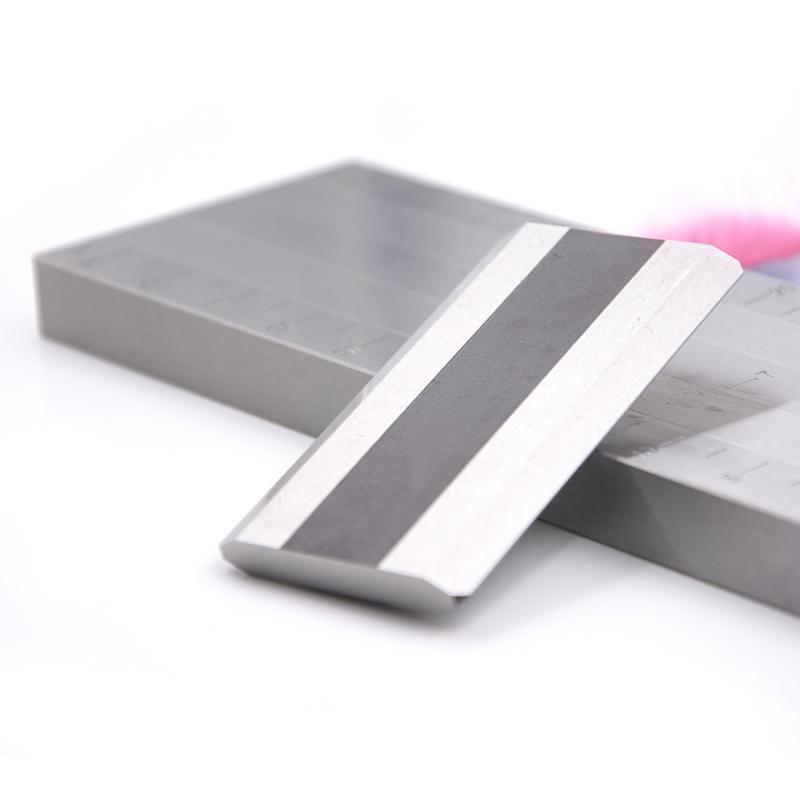

MODERNER QXD-25 small double-channel qxd Fineness gauge 25 micron particle Fineness gauge Picture

Introduction of small double groove qxd Fineness Meter

MODERNER QXD stainless steel Fineness of Grind Gauge is a small double-slot type qxd Fineness Meter, which is made of high-grade stainless steel, and the applicable measuring range is 0~25/50/100 microns. The Fineness of Grind Gauge is widely used in the measurement of the fineness of particles such as pigments and impurities in paints and varnishes. MODERNER is a qxd Fineness Meter designed and manufactured according to the verification regulations of the Ministry of Chemical Industry of the People's Republic of CHINA JJG (chemical) 018-96 "Fineness of Grind Gauge" and its GB/T1724 standard .

 The models of QXD-25/50/100 small double-slot qxd Fineness Meter are QXD-25, QXD-50, QXD-100, and the corresponding measuring ranges are 0~25 microns, 0~50 microns, 0~100 microns .

Steps for usage

1. Before using the qxd Fineness Meter , wash the plate and the bottom with a suitable solvent, and dry it with cotton yarn.

2. Fully stir the sample that meets the product standard viscosity index with an ink-adjusting knife.

3. Drop a few drops of sample solution into the deepest part of the groove of the stainless steel Grindometer.

4. Hold the scraper with the thumb, index finger and middle finger of both hands, and place it horizontally on the upper end of the stainless steel Grindometer, so that the scraper is perpendicular to the surface of the Grindometer, and pull the scraper from the deep part of the groove to the shallow part at an appropriate speed. The paint swatch fills the grooves without leaving excess paint on the panel.

5. After scraping, immediately (within no more than 5 seconds) pinch the fineness gauge horizontally and tilt it so that the line of sight is 15-20 degrees from the groove plane, and observe the scale of the particles in the groove and the exposed part with light value, the reading value is the fineness of the measured object.

Precautions for use

(1) Do not scratch the surface of the qxd fineness gauge and the scraper.

(2) Wash and apply vaseline to prevent rust after use.

(3) When measuring the fineness, the clear oil that meets the product standard should be adjusted and then measured.

(4) Regularly (one year) check the knife edge and the straightness of the fineness gauge. If unevenness or wear of the fineness gauge is found, it needs to be calibrated by the national metrology and verification agency before it can be used.

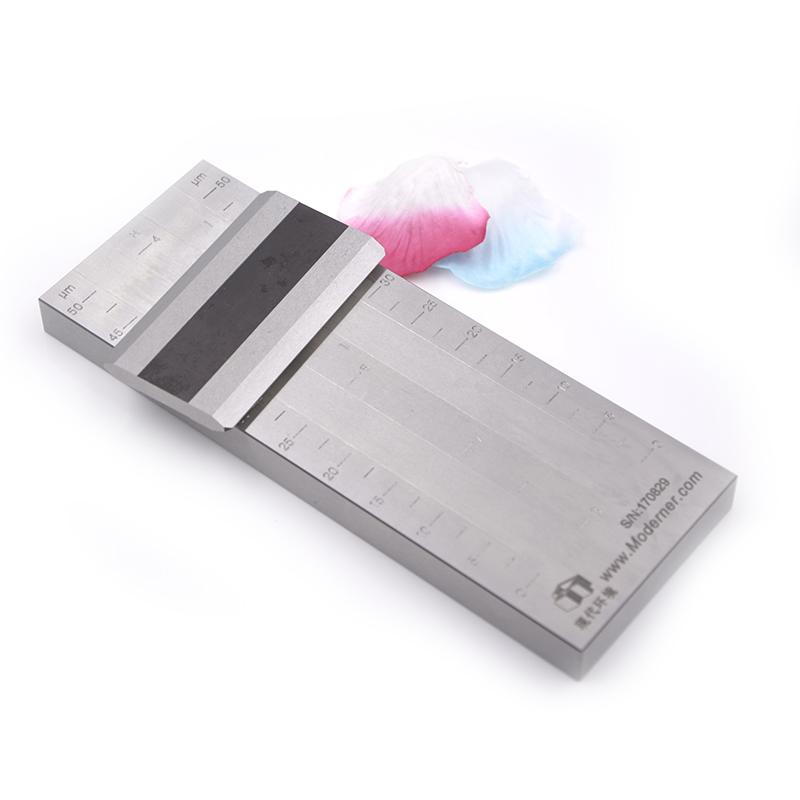

real shot

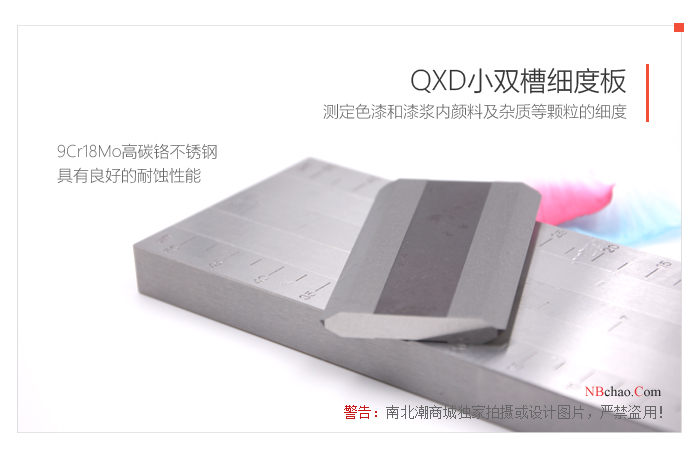

QXD-25 Fineness of Grind Gauge material description

Applicable standard of QXD-25 Fineness of Grind Gauge

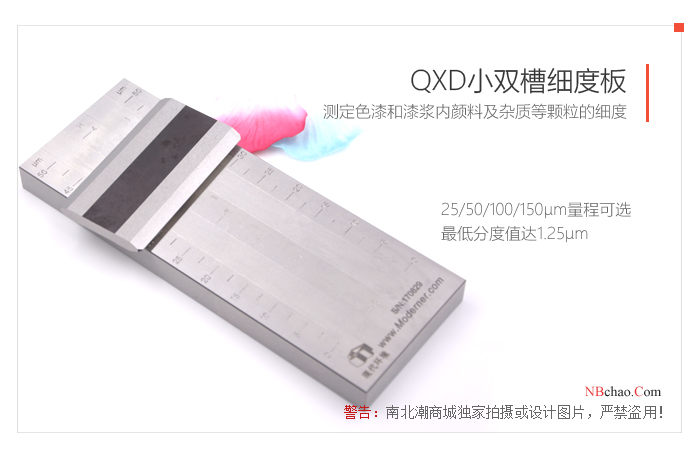

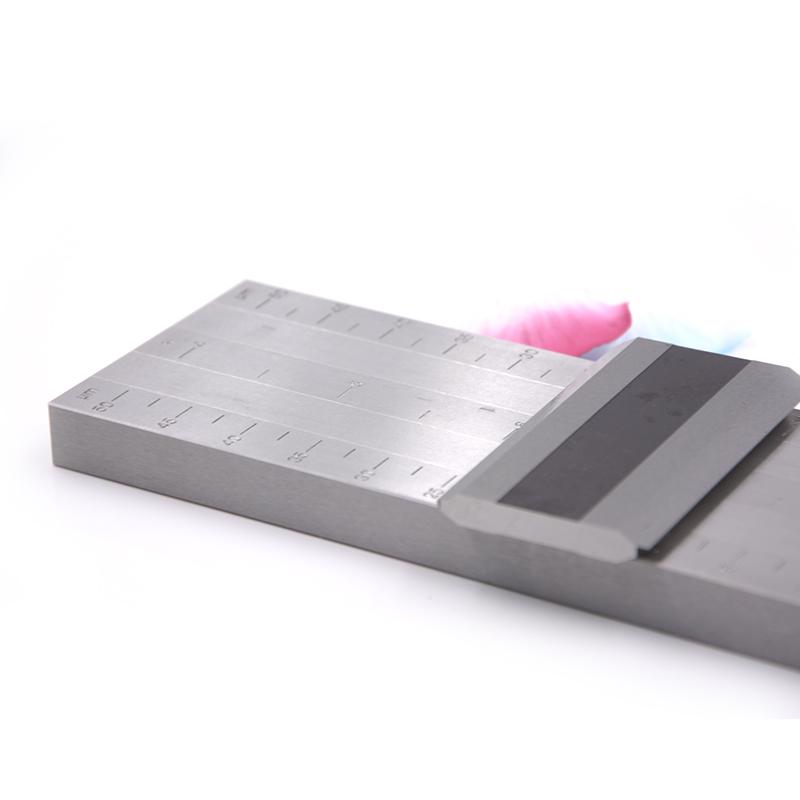

QXD-25 Fineness of Grind Gaugeing Range Minute Scale

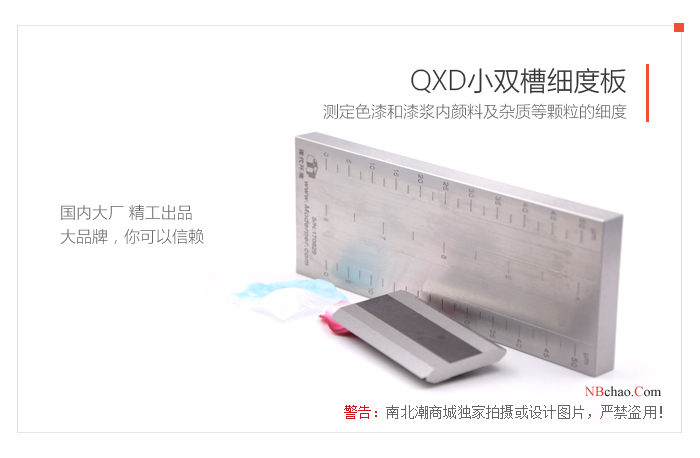

QXD-25 Fineness of Grind Gauge quality

MODERNER Fineness of Grind Gauge series specification list

MODERNER Fineness of Grind Gauge series specification list

Series

SpecificationRangeDivision valueEffective Groove Sizeunit
small single slot0-150.7512.7*140μm
0-251.2512.7*140Hegman/μm
0-502.512.7*140Hegman/μm
0-100512.7*140Hegman/μm
0-150512.7*140μm
small double slot0-252.512.7*140Hegman/μm
0-502.512.7*140Hegman/μm
0-100512.7*140Hegman/μm
0-150512.7*140μm
wide slot0-251.2525.4*127Hegman/μm
0-502.525.4*127Hegman/μm
0-100525.4*127Hegman/μm
large wide groove0-252.550.8*127Hegman/μm
0-50550.8*127Hegman/μm
0-100550.8*127Hegman/μm
Big double slot0-252.525.4*165Hegman/μm/NPIRI
0-50525.4*165Hegman/μm/NPIRI
0-100525.4*165Hegman/μm/NPIRI
Special double slot0-50225.4*165μm
0-2501025.4*165μm



FAQ
QCan the Fineness gauge test conductor paste?
A Hello, this one has a range of 0~ 25 microns, which can meet the range.
QCan the QXD25 Fineness gauge be used to scrape pigments up to 19 microns?
A Yes, the small double-channel scraper fineness Measurement can scrape 0~ 25μm or less material fineness.
QMeet the QB/T2025 small double-channel Fineness gauge
A QXD-25 (small double-channel) small double-channel Fineness gauge, please refer to it.
QFineness Measurement of Thermosetting Printing ink Slurry, What Specifications of Scraper Should Be Used?
A Printing ink needs to have a small Fineness, and you need to use the Grinder to grind the coarse material to a reasonable level. If it is to measure the Fineness at this time, it is recommended to buy a 0-25μm or even a smaller Fineness gauge.
QHow to Identify Paint Fineness on Fineness Meter?
A For the degree of Fineness meter, please refer to the following article: < a href = "https://www.nbchao.com/k/1875/" > How to read the scraper Fineness meter
QHow does the 2 paths scraper Fineness meter read?
A Hello, you can take a look at our knowledge article "How to Read the Scraper Fineness Meter":/k/1875
QIs this small 2 paths scraper Fineness meter 170x63.5mm in length and width?
A Hello, yes, the dimensions are 170x63.5x12.7mm.
QDoes it need to be calibrated?
A Under normal use, the scraper Fineness gauge does not need to be calibrated. Since the scraper is generally lower than the scraper hardness, long-term use will cause scraper abrasion, so the measurement of Fineness caused by high errors, in this case the Measurement Department needs regular verification. The detection method can vertically contact the blade of the scraper with the Fineness gauge surface to observe whether there are gaps and light leakage. If so, it indicates that the scraper abrasion is serious, and it is recommended to replace or repair.
