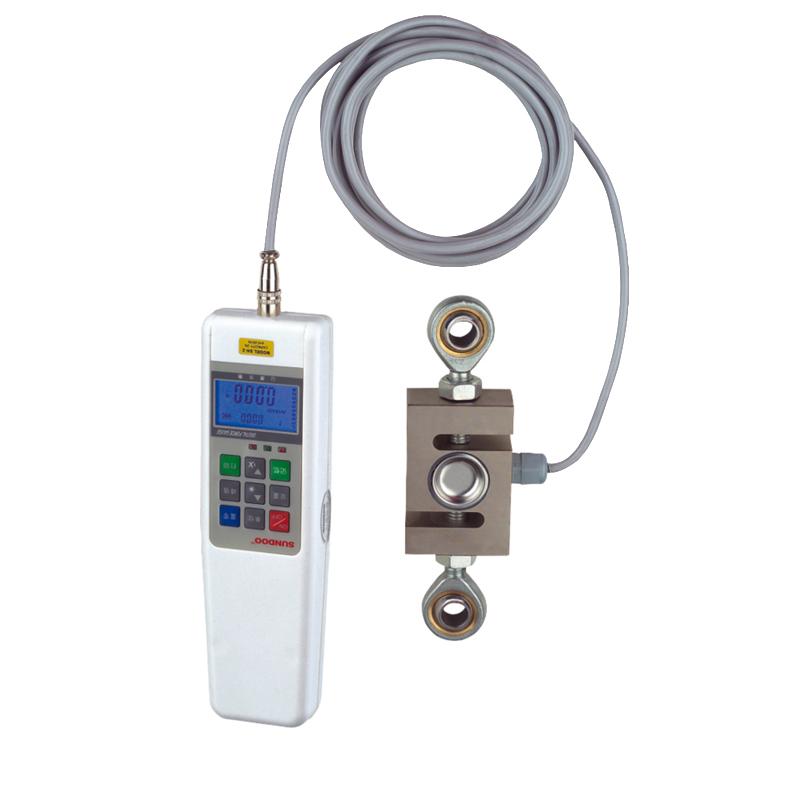

Sandu SHB-100K electronic tensile measuring range 100KN multi-function high-precision

SHB-100K

Tensile and Compression Force Gauge (Digital Display)

Product Description

The SHB-100K push-pull gauge is a small and convenient thrust and pull test instrument with high precision and high resolution; test direction display; blue backlight: upper and lower limit deviation value setting judgment: red and green indicator lights and bees and ducks automatically Sound and light alarm setting i can store TO group test data z automatic calculation of the average value of stored data: automatic conversion of three units N/kgf/lbf; data on the LCD can be flipped and displayed: peak hold function, peak automatic release function and release time Free setting: power-saving design of automatic shutdown without operation, free setting of shutdown time: serial port (RS-232C) output, connected to a PC to realize the curve test function, connected to a printer to print 10 sets of stored test data and the maximum value, The minimum value, the average value, the qualified or unqualified value judgment, and the special machine connected to realize the advantages of stopping the movement of the machine when the predetermined stop value is reached. Please read this manual carefully before using this instrument, so as to make full use of the functions of this instrument, so that the instrument can get the correct load value during testing.

Function

SHB-100K digital display push-pull force meter is a small multi-functional, high-precision push-pull load test instrument, suitable for push-pull load test, insertion force test, destruction test, etc. of various products, and can be combined with various machines and fixtures Combined into small testing machines for different purposes, it is a new generation of high-precision push-pull testing instruments.

Dimensions:

main feature:

1. High precision and high resolution;

2. The upper and lower limit deviation values can be freely set and judged, and the red and green indicator lights and buzzer automatic sound and light alarm settings;

3. Test direction display;

4. Can switch the blue backlight;

5. Can store 10 sets of test data, and automatically calculate the average value of the stored data;

6. Automatic conversion of three units N, kgf, lbf;

7. The data on the LCD can be flipped and displayed;

8. It has peak hold function, peak automatic release function and free setting of release time;

9. The power-saving design of automatic shutdown without operation, and the shutdown time can be set freely;

10. Serial port (RS-232C) output, connected to the computer to realize the curve test function, connected to the printer to print 10 sets of stored test data and maximum, minimum, average, shergh or unqualified value judgment, dedicated for connection When the machine reaches the predetermined stop value, the machine will stop moving.

Operating Environment:

1. Working temperature: 20℃±10℃;

2. Relative Humidity: 35%RH～65%RH;

3. There is no vibration source and no corrosive medium around.

Structure diagram:

Test bench (sold separately):

Packing list：host x1, manual x1, warranty card x1, certificate x1 Type-C USB data cable X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
