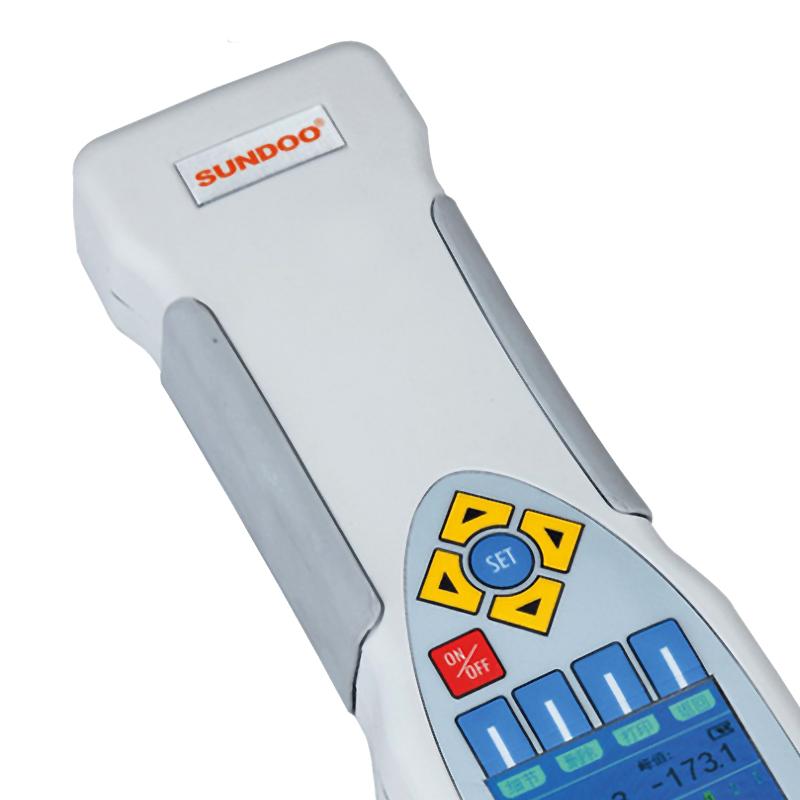

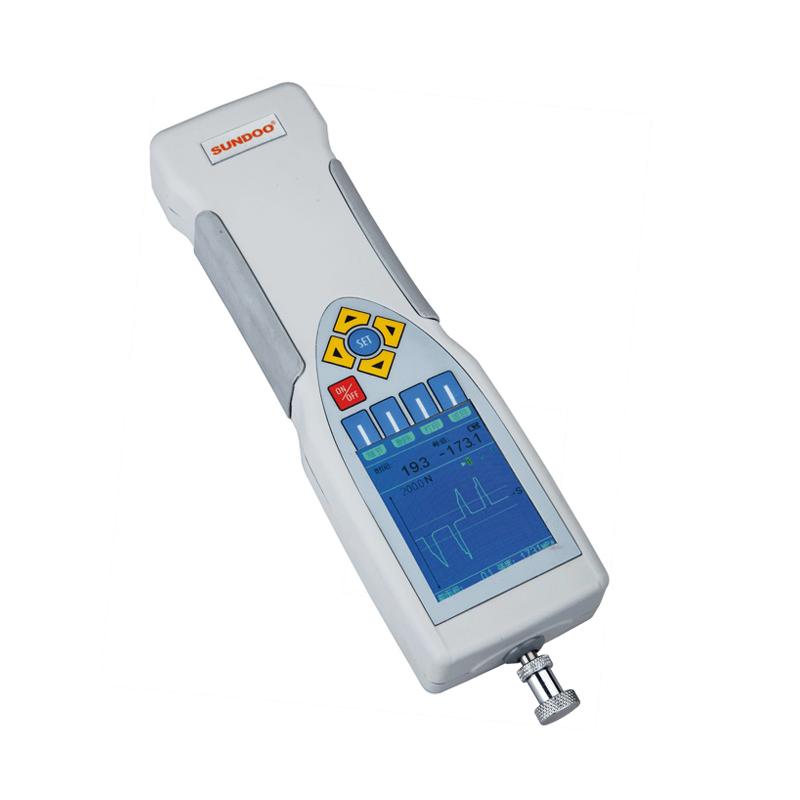

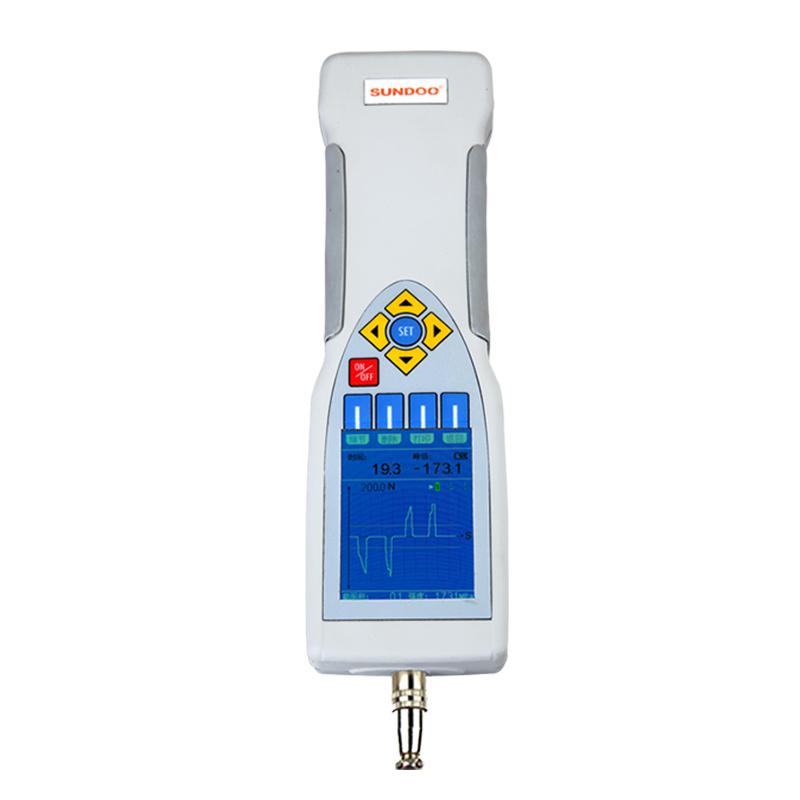

SUNDOO SP-100 Linear dispersion tensile testing instrument, range 100N built-in Sensors

SP-100

Force Gauge (graphic explicit)

Product Description

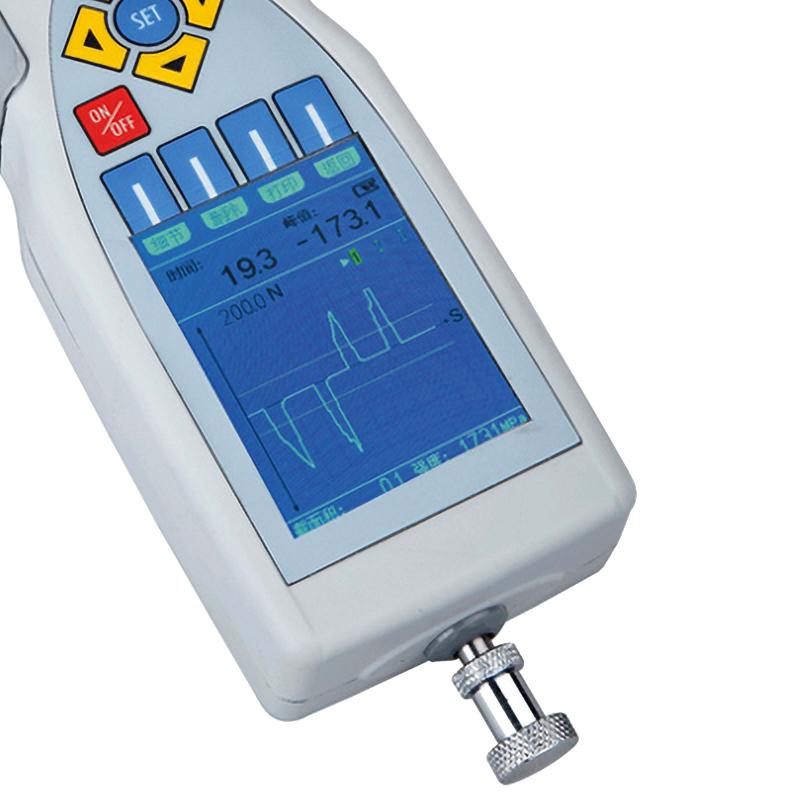

The SP-100 push-pull gauge is a small and convenient thrust and pull test instrument with high precision and high resolution; 240×320TFT color screen display curve monitors the whole process of testing; setting and judgment of upper and lower limit deviation values; buzzer automatic alarm setting; Can store 3 sets of test curves; four units N/kgf/lbf/ozf are automatically interchangeable; peak hold function, wax value automatic release function and release time can be set freely. 5 yuan operation and automatic shutdown power-saving design, shutdown time can be set freely Fixed: It can control the operation of the machine by connecting to the special machine, and it has the advantages of connecting to the PC through the USB port. Please read this manual carefully before using this instrument, so as to make full use of the functions of this instrument, so that the instrument can get the correct load value during testing.

Function

SP-100 graphic display push-pull force meter is a new generation of general-purpose portable graphic display push-pull load test instrument designed by our company. It is suitable for push-pull load test, insertion force test, destructive test, etc. of various products, and can be combined with various machines and fixtures to form small-scale testing machines for different purposes.

Dimensions:

main feature:

1. 240×320 pixel 65535 color TFT screen;

2. The peak value, real-time value and test process curve are displayed on the same screen, which can monitor and compel the whole test process;

3. The upper and lower limit deviation value can be freely set and judged;

4. The screen can be flipped and displayed;

5. Can store 3 sets of curve data;

6. Can store 70 sets of peak value and tracking value data;

7. The four units N, kgf 1 bf, ozf are automatically interchangeable;

8. With peak hold function, peak automatic release function and free setting of release time;

9. Test the material strength by inputting the cross-sectional area of the material;

10. The power-saving design of automatic shutdown without operation, and the shutdown time can be set freely;

11. It can be connected to a special machine, so that when the predetermined force value is reached, the machine will stop running;

12. The USB port is hot-swappable and connected to the PC. Through the supporting software, various modes of measurement can be realized, unlimited storage, transfer, and traceability of test curve data, and custom test reports.

Operating Environment:

1. Working temperature: 20℃±10℃;

2. Relative Humidity: 35%RH～65%RH;

3. There is no vibration source and no corrosive medium around.

Structure name map:

Test machine (need to be purchased separately):

Packing list：Host X1, power adapter X1, test head attachment X5, USB cable X1, matching CD X1, instruction manual, factory inspection certificate, certificate of conformity, warranty

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
