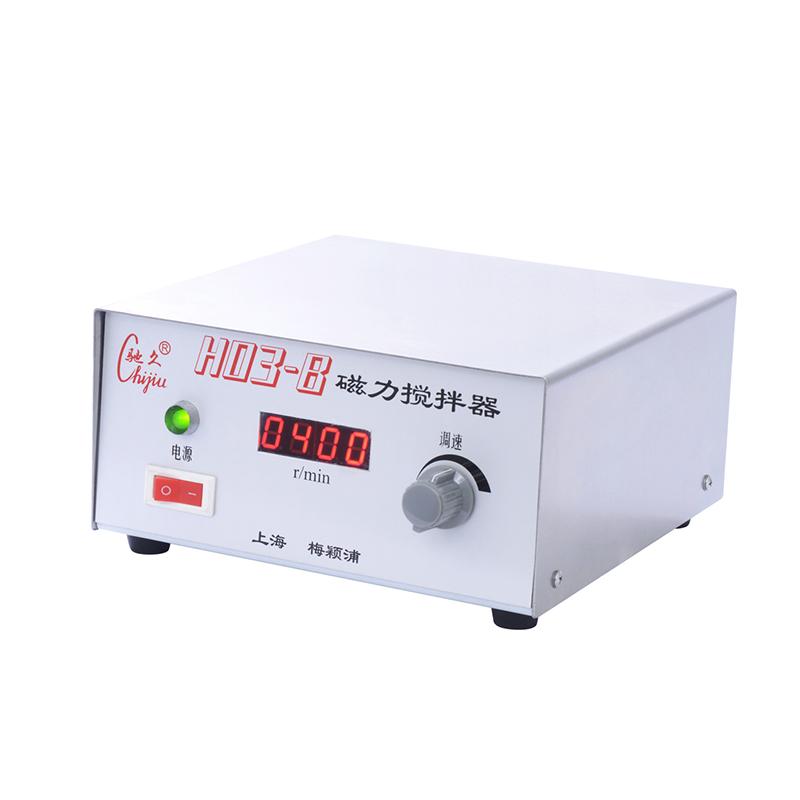

CHIJIU H03-B Large Capacity Single Stir Magnetic Stirrer Stir Capacity 20L

H03-B

Magnetic Stirrer

Max. stirring Capacity 20L, stirring speed 60~1500rpm, motor torque 73.5mN · M, continuous Operating Mode.

Product Description

The H03-B single-stirrer magnetic stirrer is a large-capacity single-stirrer magnetic stirrer, which is driven by a brushless DC motor, with stable speed, good speed regulation performance, large torque, and is not affected by power frequency. Sturdy, suitable for high-volume high-viscosity mixing.

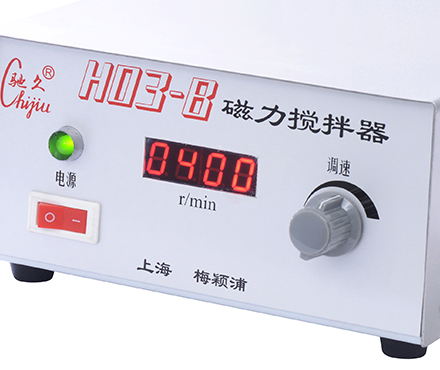

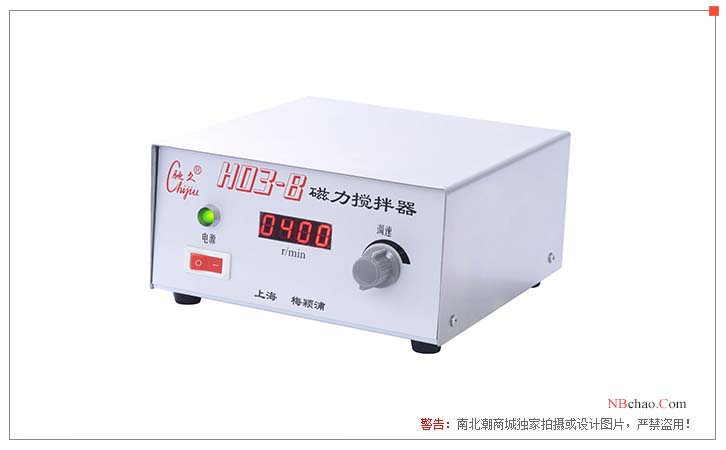

product display

Instructions

1. Test run: Place the H03-B single-stirring magnetic stirrer stably, plug in the power, turn on the power switch, the power indicator light is on, turn the knob clockwise, and you can hear the sound of the motor running from slow to fast in the machine. Indicated speed can exceed 1500 rpm at no-load. When the speed is less than 200 rpm, the electric meter indication may swing, which is a normal phenomenon. After the trial run is normal, adjust the speed to the lowest and shut down.

2. When in use, put the container in the middle of the stirrer, and put the stirrer so that the stirrer is in the center, then turn on the machine, adjust the knob, select the required stirring speed, and gradually accelerate or decelerate when adjusting the speed.

Note: The container needs to be made of non-ferromagnetic materials, and copper and aluminum containers should not be used as much as possible. The bottom needs to be smooth and the thickness should not exceed 10mm.

Precautions

1. The power supply should have reliable grounding:

2. The center of the working surface of the agitator is Φ85mm and cannot be concentrated to bear large pressure;

3. The liquid medicine in the container should not be overfilled, so as not to overflow when stirring;

4. It is forbidden to put the stirrer directly on the stirrer for trial operation.

Packing list：Host x1, Stir x1, instruction manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
