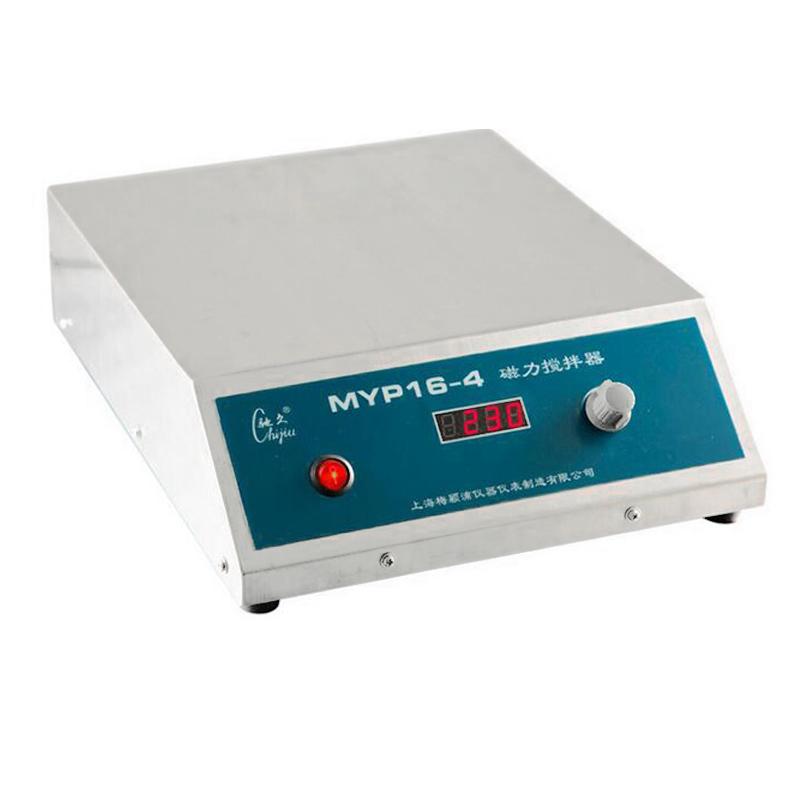

CHIJIU MYP16-4 Magnetic Stirrer Large Capacity Single Stir Digital Display

MYP16-4

Magnetic Stirrer

Max. stirring Capacity 20L, stirring speed 60~2000rpm, motor torque 73.5mN · M, continuous Operating Mode.

product description

The MYP16-4 magnetic stirrer is a large-capacity single-stirrer magnetic stirrer, which is driven by a brushless DC motor with stable speed and large torque. It is equipped with digital display speed, strong magnetic force, and sturdy structure, suitable for large-capacity stirring.

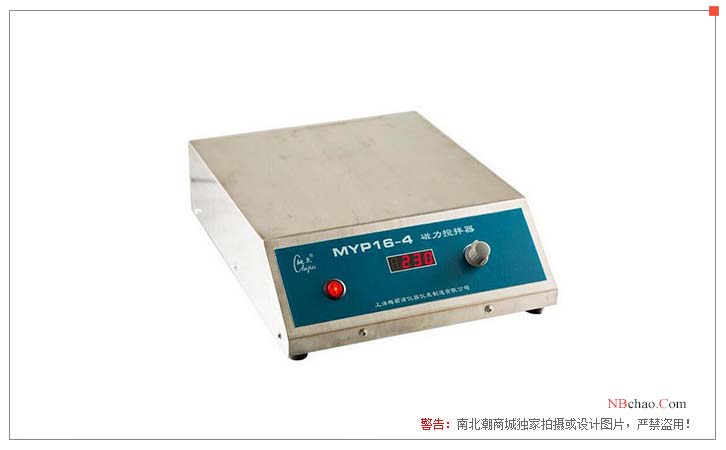

product display

Instructions

1. Test run: place the MYP16-4 magnetic stirrer stably, connect the power cord, plug in the power supply, turn on the power switch, the power indicator light is on, and the digital display is "0000". The sound of the motor running from slow to fast, and the digital indication of the speed, after the trial run is normal, turn the speed to the lowest and shut down.

2. When in use, put the container in the middle of the stirrer, and put the stirrer so that the stirrer is in the center, then turn on the machine, adjust the knob, select the required stirring speed, and gradually accelerate or decelerate when adjusting the speed.

Note: The container needs to be made of non-ferromagnetic materials, and copper and aluminum containers should not be used as much as possible. The bottom needs to be smooth and the thickness should not exceed 10mm.

Precautions

1. The power supply should have reliable grounding:

2. The center of the working surface of the agitator is Φ85mm and cannot be concentrated to bear large pressure;

3. The liquid medicine in the container should not be overfilled, so as not to overflow when stirring;

4. It is forbidden to put the stirrer directly on the stirrer for trial operation.

Packing list：Host x1, Power cord x1, Stir x1, Instruction manual x1, Certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
