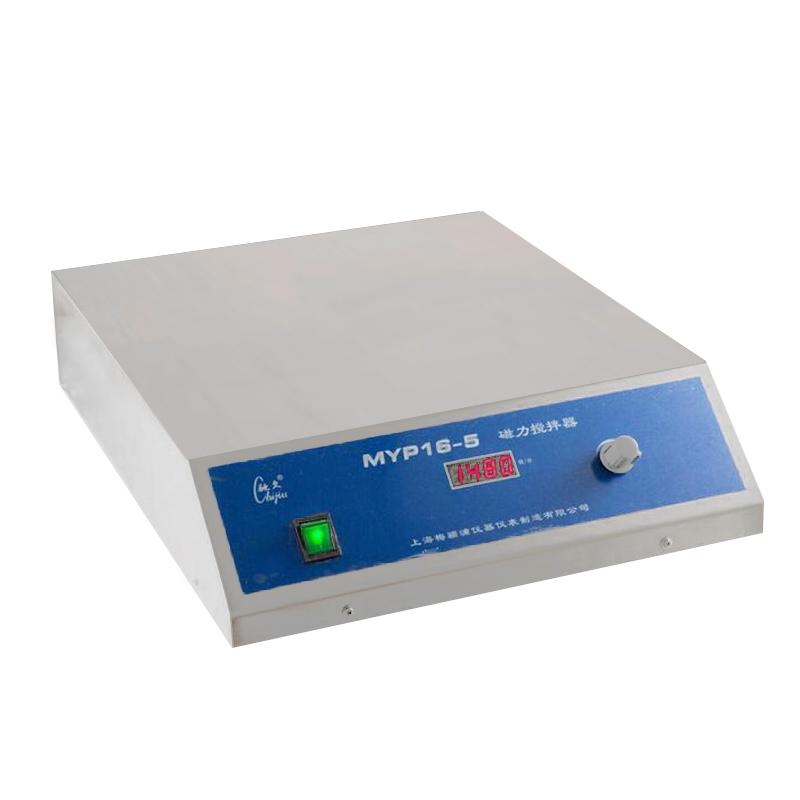

CHIJIU MYP16-5 Digital Magnetic Stirrer Stir Capacity up to 50L Extra Strong Magnetic Force

MYP16-5

Magnetic Stirrer

Max. stirring Capacity 50L, stirring speed 60~1400rpm, input power 100W

Description

The MYP16-5 digital display magnetic stirrer is a large-capacity, high-power single-stirring magnetic stirrer with a solid structure, driven by a three-phase brushless DC motor, with large torque and strong magnetic force, and equipped with a digital display speed, suitable for large volumetric stirring.

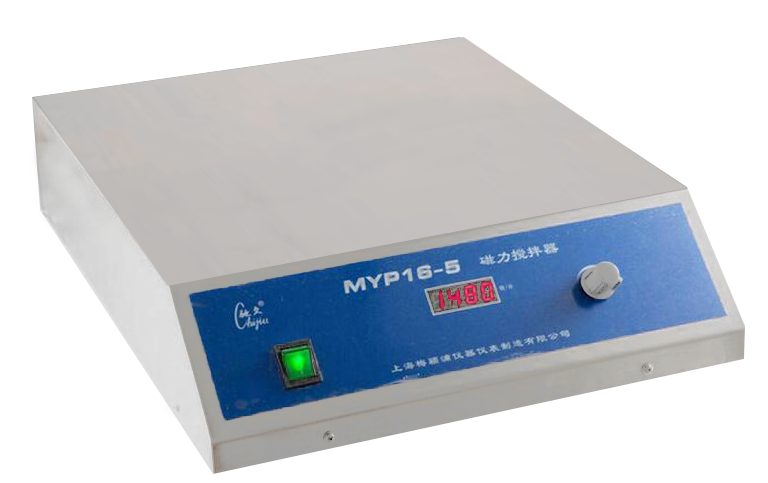

Product display:

Instructions:

1. Test run: place the mixer stably, connect the power cord, plug in the power supply, turn on the power switch, the built-in indicator light of the switch is on, the digital display is "0000", adjust the knob clockwise, the digital display speed, after the test run is normal, Turn the speed to the lowest and turn off the machine.

2. When in use, put the container in the center of the MYP16-5 digital display magnetic stirrer, and put the stirring bar so that the stirring bar is in the center, then start the machine, adjust the knob, and select the required stirring speed. When adjusting the speed, you must gradually to accelerate or decelerate. Note: The container needs to be made of non-ferromagnetic material with a smooth bottom and a thickness not greater than 10mm.

3. If the stirring bar is lost during use, it should be turned off immediately to prevent the stirring bar from demagnetizing.

Precautions:

1. The power supply should be well grounded.

2. The central Φ110mm of the working surface of the agitator should not be able to withstand large pressure.

3. The liquid medicine in the container should not be overfilled, so as not to overflow when stirring.

4. It is forbidden to put the stirrer directly on the stirrer for trial operation.

5. Due to the strong magnetic force of the large-capacity magnetic stirrer, the friction between the stirrer and the bottom of the container is relatively large. The user should use a container with a small friction coefficient as much as possible, and always pay attention to the wear of the stirrer. If the stirrer is severely worn, The friction will increase, overloading the motor or even stalling and damaging the motor. Therefore, you should always observe the display status of the tachometer during use. If you find that the speed drops, suddenly stops, or it is difficult to start, you should shut down the machine immediately.

6. The higher the rotation speed in use, the faster the agitator will wear out, so the rotation speed should not be too high, as long as the stirring effect can be achieved.

Packing list：Host x1, Power cord x1, Stir x1, Instruction manual x1, Certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
