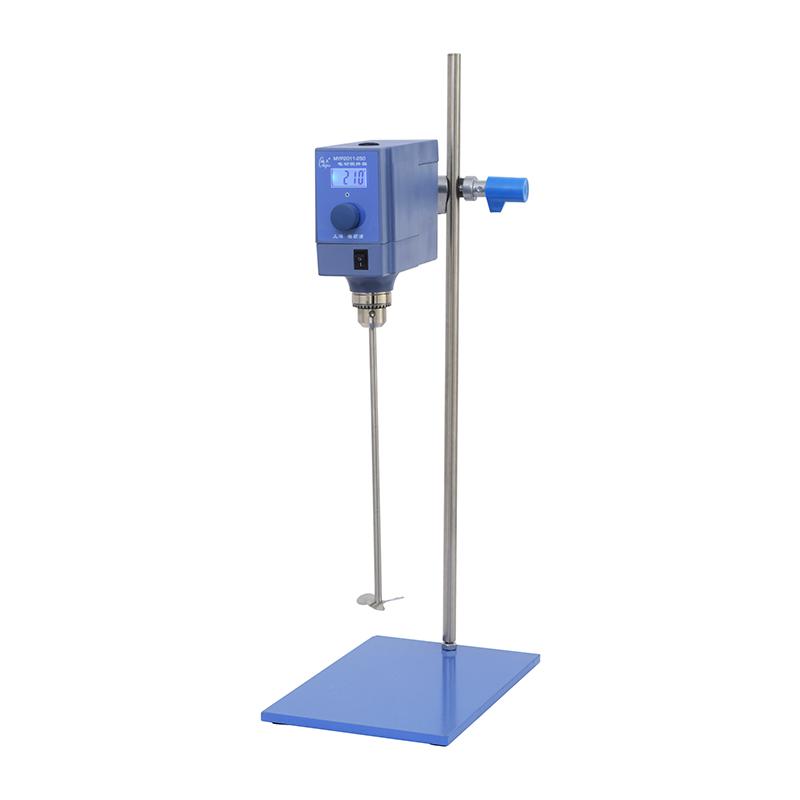

CHIJIU MYP2011-250 Overhead Stirrer LCD digital display Stir power 250W

MYP2011-250

Overhead Stirrer

The power is 250W, the speed range is 60~1500rpm, the clamping range of the rotary chuck is φ 1.5~ 13mm, the diameter of the string core is φ 8.5, the distance from the chuck to the column is 160~270mm, and the maximum distance of the chuck is 560mm.

Product Description

MYP2011-250 agitator is driven by brushless DC motor, controlled by single-chip microcomputer, closed-loop speed regulation, stable speed, LCD display speed, rotary encoder operation, serial core stirring paddle.

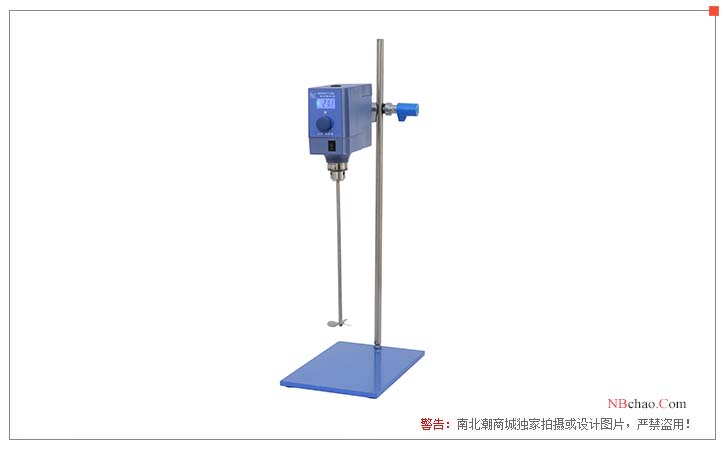

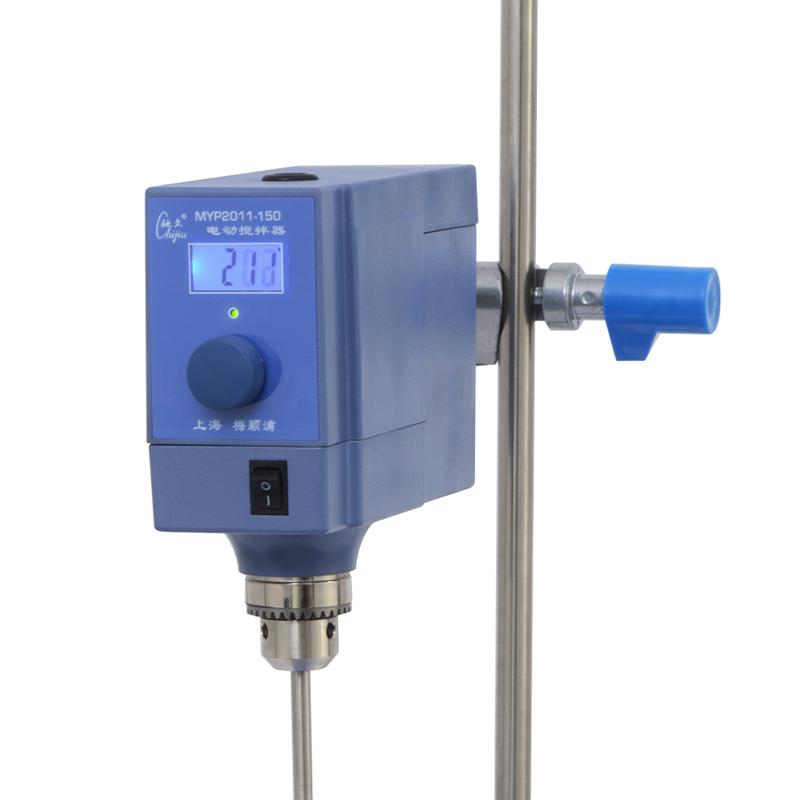

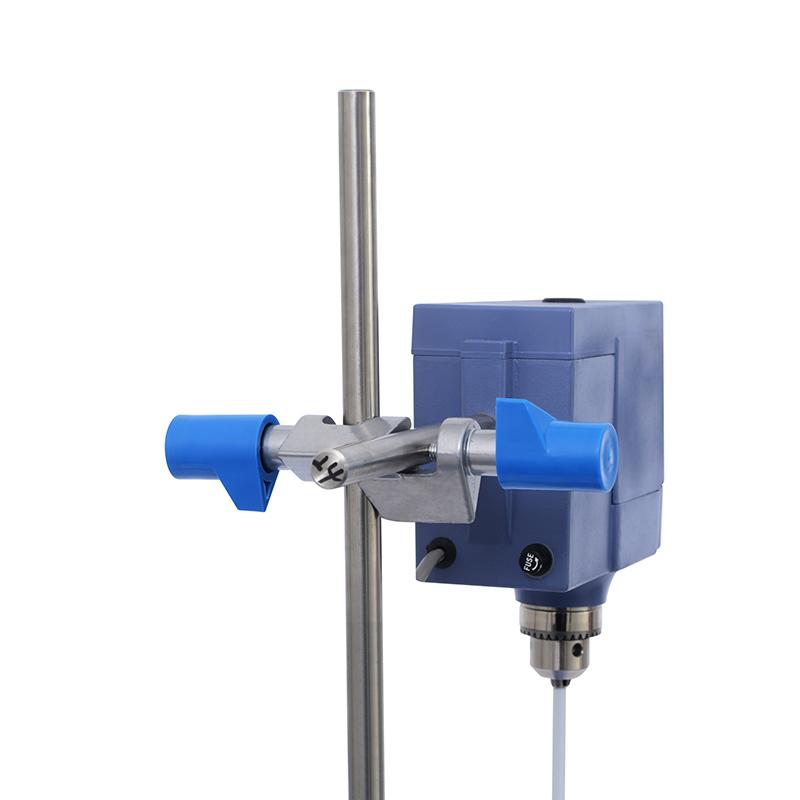

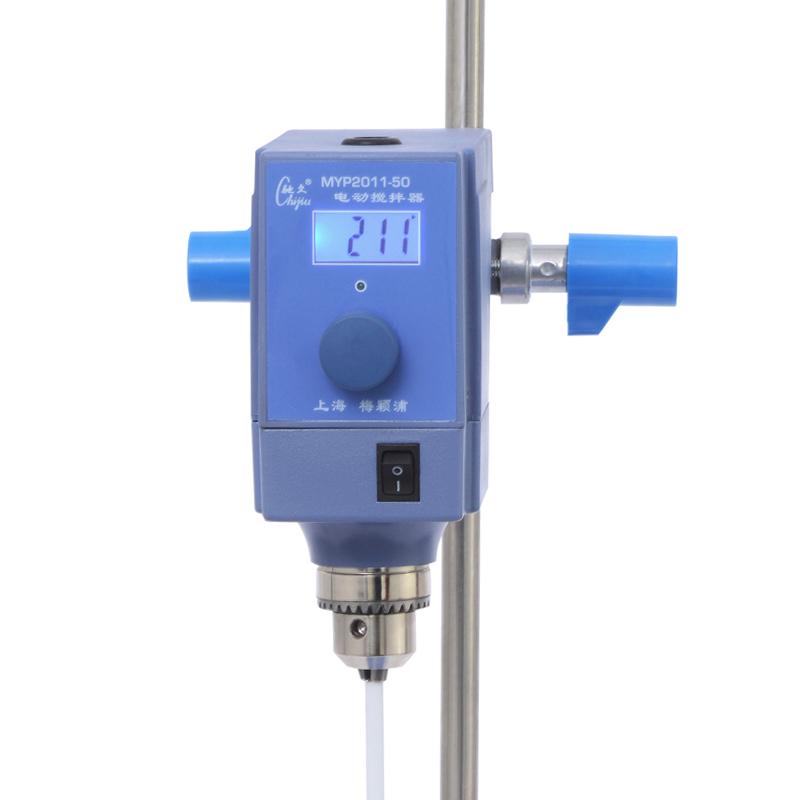

product display

Instructions

1. Speed setting, turn the knob to set the desired speed (clockwise up, counterclockwise down).

2. After the speed is set, press the knob to start stirring. If you don't reset it, it can be stored for a long time. Press the knob once while the mixer is running, and the mixing will stop.

3. During the stirring process, turn the knob to modify the set speed. When the knob is rotating, the LCD will display the speed being modified, and the actual speed will be displayed after the knob stops rotating for 1 second. The modified speed during the stirring process will not be saved.

Precautions

1. When the stirrer is used, it should be accelerated slowly from slow to fast. If the straightness of the stirring rod is poor, the speed cannot be fast or the soft connection shaft should be used and the middle should be fixed with a support sleeve.

2. Please do not get too close when the mixer is working, so as to avoid dangers such as clothes and hair being involved;

3. Avoid liquid splashing when stirring.

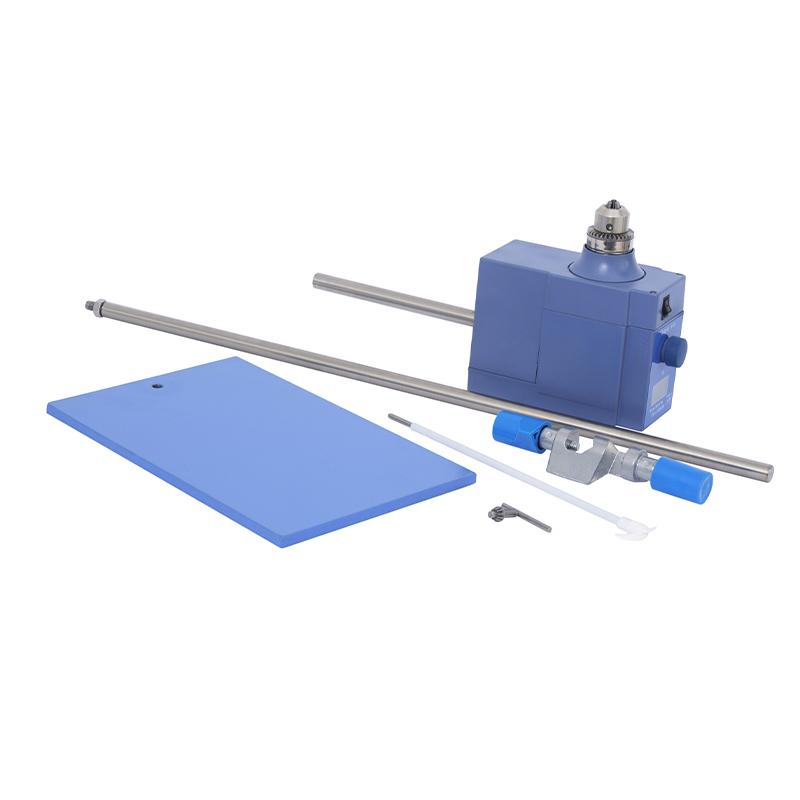

Packing list：host x1, stirringrod x1, base x1, cross section x1, column x1, drill wrench x1, instruction manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
