CHIJIU D2004W digital Overhead Stirrer digital display Stir power 40W

D2004W

Overhead Stirrer

The power is 40W, the speed range is 60~1500rpm, the clamping range of the rotary chuck is φ 1.0~10mm, the maximum distance of the chuck is 560mm, and the distance from the chuck to the column is 160-270mm.

Product Description

D2004W digital display electric agitator is driven by brushless DC motor, which has no spark, high efficiency, large torque, very small temperature rise of the motor, and digital display of stirring speed.

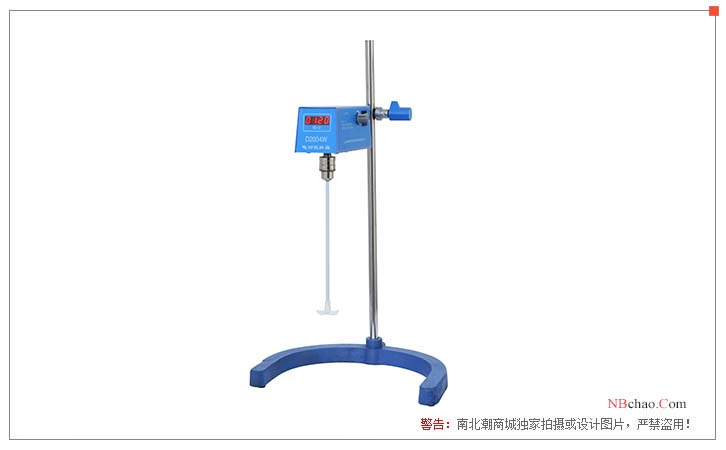

product display

Instructions

1. Installation: Install the column into the base and tighten it, tighten the screws, install the ten-byte on the column, and insert the cross-bar of the host into the ten-byte to fix;

2. Install the stirring rod before use. The stirring rod can be directly loaded into the chuck for clamping, but the straightness of the stirring rod must be ensured, and the stirring rod can be connected with a soft connection shaft;

3. Before turning on the machine, first put the power switch in the off position, turn the knob counterclockwise to the minimum, then plug in the power supply, turn on the power switch, the built-in indicator light of the switch is on, and the speed display is "0000", slowly adjust the knob clockwise to required speed.

Precautions

1. When the stirrer is used, it should be accelerated slowly from slow to fast. If the straightness of the stirring rod is poor, the speed cannot be fast or the flexible connecting shaft should be used and fixed with a support sleeve in the middle.

2. When the D2004W digital display electric mixer is working, please do not get too close to avoid dangers such as clothes and hair being involved;

3. Avoid liquid splashing when stirring.

Packing list：host x1, base x1, cross section x1, column x1, drill wrench x1, instruction manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
