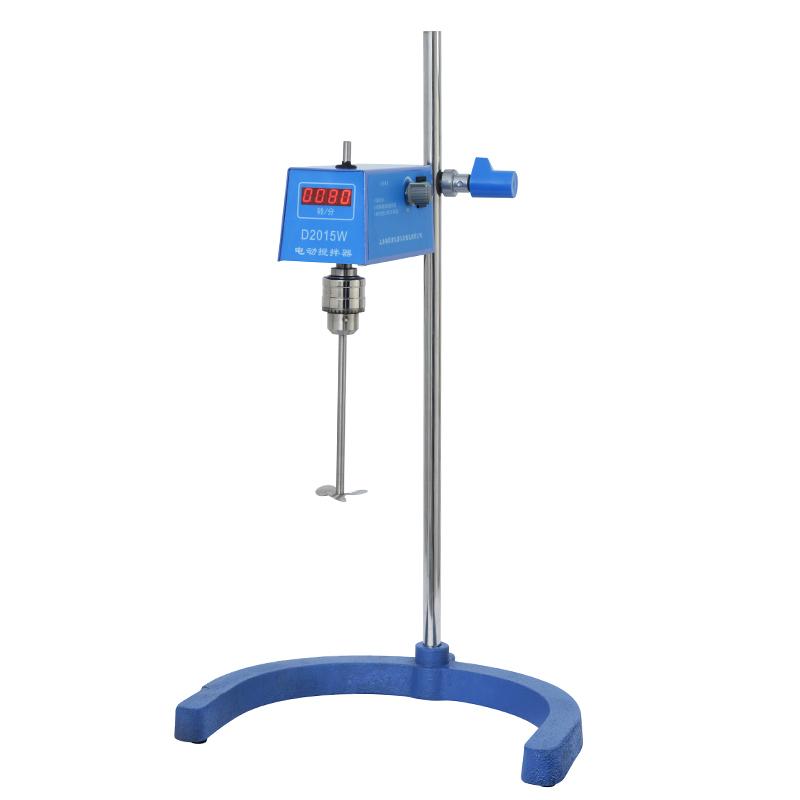

CHIJIU D2015W Overhead Stirrer Stir 150W high viscosity liquid Stir

D2015W

Overhead Stirrer

The power is 150W, the speed range is 50~1500rpm, the clamping range of the rotary chuck is φ 1.5~ 13mm, the distance from the chuck to the column is 160~270mm, and the maximum distance of the chuck is 560mm.

Product Description

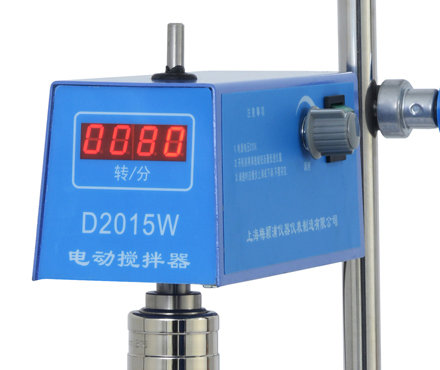

The D2015W electric mixer is driven by a DC three-phase brushless motor, which has no spark, high efficiency, large torque, and minimal temperature rise of the motor. It can adapt to high-viscosity liquid stirring, and the stirring speed is digitally displayed.

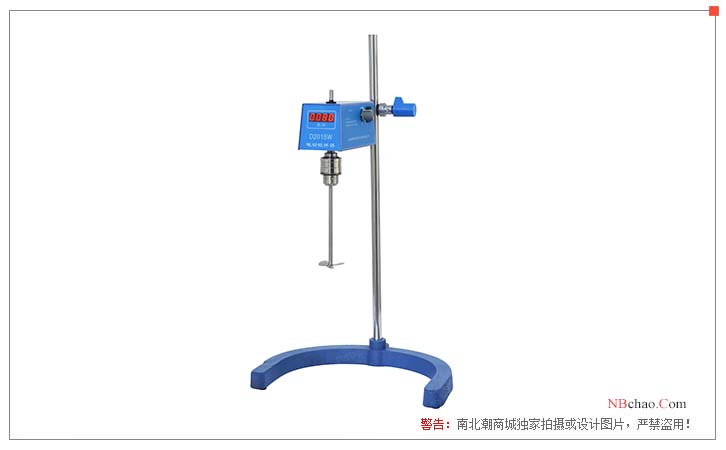

product display

Instructions

1. Installation: Install the column into the base and tighten the set screws, install the ten-byte on the column, adjust the height and distance and fix it;

2. Install the stirring rod before use. The stirring rod can be directly loaded into the chuck for clamping, but the straightness of the stirring rod must be ensured, and the stirring rod can be connected with a soft connection shaft;

3. Before turning on the machine, first put the power switch in the off position, turn the knob counterclockwise to the minimum, then plug in the power supply, turn on the power switch, the built-in indicator light of the switch is on, and the speed display is "0000", slowly adjust the knob clockwise to required speed.

Precautions

1. When the D2015W electric mixer is used, it should be accelerated slowly from slow to fast. If the straightness of the stirring rod is poor, the speed cannot be fast or the flexible connection shaft is used and the middle is fixed with a support sleeve.

2. Please do not get too close when the mixer is working, so as to avoid dangers such as clothes and hair being involved;

3. Avoid liquid splashing when stirring.

Packing list：host x1, base x1, cross section x1, column x1, drill wrench x1, instruction manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
