PUSHEN HGQ 1mm Single Blade Cross Hatch Cutter Standard 2 1mm Single Blade Cross-cut Testers

SE
1Mm tooth spacing, 11 teeth; 2 single-sided stainless steel cutter heads; wooden handle; suitable for 0-60um film thickness; in line with GB/T9286, ASTM/D3359 standards.
$179.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Pushen HGQ 1mm Single Blade Cross Hatch CutterSPEC

Pushen HGQ 1mm Single Blade Cross Hatch CutterDetails

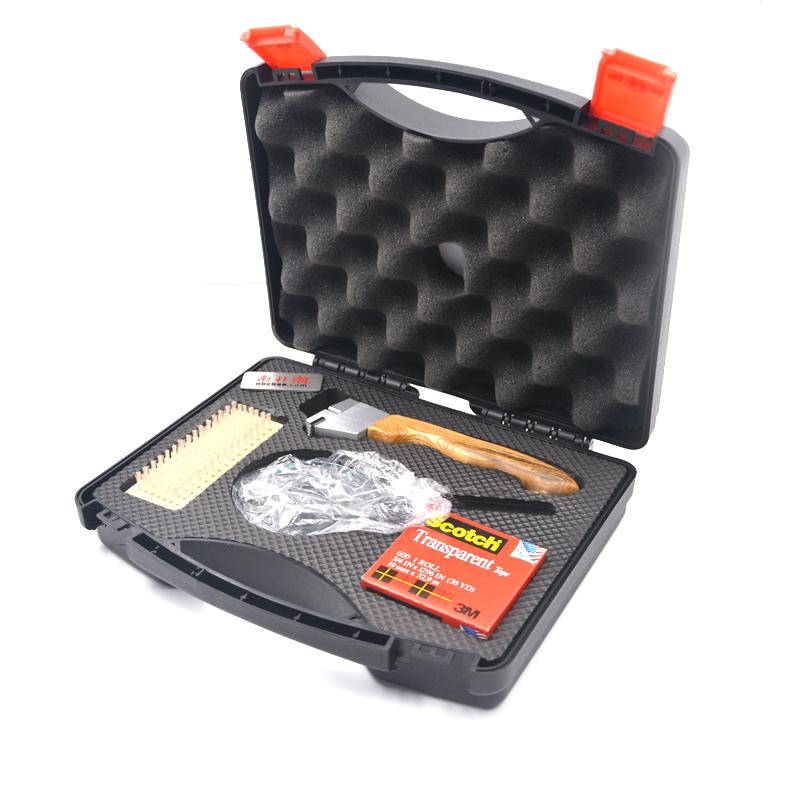

Pushen HGQ 1mm Single Blade Cross Hatch CutterPacking list

SKU
NB005480
Number of teeth
11 teeth
Tooth spacing
1mm
Handle material
hardwood
application standard
GB/T 9286、ASTM D 3359
HGQ 1mm
Single Blade Cross Hatch Cutter
1Mm tooth spacing, 11 teeth; 2 single-sided stainless steel cutter heads; wooden handle; suitable for 0-60um film thickness; in line with GB/T9286, ASTM/D3359 standards.
PUSHEN HGQ 1mm Single Blade Cross Hatch Cutter Standard 2 1mm Single Blade Cross-cut Testers Picture

Introduction

Pushen HGQ 1mm single-edged paint film scratcher is a cross paint film scratcher with 11 teeth and 1mm spacing between the teeth. The paint scratcher comes standard with two 1mm single-edged blades.

Standards

Comply with GB/T 9286 Paints and varnishes, scratch test of paint film, ISO 2409, ASTM D 3359 standards.

application principle

The paint film scratcher, also known as the hundred grid knife, is used to evenly draw a square of a certain size, and evaluate the adhesion of the coating film to the substrate by evaluating the integrity of the coating film in the square.

Paint film scratcher application

It is mainly used for the determination of the cross-hatch adhesion of coatings, not only for laboratories, but also for construction sites under various conditions.



FAQ
QCan this tooth pitch be selected 1mm separately? Can this cutter head be replaced?
A Hello, the cutter head of the scratcher can be replaced at any time. Pushen comes standard with two 1mm cutter heads.
QDetermination of water-based interior-wall Coating adhesion, is this cross-cutting knife suitable?
A This model is suitable for the determination of water-based inner and outer wall Coating adhesion in architectural coatings. The cross-cut test is mainly carried out with knives, and the firmness of the Coating to the substrate is judged according to the number of squares of the film peeling. Use a sharp blade and a scale steel ruler to cut 11 cuts with a distance of 1mm in the vertical and horizontal directions of the test plate, and the vertical and horizontal cuts intersect into 100 squares. So it is applicable.
QAre all Single Edge Cross Hatch Cutters available for inspection in the ISO 2409 standard?
A Not necessarily, but this HGQ 1mm Single Blade Cross Hatch Cutter can be considered.
QHow many knife heads does this HGQ Cross-Cut Tester come standard with?
A Hello, two 1mm ones.
