China

Junengda WGG60-E4 Glossiness Meter

SE
JND WGG60-E4 surface Glossiness Meter, portable surface Glossiness Meter, the measurement Gloss range is 0.0~199.5GU, WGG60-E4 adopts imported chips, the efficiency is as high as 97%, and it has error compensation function, which can test emulsion paint, paint, Coating, plastic, furniture surface glossiness.
$242.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

JND WGG60-E4 Glossiness meterSPEC

JND WGG60-E4 Glossiness meterDetails

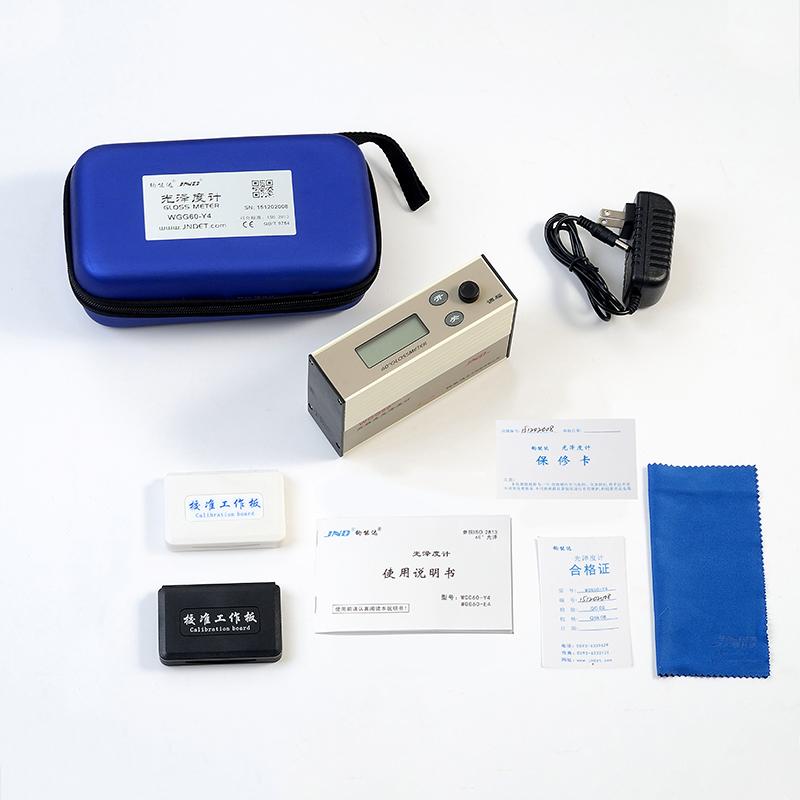

JND WGG60-E4 Glossiness meterPacking list

SKU
NB005485
Geometry
60°
Measurement range
0~199.5GU
Measuring Areas
36*18mm
Error of indication
±1.5GU
Division Value
0.5GU
Standards
ASTM D2457、ASTM D523、GB/T13891 GB/T7706、GB/T8807、JJG 696-2002
Operating language
Chinese
Dimensions
130*40*80mm
Weight
430g
Power
AC110~240(50/60HZ)V
Zero Error
0GU
Stability
1GU
Charging time
14~16h
Operating Time
>48h
Power
Built-in Ni-MH battery pack
Operating Temperature
15~40℃
Environment Operating Humidity
< 85%, no condensation
Storage temperature
-10℃~60℃
WGG60-E4
Glossiness meter

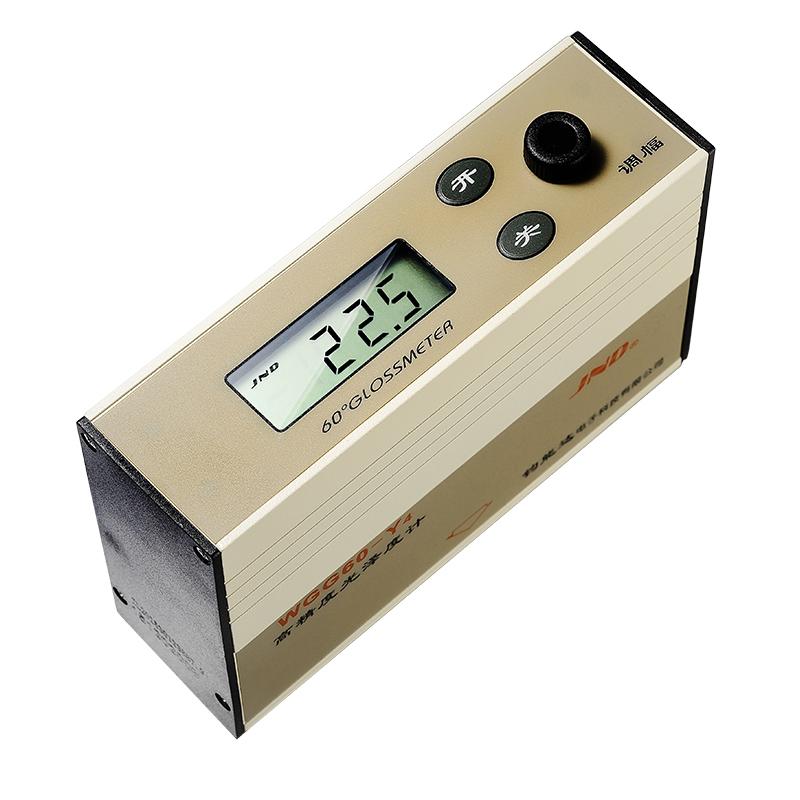

Junengda WGG60-E4 Glossiness Meter Picture

WGG60-E4 gloss meter is a gloss measuring instrument designed and manufactured with reference to the international standard ISO 2813 and Chinese national standard GB/T9754. Regulation. All performance indicators have reached the requirements of the second-level working machine in the national standard JJG 696-2002 "Mirror Mirror Gloss Meter and Gloss Plate" in the metrological verification regulations.

Instrument gloss values are traceable to the Shanghai Institute of Metrology and Testing Technology (SIMT) gloss benchmark.

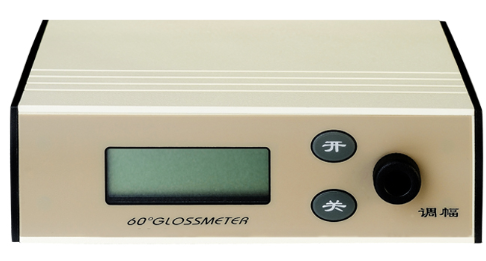

WGG60-E4 gloss meter

Application

1. Surface gloss measurement of ink, paint, baking varnish, paint, varnish, etc.

2. Building and decoration materials: surface gloss measurement of stone, ceramics, tiles, marble, vitrified polished tiles, etc.

3. Surface gloss measurement of printing, bamboo and wood products, cloth, film paper, plastic, etc.

4. Surface gloss measurement of rubber, leather, car maintenance, etc.

5. Surface gloss measurement of other non-metallic materials.


Advantages

1. Classic upgrade, high-end quality: Imported chips are used, and the efficiency is as high as 97%. The instrument can be used for up to 48 hours after a full charge, which is a professional level in the industry. It can be charged once a month for normal daily use.

2. The unique on-site error compensation function design can effectively eliminate errors and ensure accurate and reliable measurement data.

3. National first-level standard black (high) white (low) calibration plate, in line with national standards, can easily pass the metrological verification.

4. With professional optical path design, the measurement data is stable and reliable, with minimal inter-stage difference and excellent reproducibility.

5. Patented ergonomic shell, the ingenious center configuration echoes the shell, making the measurement handy. Upgrade button, instant test

6. Ultra-wide Voltage, covering the whole world.

7. The soft surface treatment of the bottom probe effectively prevents scratches on the measured items.


Model Selection

modelMeasuring rangeprecisiongradespotpower supply
Small and portable - without self-aligning base
JND-A600.0~199.5GU0.5GUNational Standard Level 2Medium spot 36*18mm
Comes with built-in rechargeable battery
JND-P600.0~199.9GU0.1GUNational Standard Level 1
JND-M600.0~199.9~1999GU (automatic switching)0.1/1GUNational Standard Level 2
Ultra-Small Portable - Smart Self-Calibrating Stand
MA60.0~199.5GU0.5GUNational Standard Level 2Small spot 9*18mm
Rechargeable or alkaline battery 1.2~1.5V (AA) No. 5 battery 1 piece
MP60.0~199.9GU0.1GUNational Standard Level 1
MM60.0~199.9~1999GU (automatic switching)0.1/1GUNational Standard Level 2
Ultra-small small hole curved surface portable - smart self-aligning base
XA60.0~199.5GU0.5GUNational Standard Level 2Super small spot 1.5*3mm
Rechargeable or alkaline battery 1.2~1.5V (AA) No. 5 battery 1 piece
XP60.0~199.9GU0.1GUNational Standard Level 1
XM60.0~199.9~1999GU (automatic switching)0.1/1GUNational Standard Level 2
Small Portable - Classic Upgrade
WGG60-E40.0~199.5GU0.5GUNational Standard Level 2Medium spot 36*18mmAutomatic built-in rechargeable battery
WGG60-Y40.0~199.9GU0.1GUNational Standard Level 1
WGG60-EJ0.0~199.9~1999GU (automatic switching)0.1/1GUNational Standard Level 2


FAQ
QWhat is the test angle of the Gloss meter of Junnengda WGG60-E4? What is the range?
A Hello, WGG60-E4 is a 60 ° projection angle, and the measurement range is 0.0~ 199.5GU.
QHow long can Junnengda Gloss Meter be tested when fully charged?
A Hello, this WGG60-E4 gloss meter can be continuously tested for up to 48 hours.
QIs the black and white work board required for the Gloss meter?
A Gloss instruments that meet national standards need to be equipped with independent black and white working boards. Mainly used to verify whether the measurement performance of the instrument has exceeded the standard.
QCan Junnengda WGG60-E4 and Keshijia's Gloss tester of the same model be used instead?
A Hello, yes, the technical parameters such as range are the same.
QMeet ASTMD1455 gloss meter
A WGG60-E4 gloss meter, please refer to it.
