Germany IKA RW 16 basic overhead electronic Stirrer large stirring capacity of 10L

The German IKA RW 16 basic overhead electron Stirrer is a laboratory Stirrer with a RW 16 Max. stirring capacity of 10 L H2O and a Rotation speed of 40 to 1,200 rpm.
Model：
Contact
Details SPEC

IKA RW 16 Overhead Electronic StirrerSPEC

IKA RW 16 Overhead Electronic StirrerDetails

IKA RW 16 Overhead Electronic StirrerPacking list

SKU
NB005530
RW 16
Overhead Electronic Stirrer
Germany IKA RW 16 basic overhead electronic Stirrer large stirring capacity of 10L Picture

Introduction

Laboratory mixer, suitable for simple work, with a maximum mixing capacity of 10 L H2O and a speed of 40 – 1,200 rpm. It is especially suitable for schools, universities and laboratory tests.

- No need to change gears through gears, infinitely variable speed regulation

- Compact design

- Silent operation

- Safety loops

- Overload protection

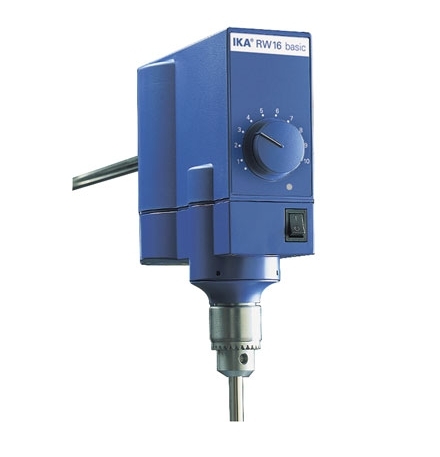

German IKA RW 16 basic overhead electronic stirrer

 Parameters

Maximum stirring capacity (H2O)

10 l

Motor input power

75 W

Motor output power

55 W

Rotational speed display

scale

Speed range

40 - 1200 rpm

Maximum viscosity

10000 mPas

Maximum output power of the stirring shaft

53 W

Continuous operation time is allowed

100 %

Maximum torque of the stirring shaft

40 Ncm

Maximum shaft torque (overload) at 60 rpm

50 Ncm

At 100 rpm, the maximum torque of the mixing shaft

48 Ncm

At 1000 rpm, the maximum torque of the stirring shaft

34 Ncm

Rotational speed control

Stepless

The impeller is fixed

Rotary chuck

The minimum diameter of the rotor chuck clamping range

0.5 mm

The rotor head clamps the maximum diameter

10 mm

Hollow shaft, inner diameter

11 mm

Hollow shaft (stop-state can be inserted)

be

Bracket fixation

Bracket?? Extension arm

Extension arm diameter

13 mm

Extend the arm length

160 mm

Torque display

No

Rated torque

0.4 Nm

Dimensions

80 x 222 x 190 mm

weight

2.8 kg

Allowable ambient temperature

5 - 40 °C

Relative Humidity is allowed

80 %

DIN EN 60529 protection method

IP 42

RS 232 interface

No

Analog output

No

Voltage

230 / 115 / 100 V

frequency

50/60 Hz

Instrument input power

75 W
