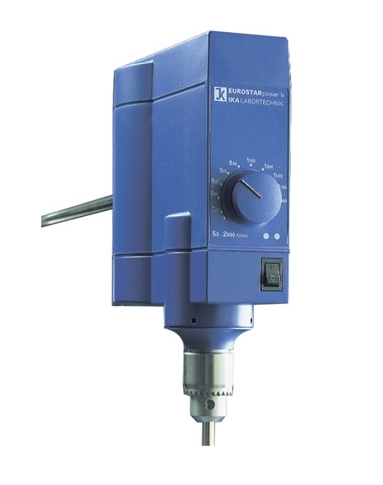

Germany IKA High Speed Stirrer Eurostar, Powerful Basic
IKA Eurostar StirrerSPEC
IKA Eurostar StirrerDetails
IKA Eurostar StirrerPacking list
- SKU
- NB005533
Introduction
Basic Eurostar mixer for high viscosity media.
- Microprocessor is used to ensure constant speed operation
- No need to change gears through gears, infinitely variable speed regulation
- Compact design
- Silent operation
- Safety loops
- Overload protection
- Penetrating impellers
- Smooth start-up for enhanced safety
- Simulated recording of speed parameters
Parameters
Maximum stirring capacity (H2O) | 40 l |
Motor input power | 130 W |
Motor output power | 110 W |
Rotational speed display | scale |
Speed range | 50 -2000 rpm |
Maximum viscosity | 50000 mPas |
Maximum output power of the stirring shaft | 105 W |
Continuous operation time is allowed | 100 % |
Maximum torque of the stirring shaft | 60 Ncm |
Maximum shaft torque (overload) at 60 rpm | 60 Ncm |
At 100 rpm, the maximum torque of the mixing shaft | 60 Ncm |
At 1000 rpm, the maximum torque of the stirring shaft | 60 Ncm |
Rotational speed control | Stepless |
The impeller is fixed | Rotary chuck |
The minimum diameter of the rotor chuck clamping range | 0.5 mm |
The rotor head clamps the maximum diameter | 10 mm |
Hollow shaft, inner diameter | 11 mm |
Hollow shaft (stop-state can be inserted) | be |
Bracket fixation | Bracket?? Extension arm |
Extension arm diameter | 16 mm |
Extend the arm length | 200 mm |
Torque display | No |
Rated torque | 0.6 Nm |
Dimensions | 80 x 253 x 190 mm |
weight | 3.8 kg |
Allowable ambient temperature | 5 - 40 °C |
Relative Humidity is allowed | 80 % |
DIN EN 60529 protection method | IP 42 |
RS 232 interface | No |
Analog output | be |
Voltage | 230 / 115 / 100 V |
frequency | 50/60 Hz |
Instrument input power | 130 W |
