Germany IKA Stirrer Eurostar, powerful control type -visc Max. Capacity of stirring 40 liters

The German IKA Stirrer Eurostar is a powerful control-visc, suitable for high viscosity media, with a Max. stirring Capacity of 40 liters and a microprocessor to ensure constant speed operation.
Model：
Contact
Details SPEC

IKA visc StirrerSPEC

IKA visc StirrerDetails

IKA visc StirrerPacking list

SKU
NB005535
visc
Stirrer
Germany IKA Stirrer Eurostar, powerful control type -visc Max. Capacity of stirring 40 liters Picture

Introduction

Controlled Eurostar mixer for high viscosity media. In addition to the basic Eurostar mixer functions, it can also be connected to a PC to adjust and control and record speed, torque, etc. through labworldsoft® software

- Microprocessor is used to ensure constant speed operation

- No need to change gears through gears, infinitely variable speed regulation

- Compact design

- Silent operation

- Safety loops

- Overload protection

- Penetrating impellers

- Smooth start-up for enhanced safety

- Digital display of settings and actual speed

- Simulation interface to record speed and torque

- RS232 interface

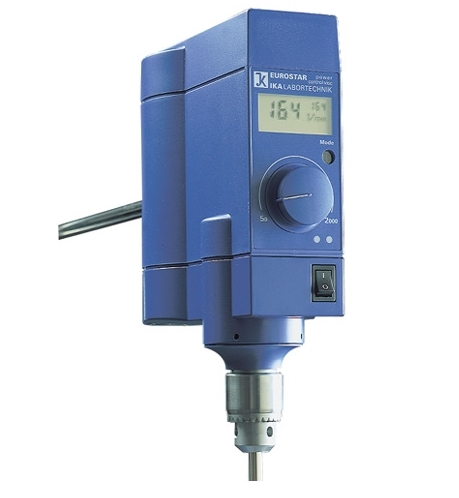

Illustration of the Eurostar of the IKA mixer in Germany

 Parameters

Maximum stirring capacity (H2O)

40 l

Motor input power

130 W

Motor output power

110 W

Rotational speed display

LCD

Speed range

50 -2000 rpm

Maximum viscosity

50000 mPas

Maximum output power of the stirring shaft

105 W

Continuous operation time is allowed

100 %

Maximum torque of the stirring shaft

60 Ncm

Maximum shaft torque (overload) at 60 rpm

60 Ncm

At 100 rpm, the maximum torque of the mixing shaft

60 Ncm

At 1000 rpm, the maximum torque of the stirring shaft

60 Ncm

Rotational speed control

Stepless

The impeller is fixed

Rotary chuck

The minimum diameter of the rotor chuck clamping range

0.5 mm

The rotor head clamps the maximum diameter

10 mm

Hollow shaft, inner diameter

11 mm

Hollow shaft (stop-state can be inserted)

be

Bracket fixation

Bracket?? Extension arm

Extension arm diameter

16 mm

Extend the arm length

200 mm

Torque display

be

Rated torque

0.6 Nm

Torque measurement

trend

Dimensions

80 x 253 x 190 mm

weight

3.8 kg

Allowable ambient temperature

5 - 40 °C

Relative Humidity is allowed

80 %

DIN EN 60529 protection method

IP 42

RS 232 interface

be

Analog output

be

Voltage

230 / 115 / 100 V

frequency

50/60 Hz

Instrument input power

130 W
